#0 SELF-PIERCING GROMMET and WASHER BRASS (SPGW0)

Stimpson’s brass #0 self-piercing grommet and washers pierce the material and set the grommet in one single action. Manufactured from a heavier gauge brass and available in three finishes, the #0 self-piercing grommet features a hole size of 1/4", a length under flange of .165”, and a metal thickness of .015”. The corresponding washer has an inside diameter of .337”, an outside diameter of .575”, and a metal thickness of .011”. Stimpson's 405 Bench Press easily set #0 self-piercing grommets and washers by pinching the material between the barrel of the grommet and the flat edge of the washer and then cutting a hole in the material in one action.

• Grommet (inches):
• Hole Size: 1/4"
• Flange Diameter: .550"
• Length Under Flange: .165"
• Metal Thickness: .015"
• Washer (inches):
• Inside Diameter: .337"
• Outside Diameter: .575"
• Metal Thickness: .011"

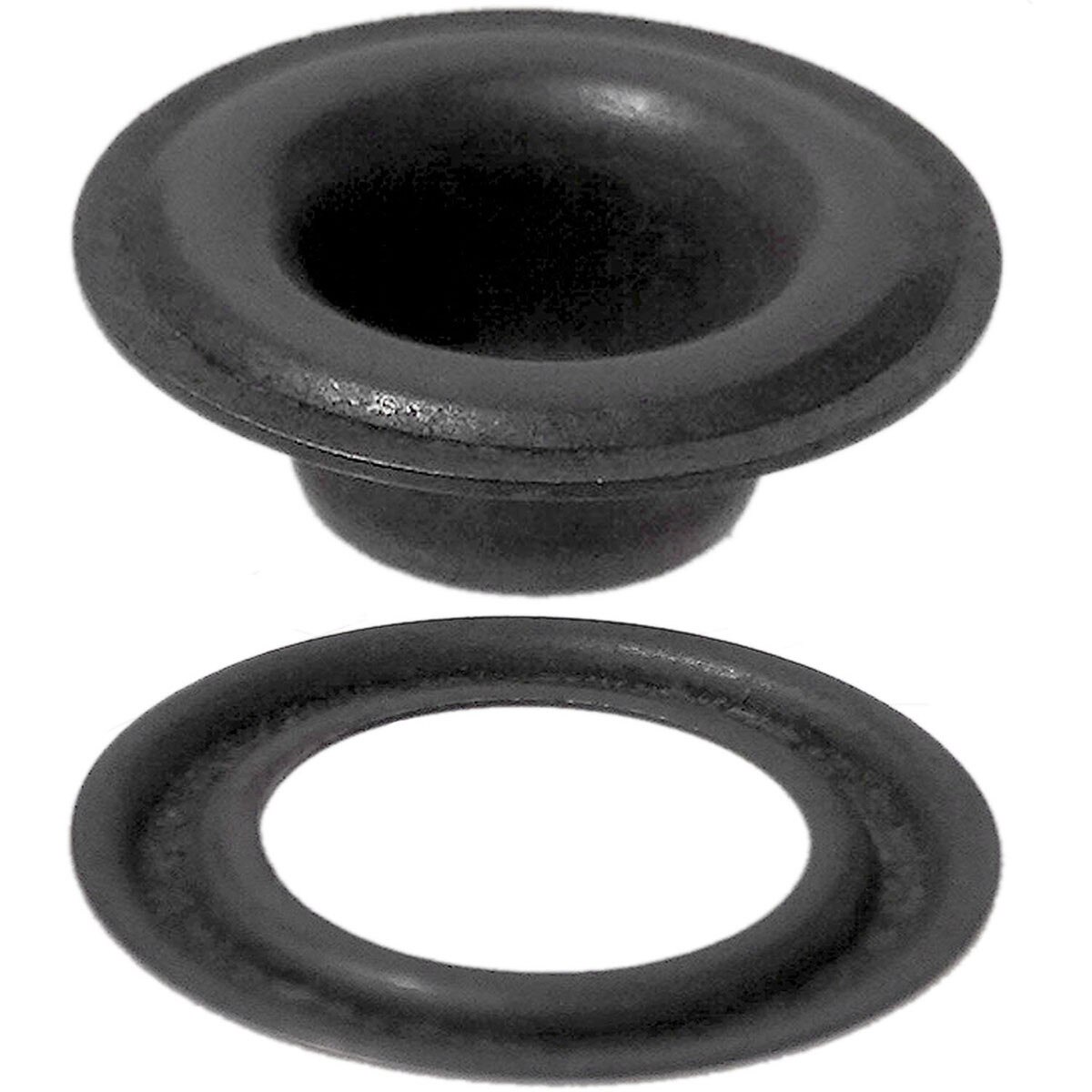

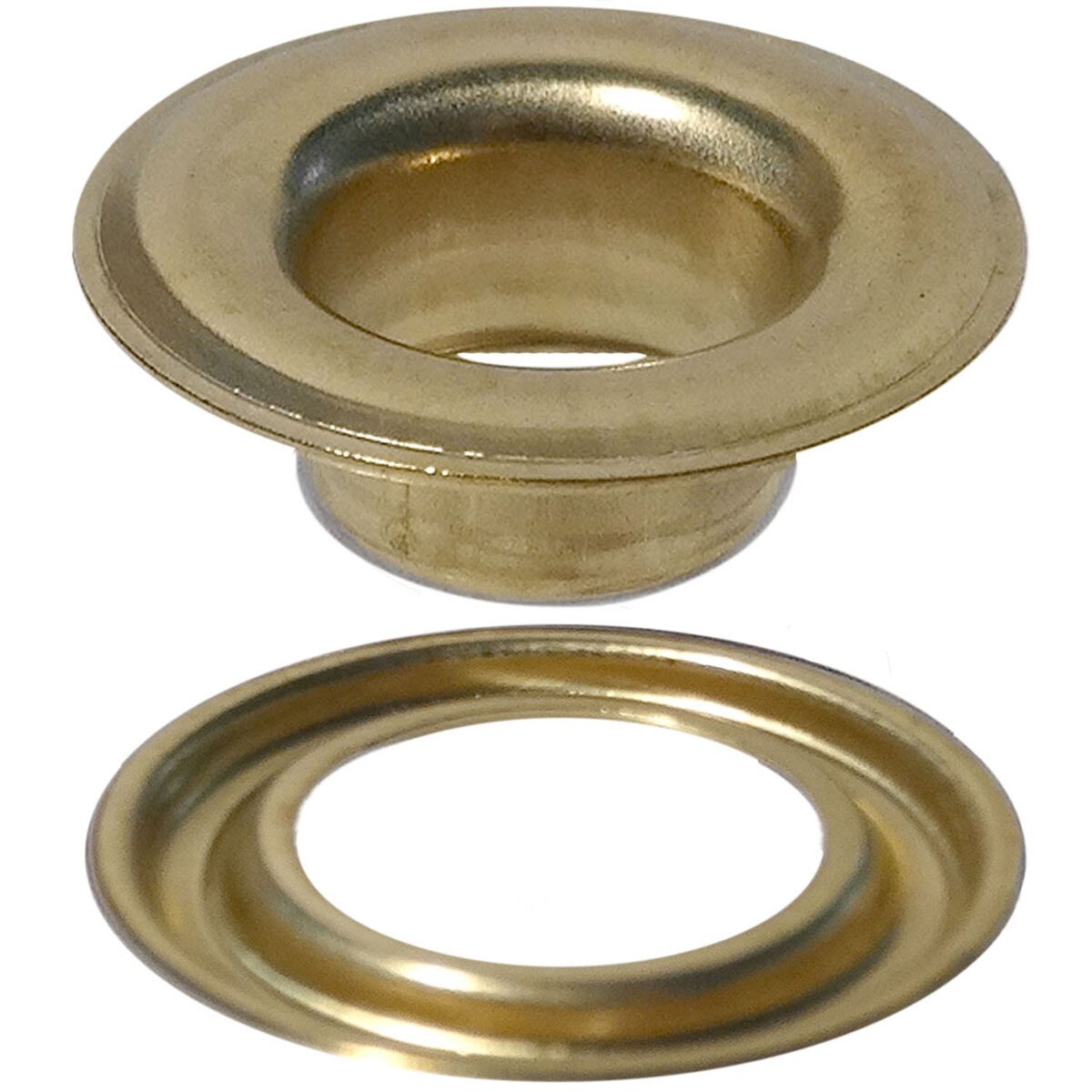

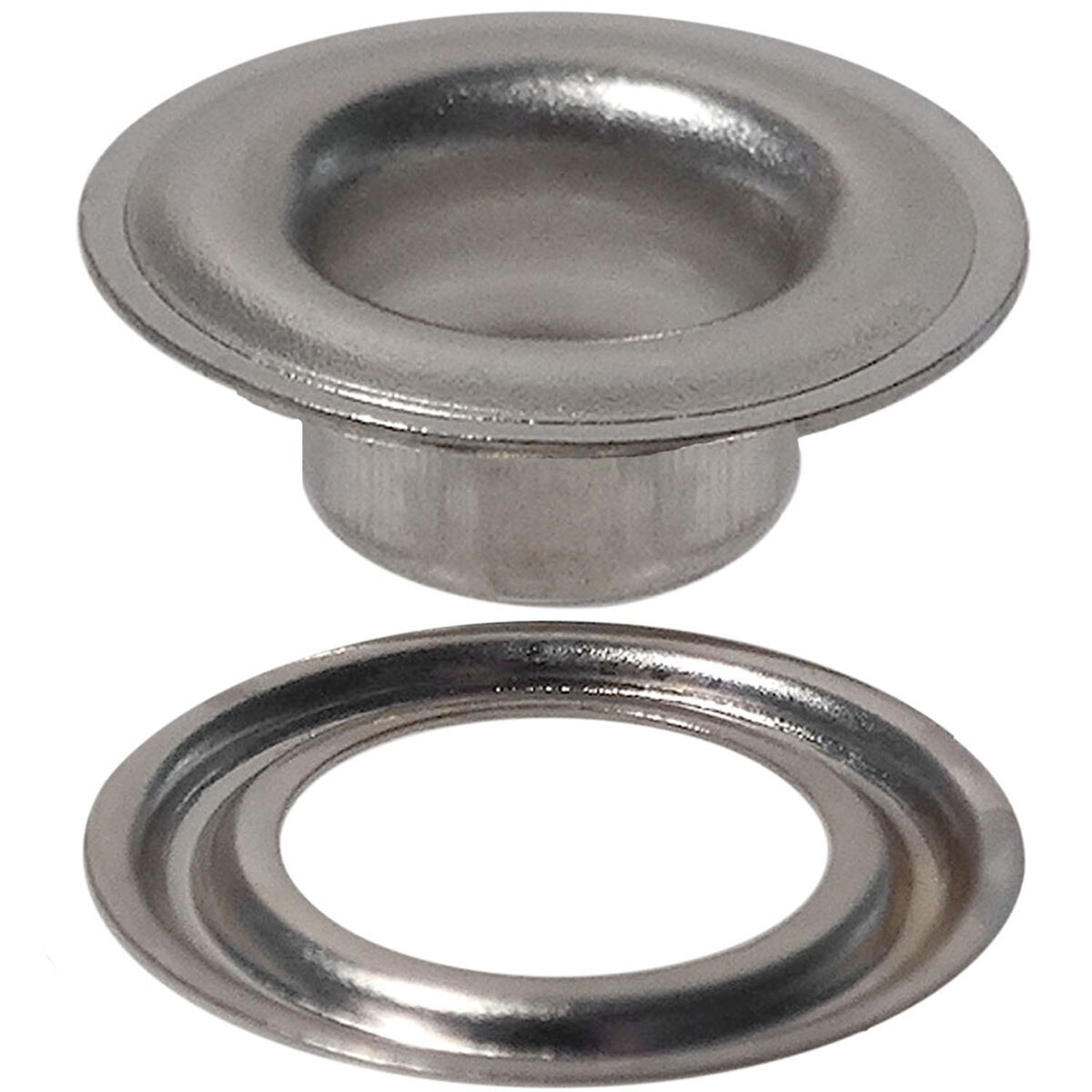

• Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
• Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
