405 Machine Tools to Set #0 Self-Piercing Grommet and Washer

SKU: SPGW0TSET
$77.00
(0)No Reviews yet

Stimpson’s #0 self-piercing grommet die combines a traditional two-step setting process, consisting of cutting a hole and separately setting a grommet into one simple action. The self-piercing #0 die set conveniently and quickly punches a hole in the material hole and sets the #0 self-piercing grommet and washer in one single action, saving you time and money. Stimpson's 405/479 presses easily set #0 self-piercing grommets and washers by pinching the material between the barrel of the grommet and the flat edge of the washer, and then setting the grommet into the material in one action. The dies are easily swapped out to accommodate different size self-piercing grommets in the Stimpson 405 press ensuring smooth and efficient production.

  • Material: Tool Steel

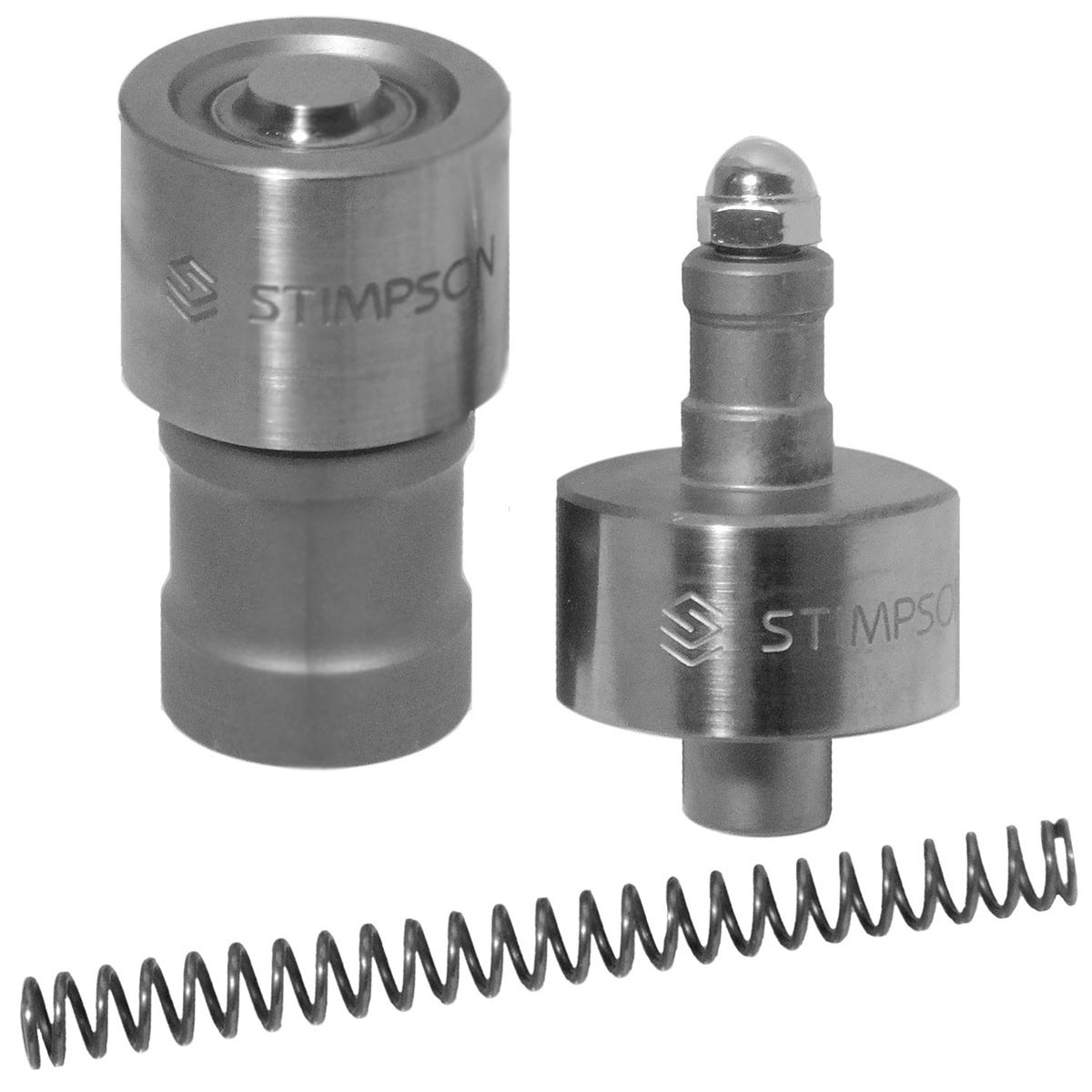

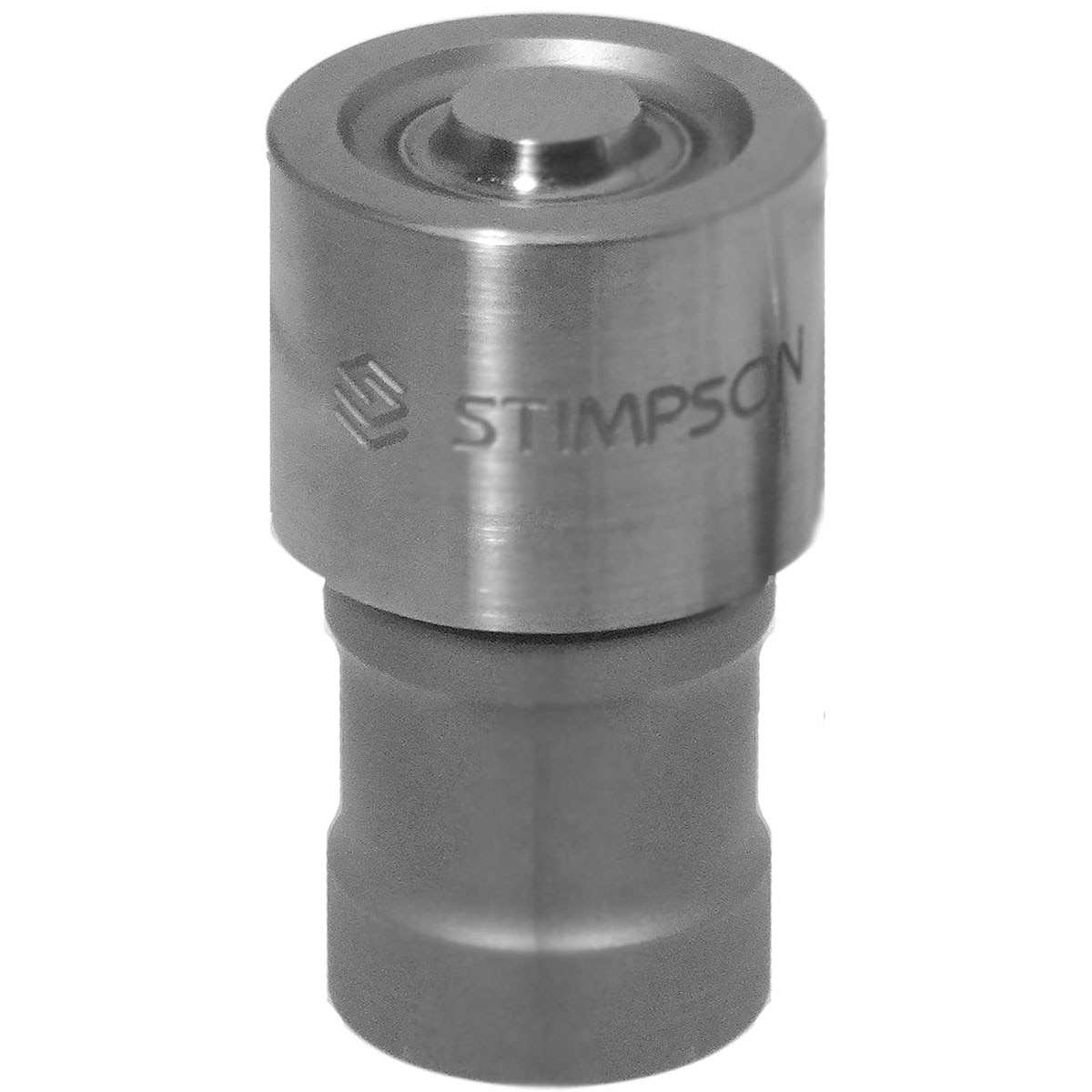

  • Machine Tool Set: (1) Top and (1) Bottom Die Insert for #0 Self-Piercing Grommets and Washers ONLY
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
  • Technical Note: Intended for use in Stimpson 405 machines. The Stimpson grommet die set must match the grommet type and size you are using. For example, Stimpson’s #0 self-piercing grommets and washers are only compatible with the Stimpson #0 die tool set.
