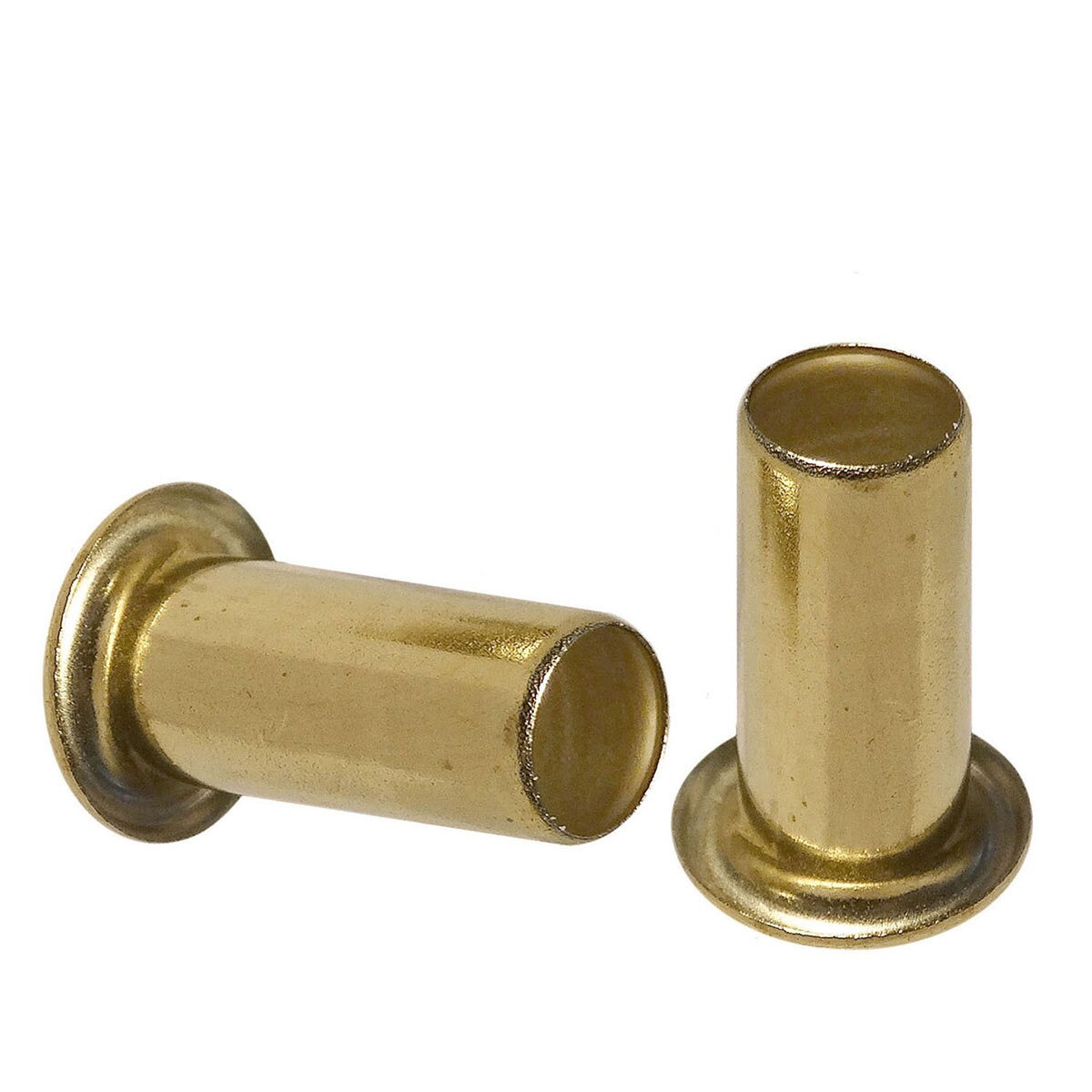

GS 5-12 Brass Eyelets

$51.19 to $639.75
(0) No Reviews yet


Stimpson’s GS® 5-12 Brass Eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 5-12 eyelet is designed with an overall length of 0.405”, a hole size of 0.127”, and its metal thickness is 0.01”.  The flange diameter of this eyelet is 0.245”, with an outside diameter of 0.152”, and a length under flange of 0.375”. Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.

  • Material: Brass
  • Flange Diameter: 0.245”Outside Diameter: 0.152”
  • Length Under Flange: 0.375”
  • Length Overall: 0.405”
  • Hole Size: 0.127”
  • Metal Thickness: 0.01”
  • Nominal Hole Size: 5/32”
  • Industries: Electrical, Apparel, Industrial, Marine, Automotive, and more

Click here for blueprint.
