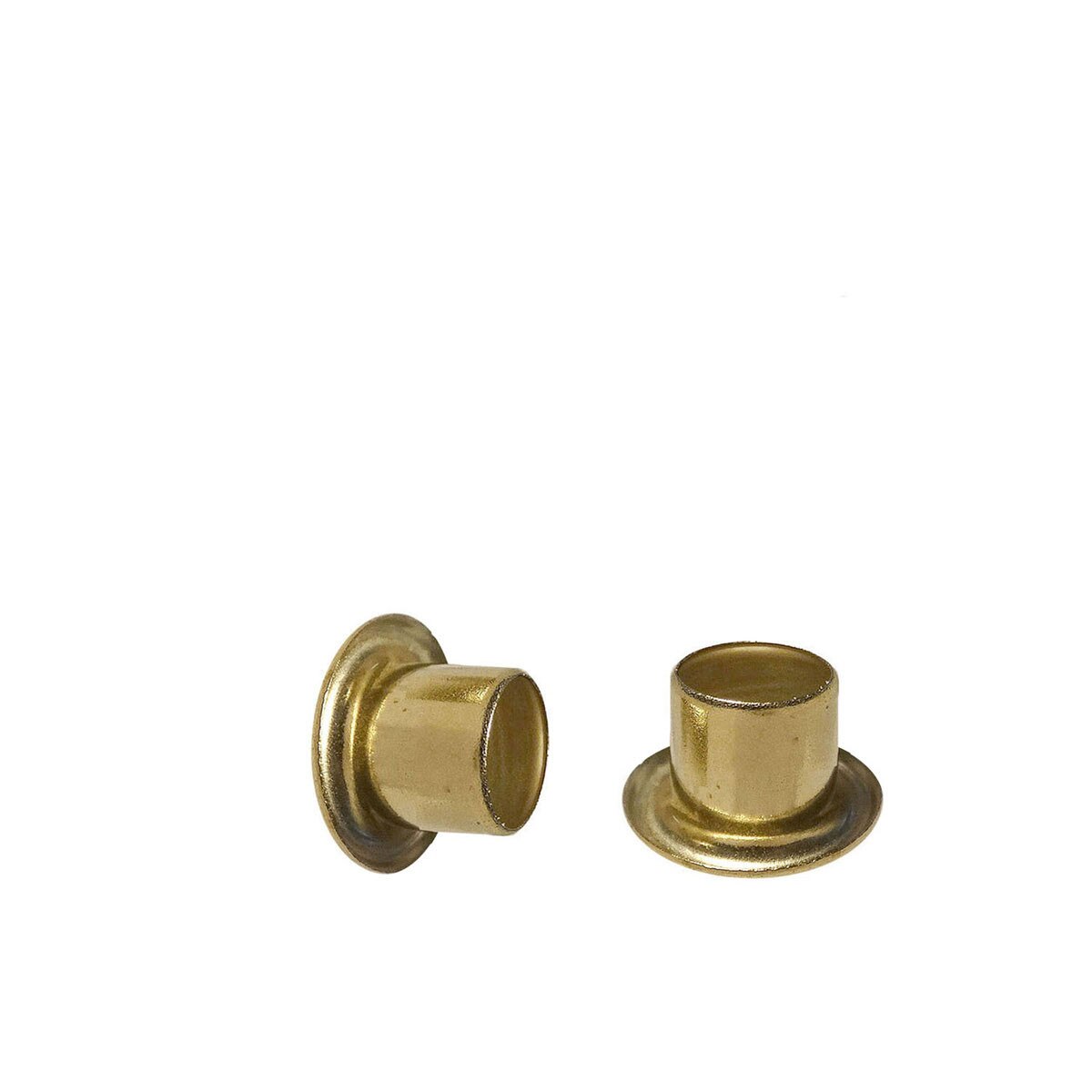

GS 3-3 Brass Eyelets

SKU: X-GS33B
$34.44 to $374.00
(0) No Reviews yet

Details

Stimpson’s GS® 3-3 brass eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 3-3 eyelet is designed with an overall length of 0.115”, a hole size of 0.069”, and its metal thickness is 0.009”.  The flange diameter of this eyelet is 0.15”, with an outside diameter of 0.089”, and a length under flange of 0.093”. Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.

  • Material: Brass
  • Flange Diameter: 0.15”
  • Outside Diameter: 0.089”
  • Length Under Flange: 0.093”
  • Length Overall: 0.115”
  • Hole Size: 0.069”
  • Metal Thickness: 0.009”
  • Nominal Hole Size: 3/32”
  • Industries: Electrical, Apparel, Industrial, Marine, Automotive, and more

Click here for blueprint.
