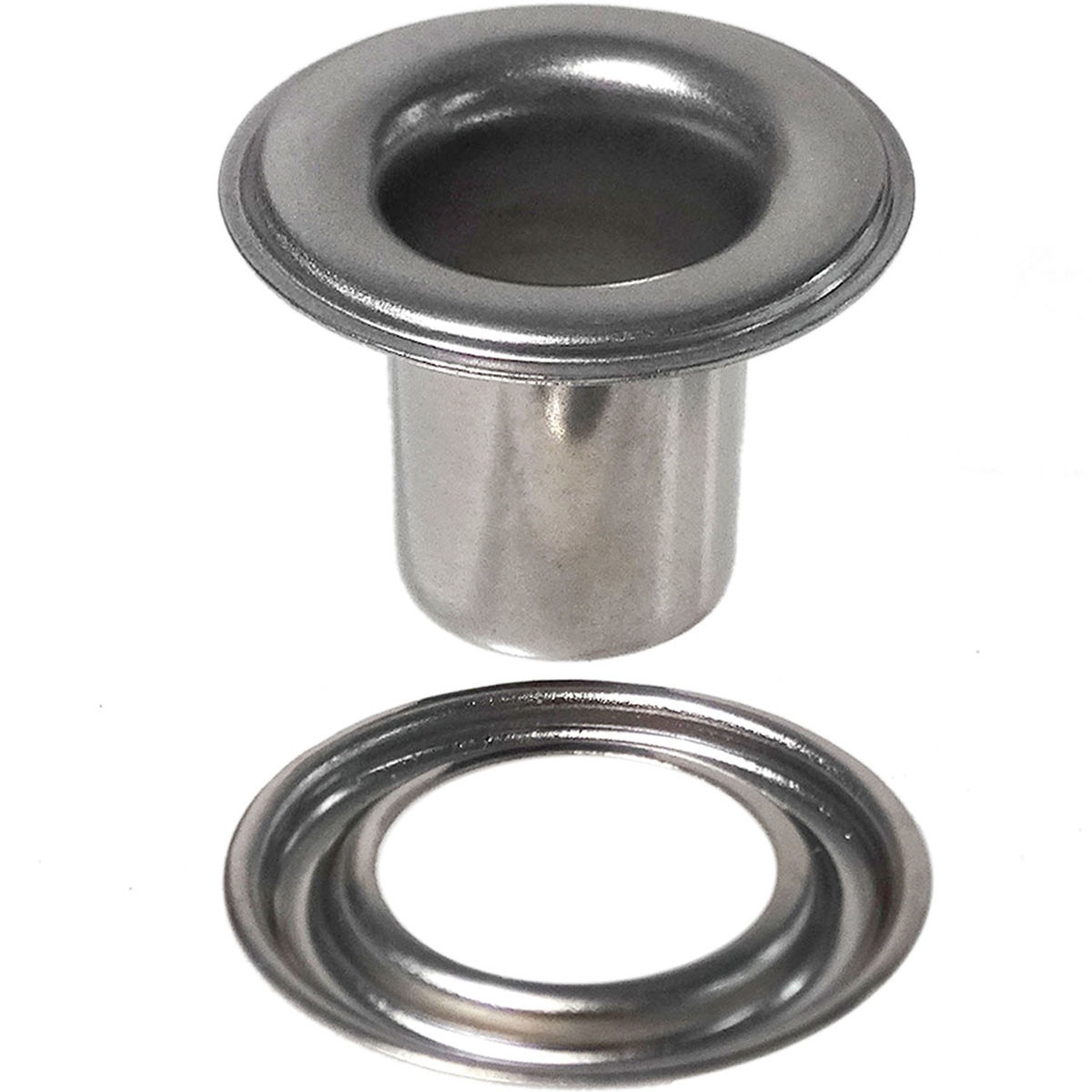

#2XL SELF-PIERCING GROM and WASHER STAINLESS STEEL 304 (ESPGW2XLSS)

SKU: X-ESPGW2XLSS
$74.64 to $981.64
(0)No Reviews yet

Details

Stimpson’s E-Series light gauge #2XL stainless steel self-piercing grommet and washers pierce the material and set the grommet in one single action. The E-Series #2XL features a longer neck for thicker materials and manufactured from high-quality stainless steel. This self-piercing grommet features a hole size of 3/8", a length under flange of .500”, and a metal thickness of .012”. The corresponding washer has an inside diameter of .437”, an outside diameter of .770”, and a metal thickness of .010”. Stimpson's 405 Bench Press easily set E-Series #2XL self-piercing grommets and washers by pinching the material between the barrel of the grommet and the flat edge of the washer and then cutting a hole in the material in one action.

  • Material: 304 Stainless Steel
  • Grommet (inches):
    • Hole Size: 3/8"
    • Flange Diameter: .750"
    • Length Under Flange: .500"
    • Metal Thickness: .012"
  • Washer (inches):
    • Inside Diameter: .437"
    • Outside Diameter: .770"
    • Metal Thickness: .010"
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
  • Technical Note: Setting your self-piercing grommet and washer is easy with Stimpson’s corresponding 405 Bench Press or the 405/479 tooling
