#2 SHEET METAL GROMMET and WASHER BRASS (2GW)
Details

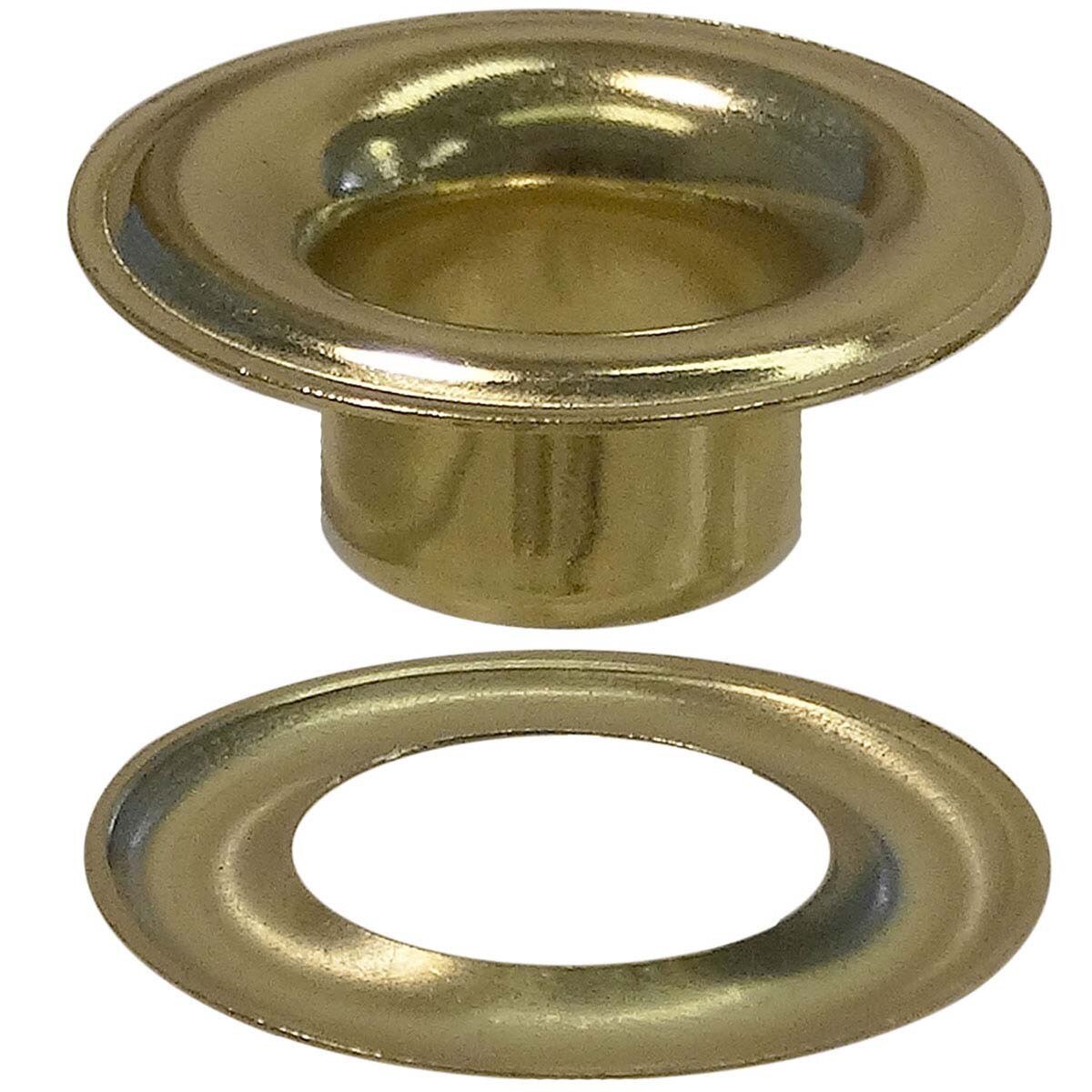

Stimpson’s #2 brass grommet and plain washer provide basic hole reinforcement and versatility for a wide variety of applications. Available in three finishes, the #2 grommet features a hole size of 3/8”, a length under flange of .215”, and a metal thickness of .013”. The inside diameter of the plain washer is .453”, with an outside diameter of .835”, and a metal thickness of .012”. This multipurpose grommet and washer combination can be used in a variety of materials including industrial fabrics, canvas, leather, signage, and heavy-duty vinyl tarps, as long as a hole has been pre-punched in the material. Manual, semi-automatic and fully-automatic grommet setting machines easily set #2 grommets and plain washers ensuring installation runs smoothly and efficiently.
- Material: Brass
- Grommet (inches):
- Hole Size: 3/8”
- Flange Diameter: .815”
- Length Under Flange: .215”
- Metal Thickness: .013”
- Washer (inches):
- Inside Diameter: .453”
- Outside Diameter: .835”
- Metal Thickness: .012”

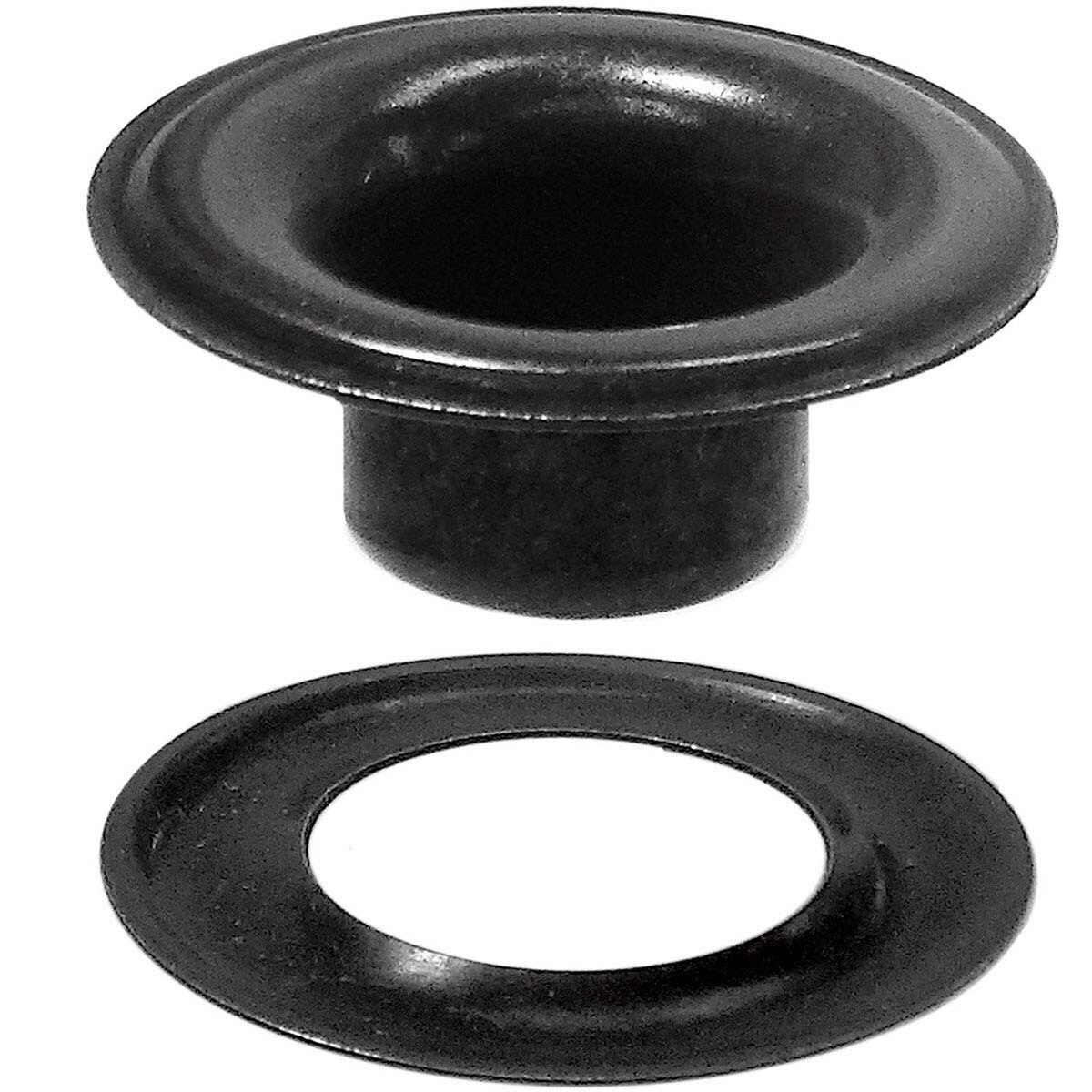

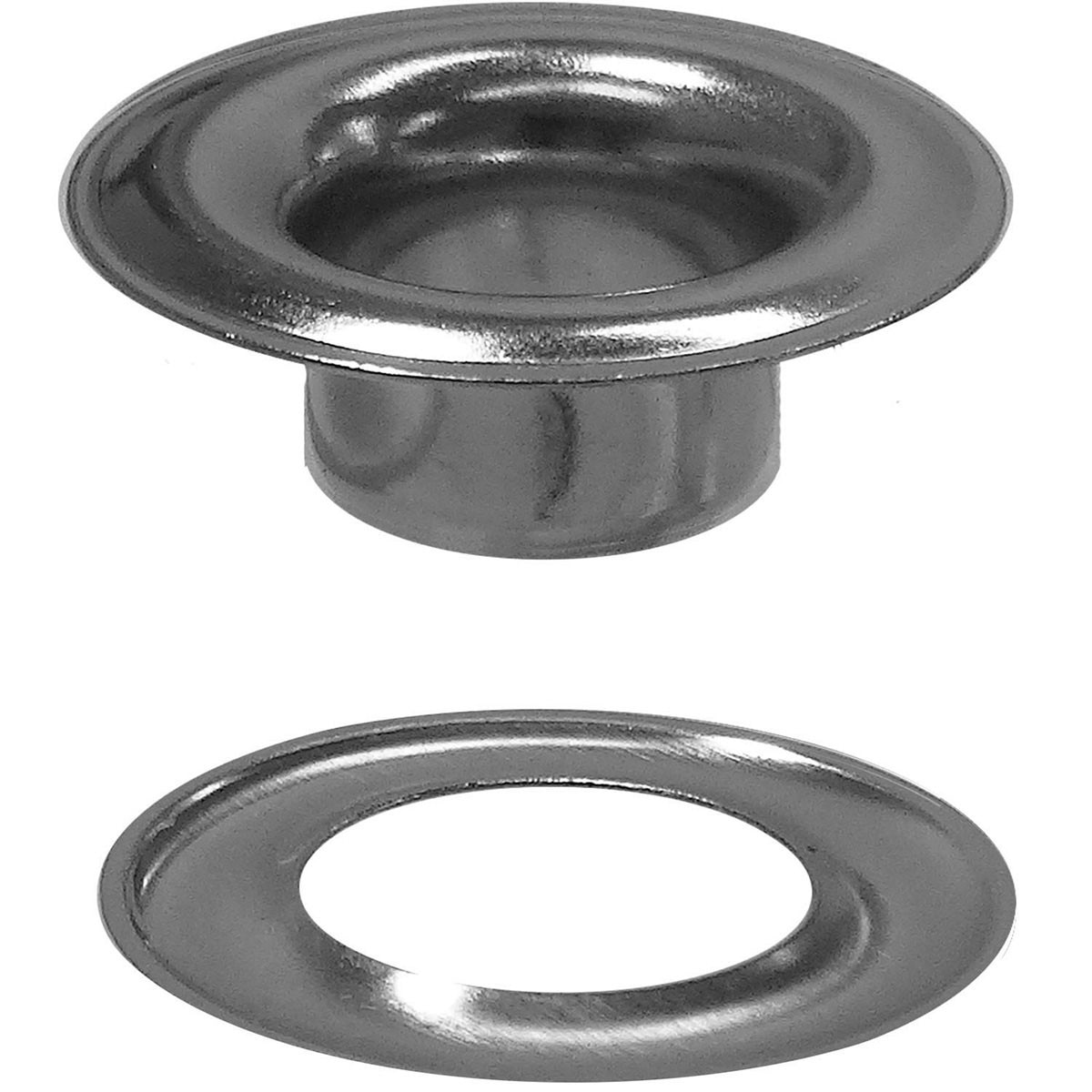

- Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
- Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
