#2 SELF-PIERCING GROMMET and WASHER STAINLESS STEEL 304 (ESPGW2SS)

SKU: X-ESPGW2SS
$47.25 to $820.00
(0) No Reviews yet

Details

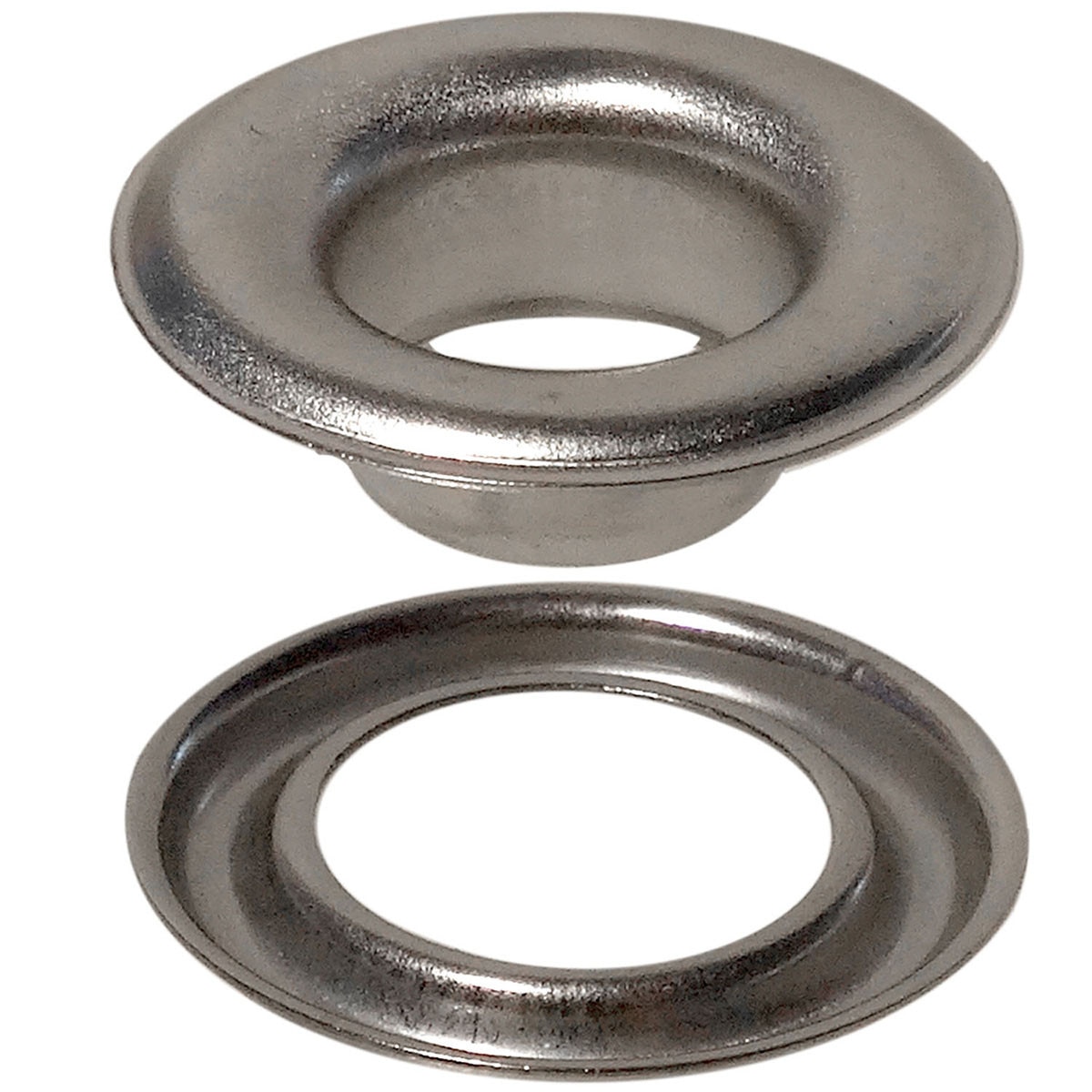

Stimpson’s E-Series stainless steel #2 self-piercing grommet and washers pierce the material and set the grommet in one single action. The stainless steel #2 self-piercing grommet features a hole size of 3/8", a length under flange of .200”, and a metal thickness of .010”. The corresponding washer has an inside diameter of .437”, an outside diameter of .770”, and a metal thickness of .010”. Stimpson's 405 Bench Press easily set E-Series #2 self-piercing grommets and washers by pinching the material between the barrel of the grommet and the flat edge of the washer and then cutting a hole in the material in one action.

  • Material: 304 Stainless Steel
  • Grommet (inches):
    • Hole Size: 3/8"
    • Flange Diameter: .750"
    • Length Under Flange: .200"
    • Metal Thickness: .010"
  • Washer (inches):
    • Inside Diameter: .437"
    • Outside Diameter: .770"
    • Metal Thickness: .010"
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
  • Technical Note: Setting your stainless steel self-piercing grommet and washer is easy with the corresponding 405 Bench Press
