#2 SELF-PIERCING GROMMET and WASHER BRASS (SPGW2)

Stimpson’s brass #2 self-piercing grommet and washers pierce the material and set the grommet in one single action. Manufactured from a heavier gauge brass and available in three finishes, the #2 self-piercing grommet features a hole size of 3/8", a length under flange of .200”, and a metal thickness of .015”. The corresponding washer has an inside diameter of .437”, an outside diameter of .770”, and a metal thickness of .011”. Stimpson's 405 Bench Press easily set #2 self-piercing grommets and washers by pinching the material between the barrel of the grommet and the flat edge of the washer and then cutting a hole in the material in one action.

• Grommet (inches):
• Hole Size: 3/8"
• Flange Diameter: .750"
• Length Under Flange: .200"
• Metal Thickness: .015"
• Washer (inches):
• Inside Diameter: .437"
• Outside Diameter: .770"
• Metal Thickness: .011"

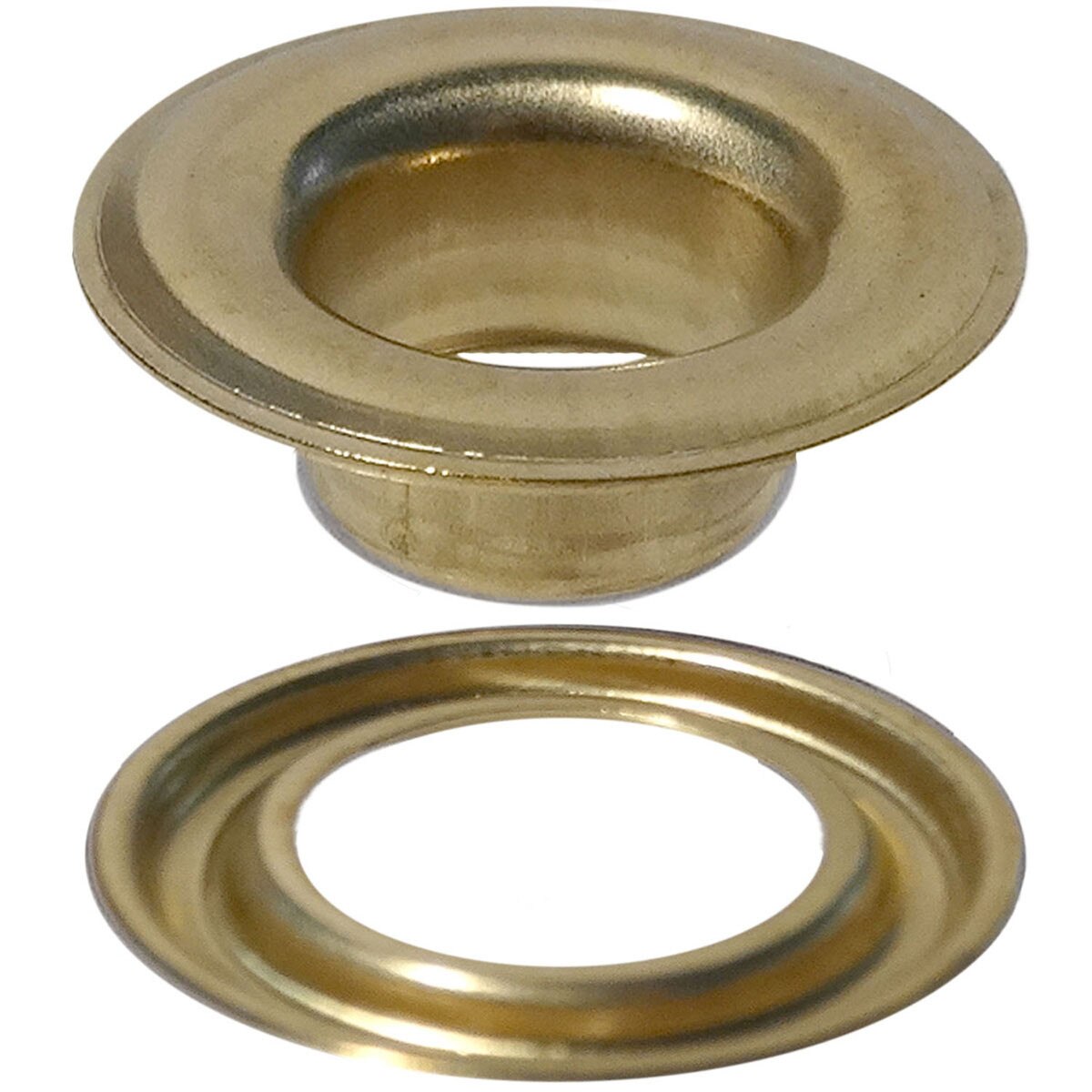

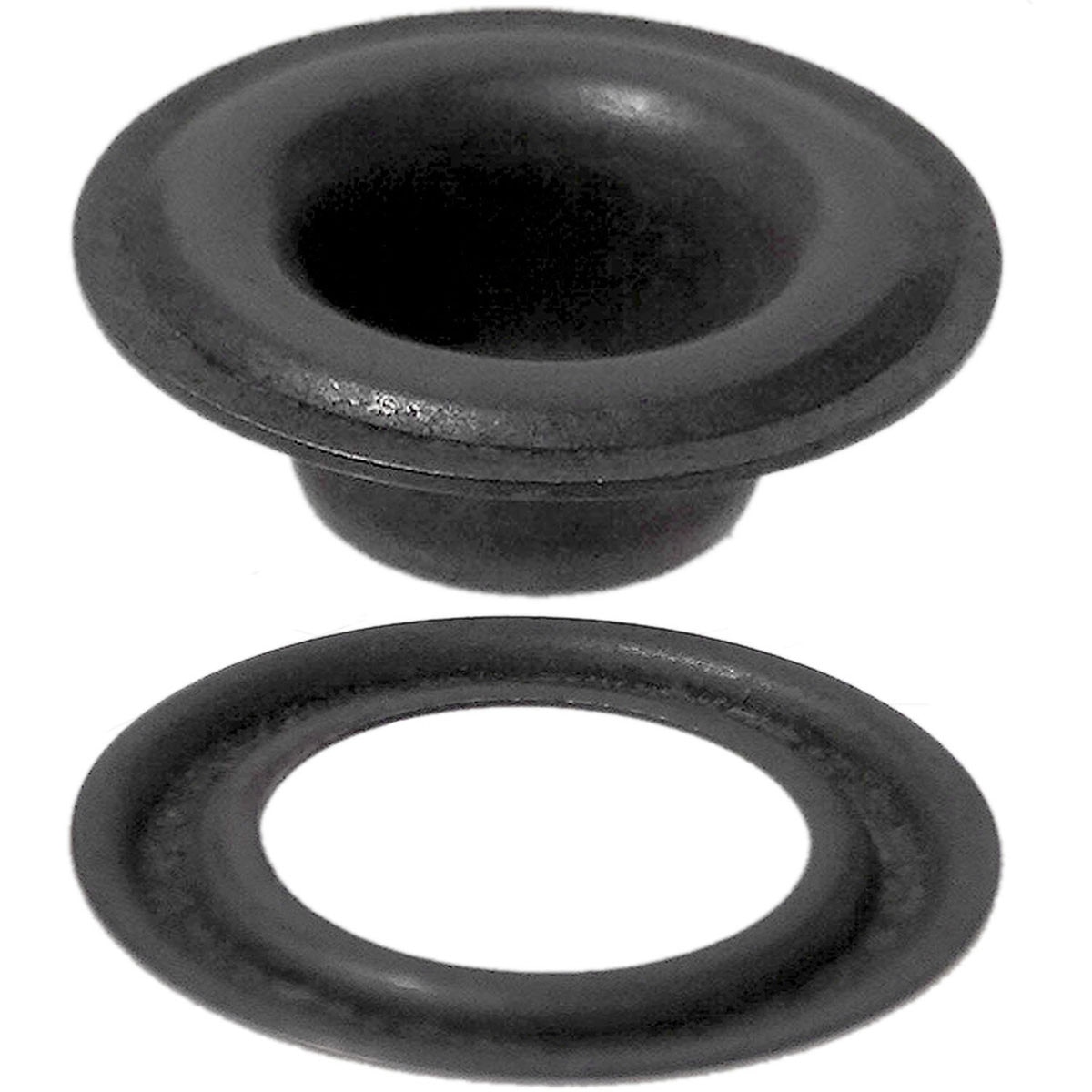

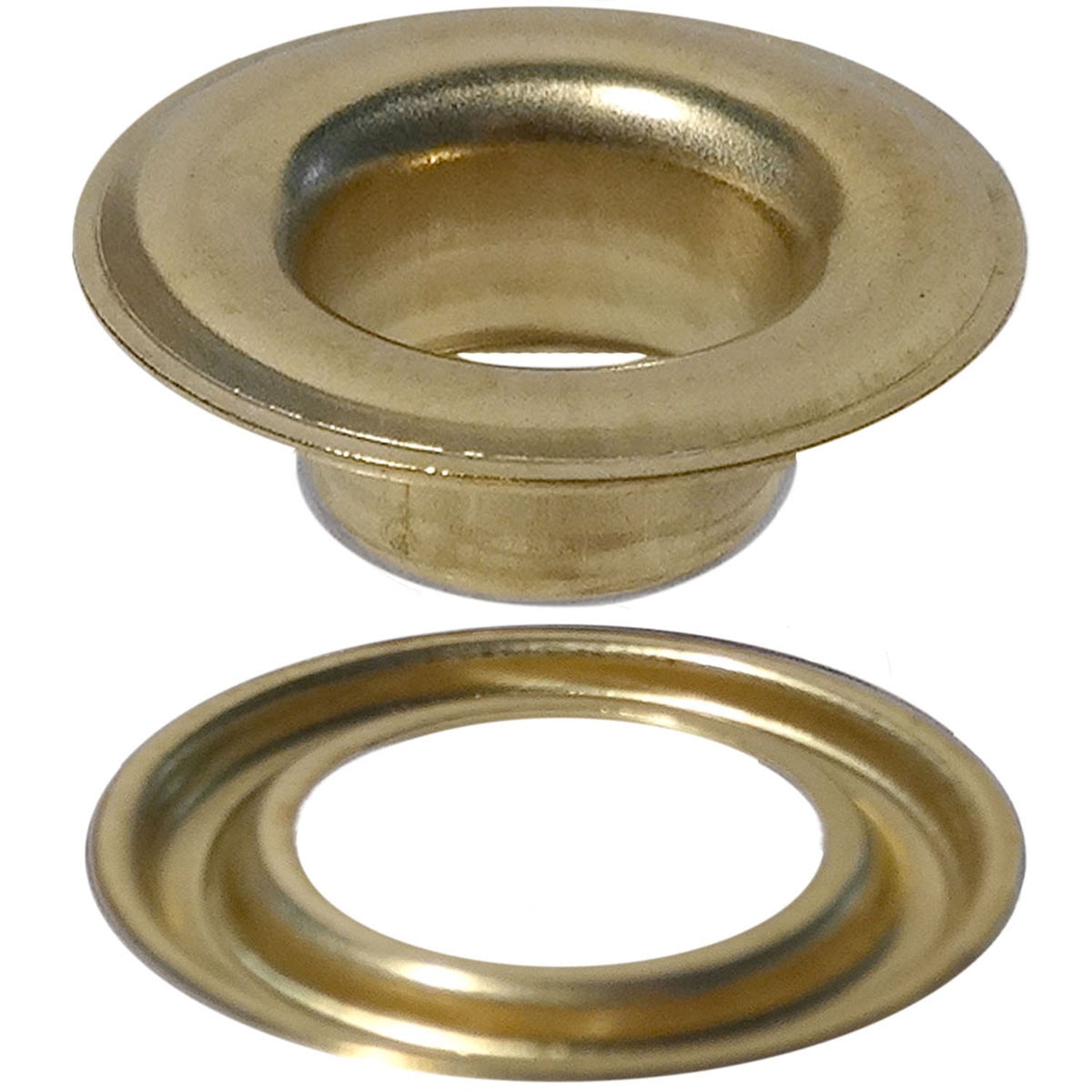

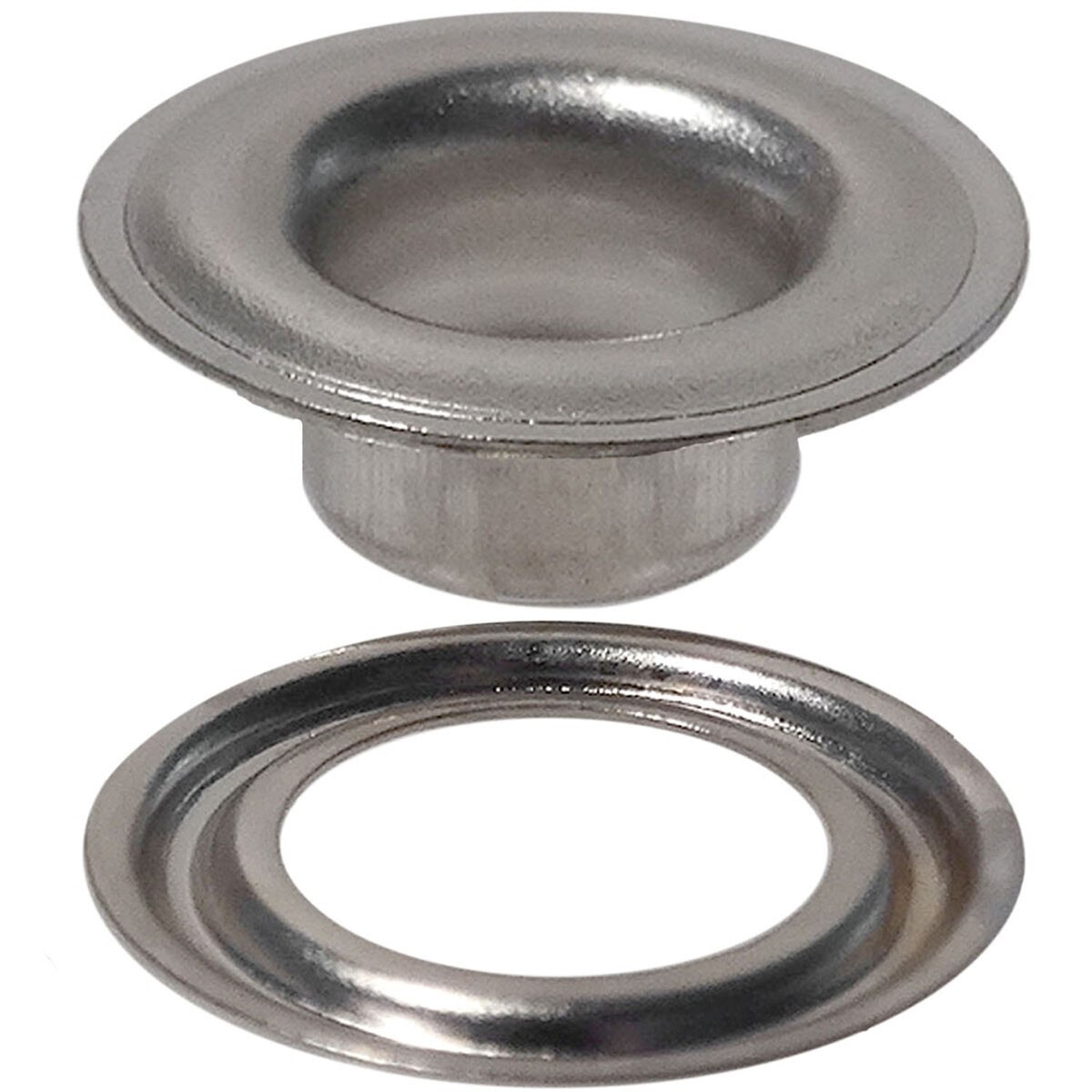

• Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
• Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
