#1 SELF-PIERCING GROMMET and WASHER BRASS (SPGW1)

SKU: X-SPGW1B
$64.50 to $907.80
(0) No Reviews yet

Details

Stimpson’s brass #1 self-piercing grommet and washers pierce the material and set the grommet in one single action. Manufactured from a heavier gauge brass and available in three finishes, the #1 self-piercing grommet features a hole size of 5/16", a length under flange of .630”, and a metal thickness of .015”. The corresponding washer has an inside diameter of .400”, an outside diameter of .655”, and a metal thickness of .011”. Stimpson's 405 Bench Press easily set #1 self-piercing grommets and washers by pinching the material between the barrel of the grommet and the flat edge of the washer and then cutting a hole in the material in one action.

  • Grommet (inches):
    • Hole Size: 5/16"
    • Flange Diameter: .630"
    • Length Under Flange: .200"
    • Metal Thickness: .015"
  • Washer (inches):
    • Inside Diameter: .400"
    • Outside Diameter: .655"
    • Metal Thickness: .011"

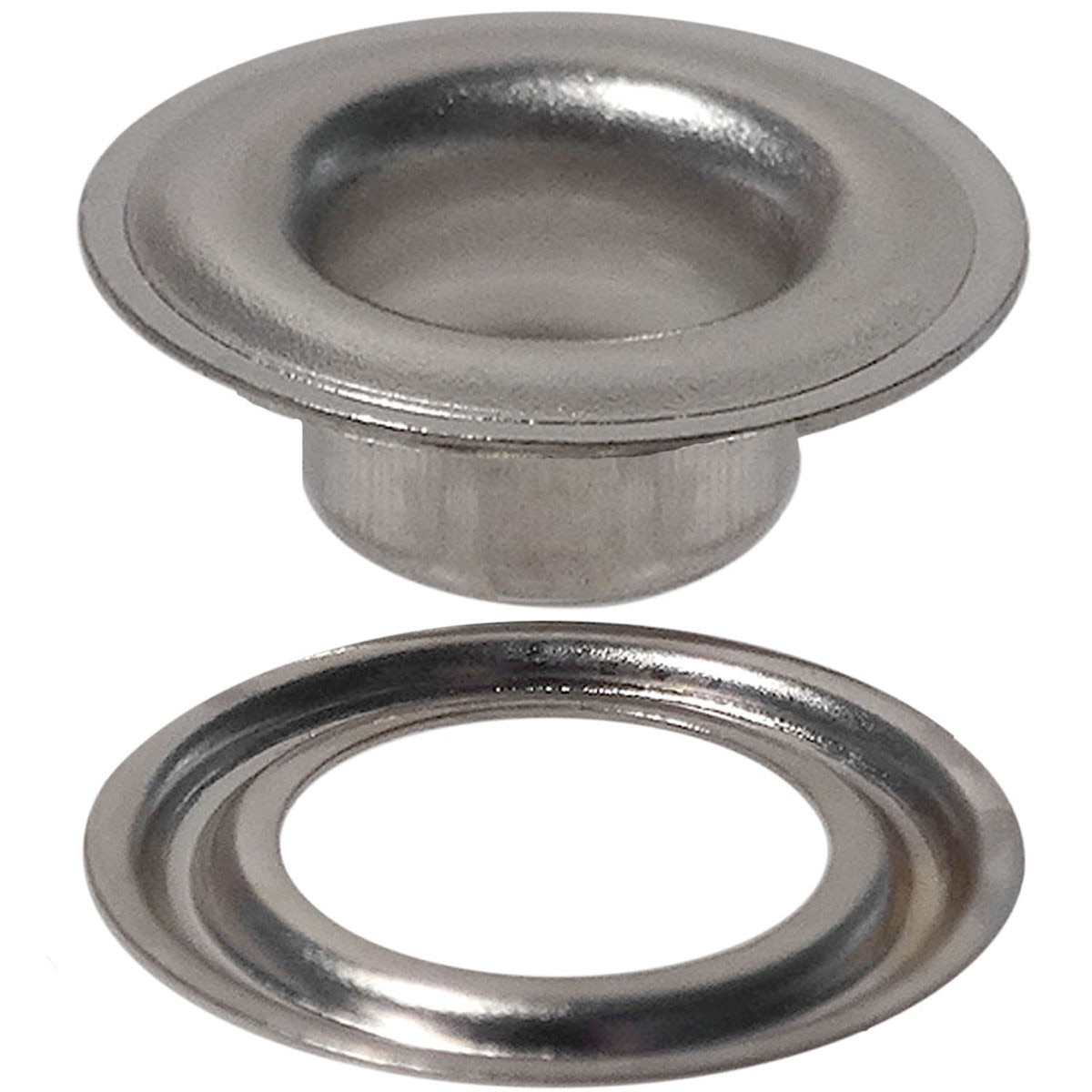

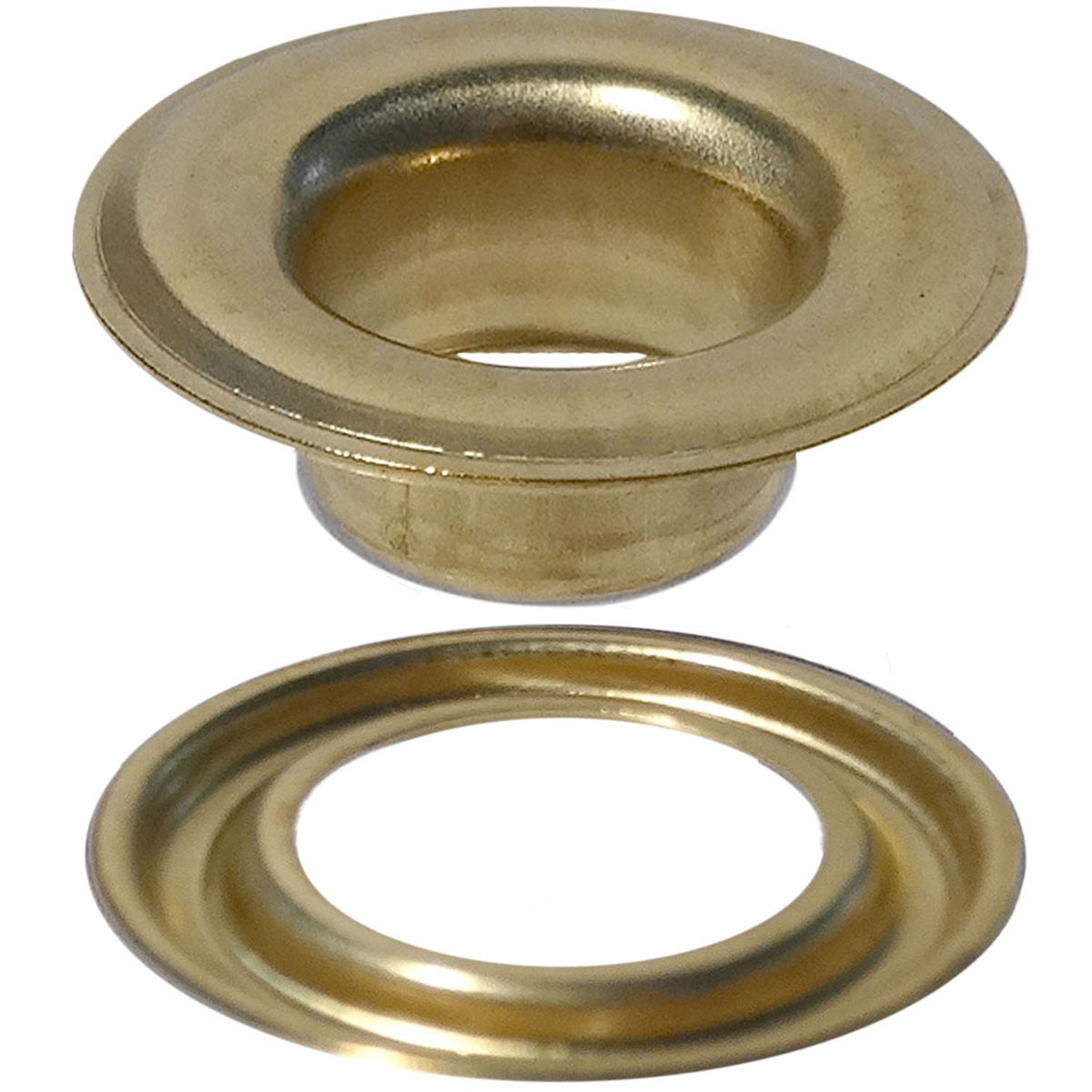

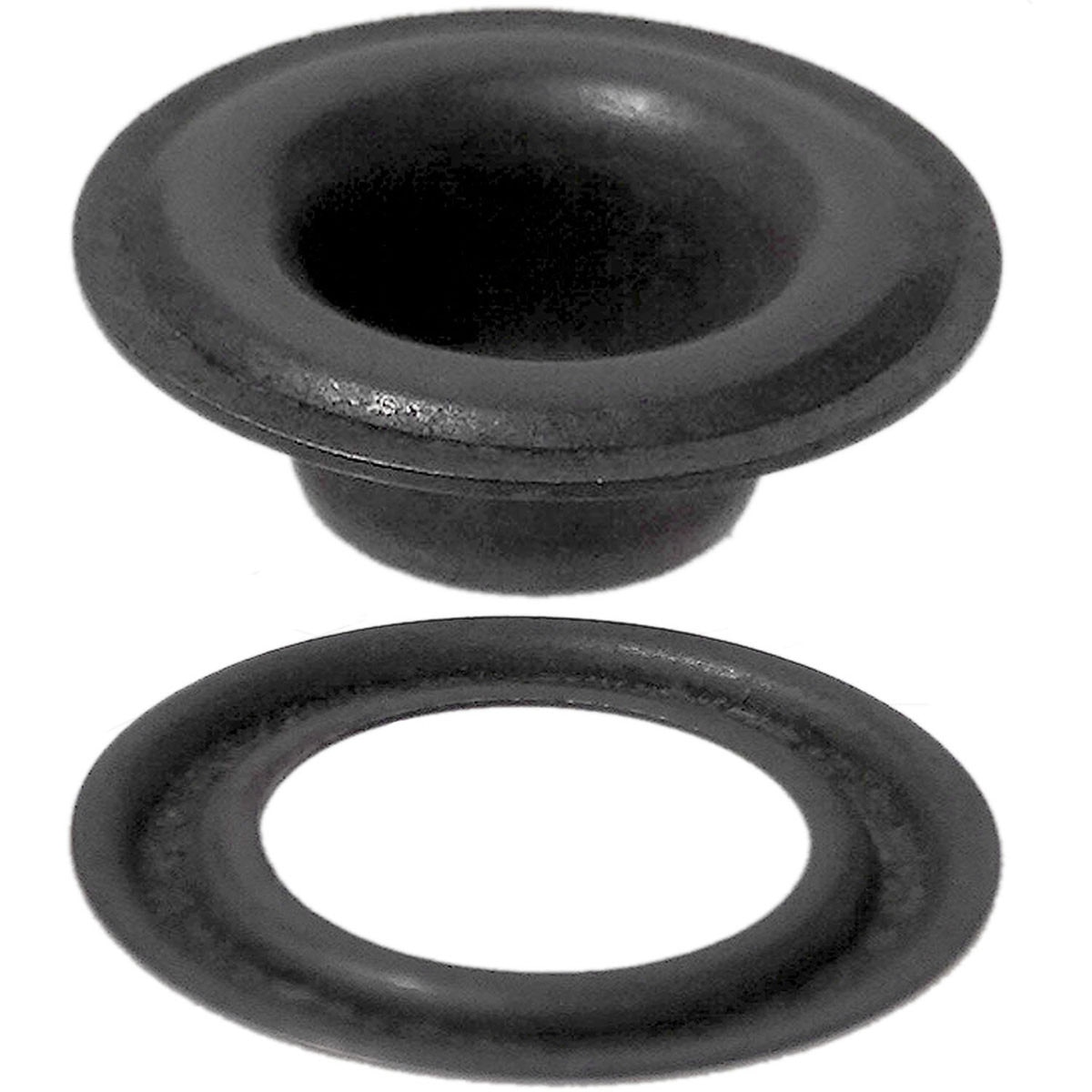

  • Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
