#1 E RRG & SW STAINLESS STEEL 304 (1RRGSWSS)
Details

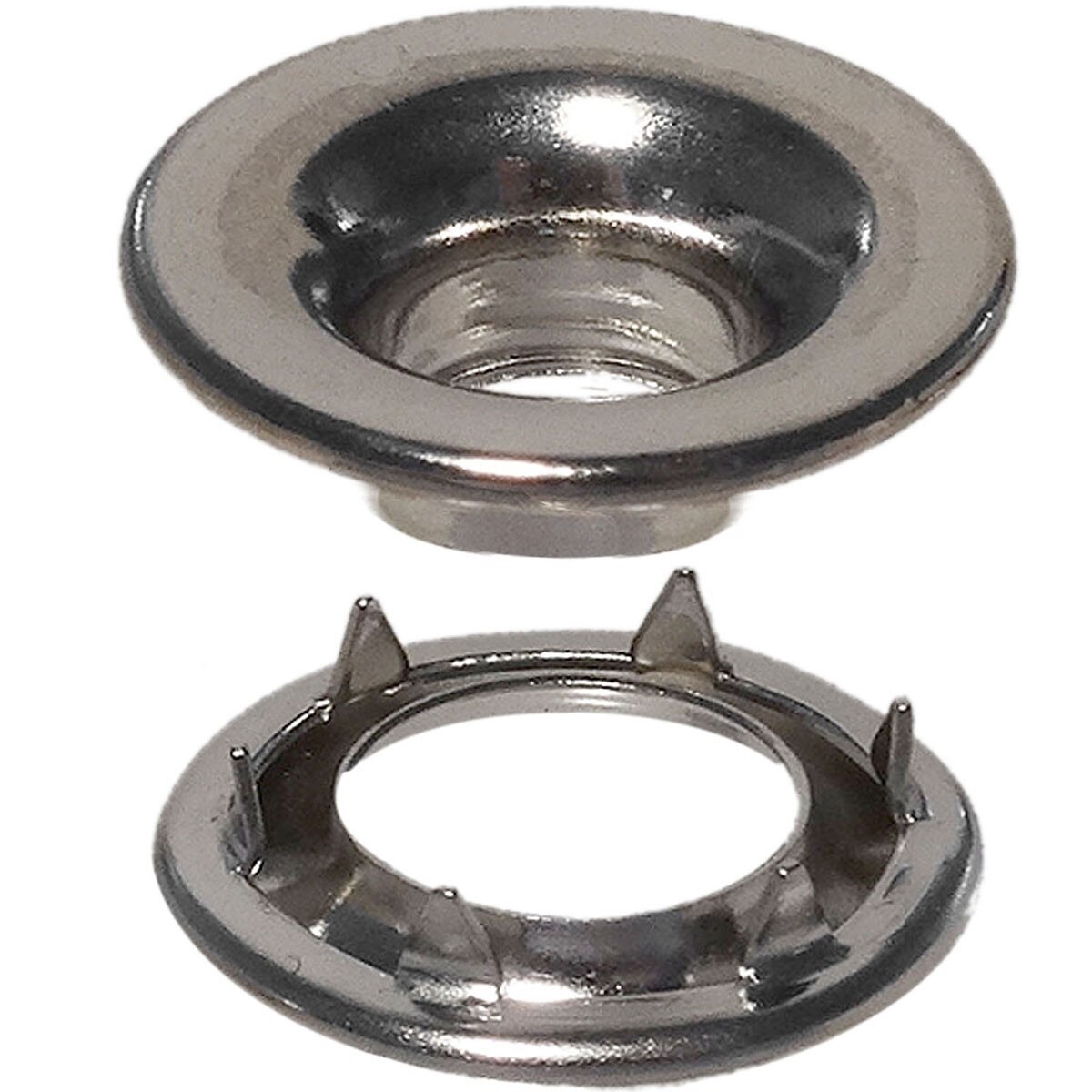

Stimpson’s E-Series light gauge #1 stainless steel rolled rim grommets and spur washers and self-piercing grommets and washers offer the best of both worlds, the corrosion resistance of stainless steel and the weight savings of a lighter gauge. The #1 rolled rim grommet features a hole size of 13/32”, a length under flange of .790”, and a metal thickness of .010”. The inside diameter of the spur washer is .455”, with an outside diameter of .790”, and a metal thickness of .010”. Stimpson’s #1 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. Stimpson E-Series rolled rim grommets and spur washers work well with a variety of knit, woven, and non-woven industrial fabrics as long as a hole has been pre-punched in the material. Manual, semi-automatic and fully-automatic grommet setting machines easily set E-Series #1 grommets and spur washers ensuring installation runs smoothly and efficiently.
- Material: 304 Stainless Steel
- Grommet (inches):
- Hole Size: 13/32"
- Flange Diameter: .790"
- Length Under Flange: .205"
- Metal Thickness: .010"
- Washer (inches):
- Inside Diameter: .455"
- Outside Diameter: .790"
- Metal Thickness: .010"
- Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
- Technical Note: Setting your #1 stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
