#00 SHEET METAL GROMMET and WASHER BRASS (00GW)

SKU: X-00GWB
$54.73 to $816.87
(0)No Reviews yet
Back

Stimpson’s #00 brass grommet and plain washer provide basic hole reinforcement and versatility for a wide variety of applications. Available in three finishes, the #00 grommet features a hole size of 3/16”, a length under flange of .135”, and a metal thickness of .009”. The inside diameter of the plain washer is .218” with an outside diameter of .460", and a metal thickness of .009”. This multipurpose grommet and washer combination can be used in a variety of materials including industrial fabrics, canvas, leather and heavy-duty vinyl tarps, as long as a hole has been pre-punched in the material. Manual, semi-automatic and fully-automatic grommet setting machines easily set #00 grommets and plain washers ensuring installation runs smoothly and efficiently.

  • Material: Brass
  • Grommet (inches):
    • Hole Size: 3/16"
    • Flange Diameter: .425"
    • Length Under Flange: .135"
    • Metal Thickness: .009"
  • Washer (inches):
    • Inside Diameter: .218"
    • Outside Diameter: .460"
    • Metal Thickness: .009"

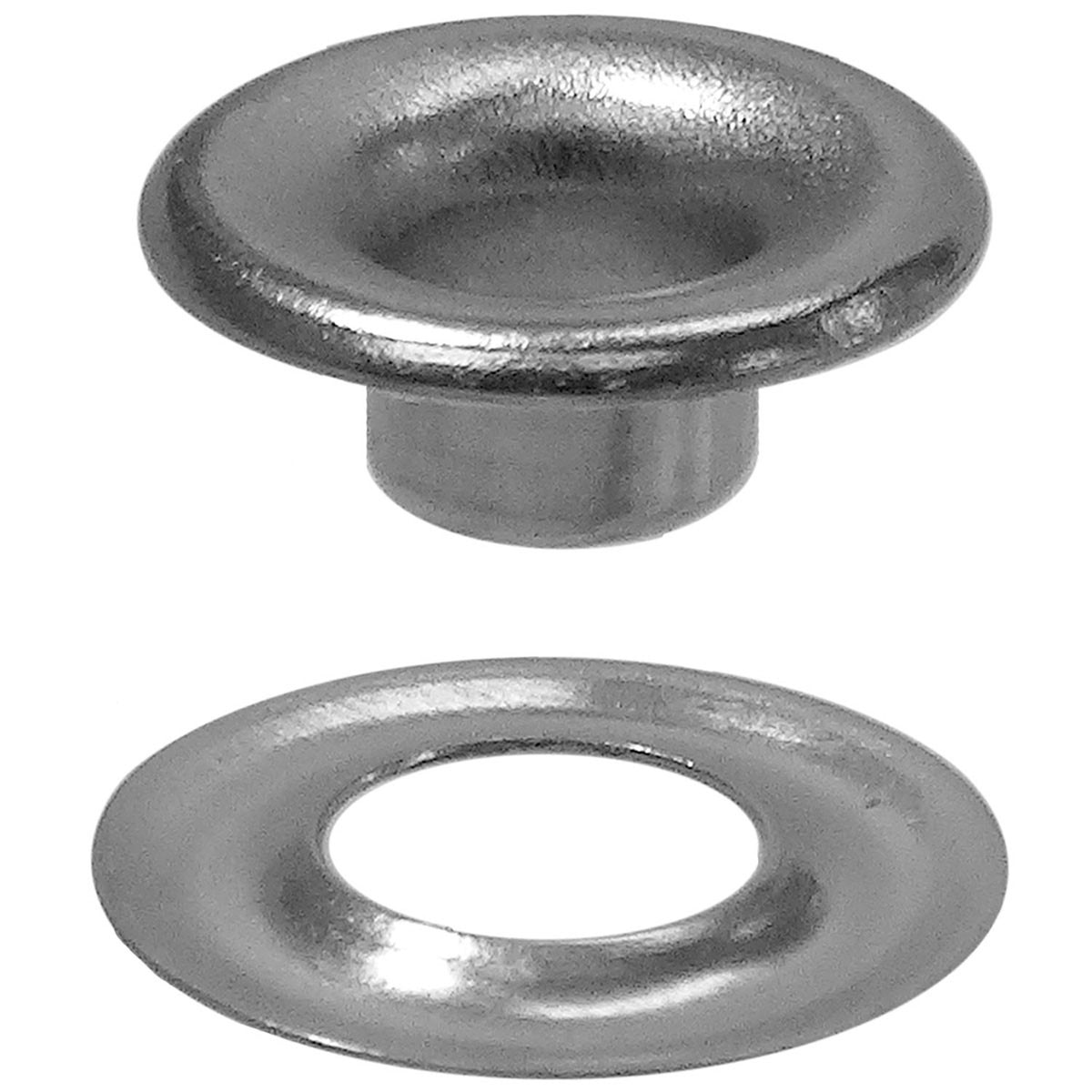

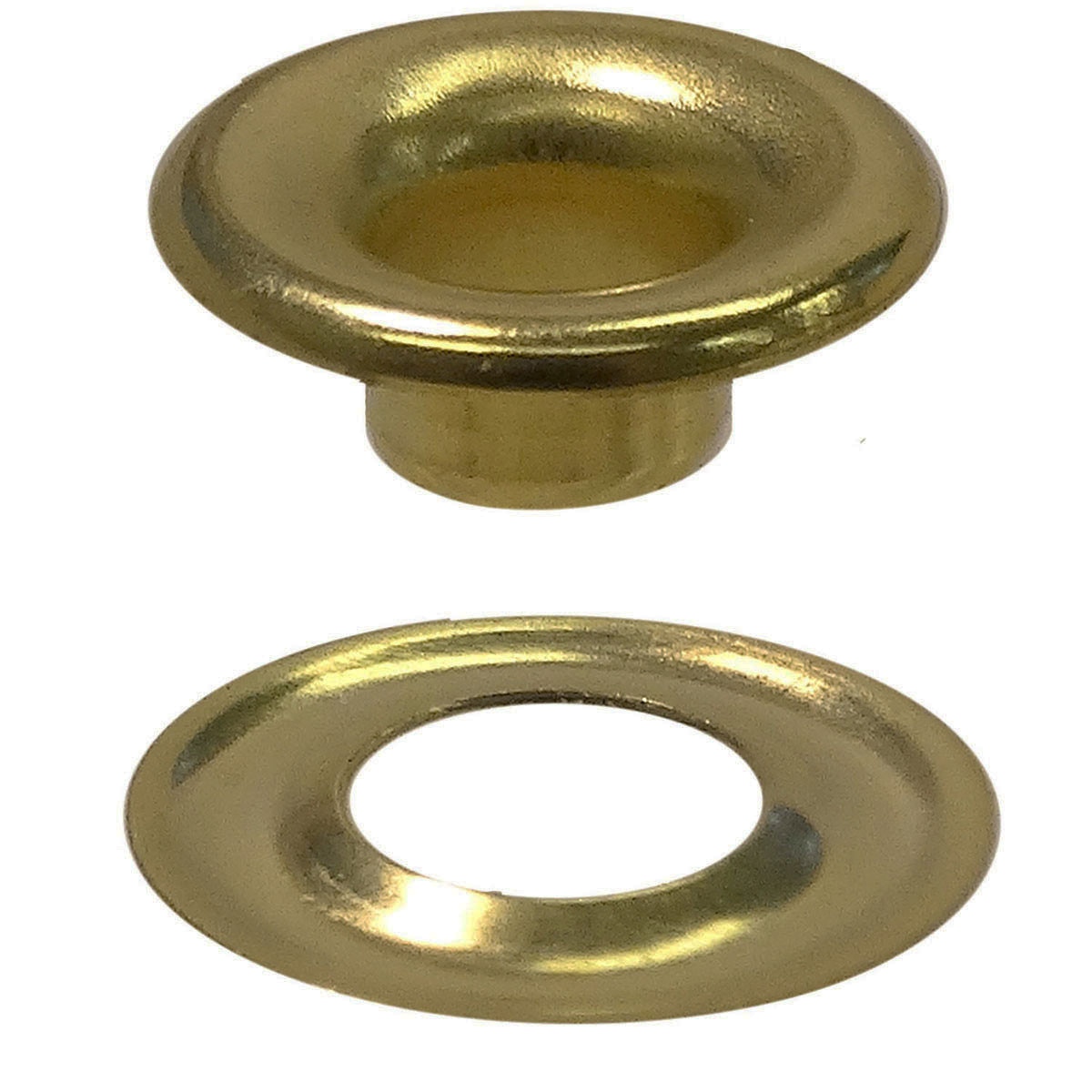

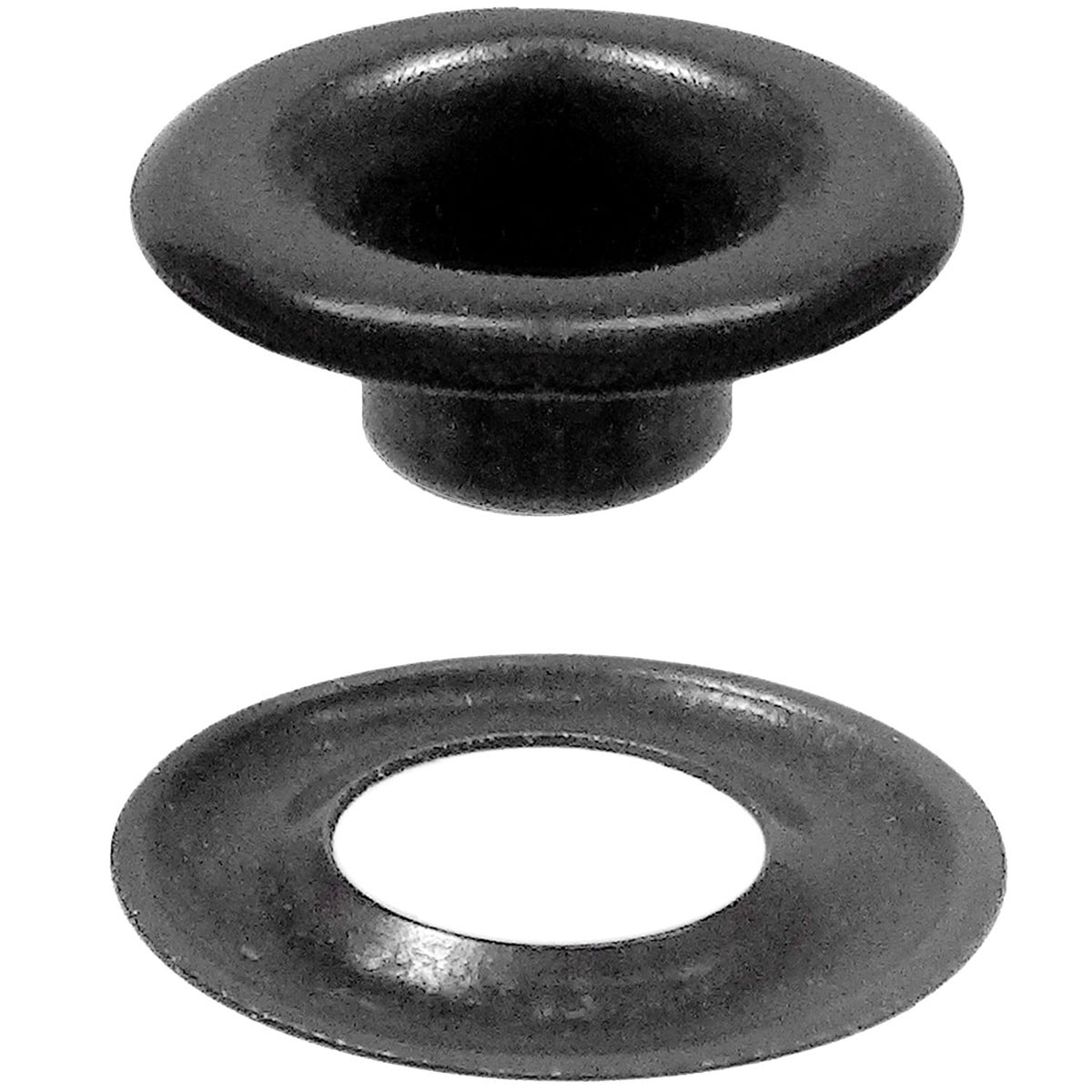

  • Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
This part conforms to the following military specifications: NASM16491, Type I, Class 1 (plain brass), Class 2 (Brass Nickel), Class 3 (Brass Dull Black), Size 00 and NASM20230B20 (Plain Brass)
