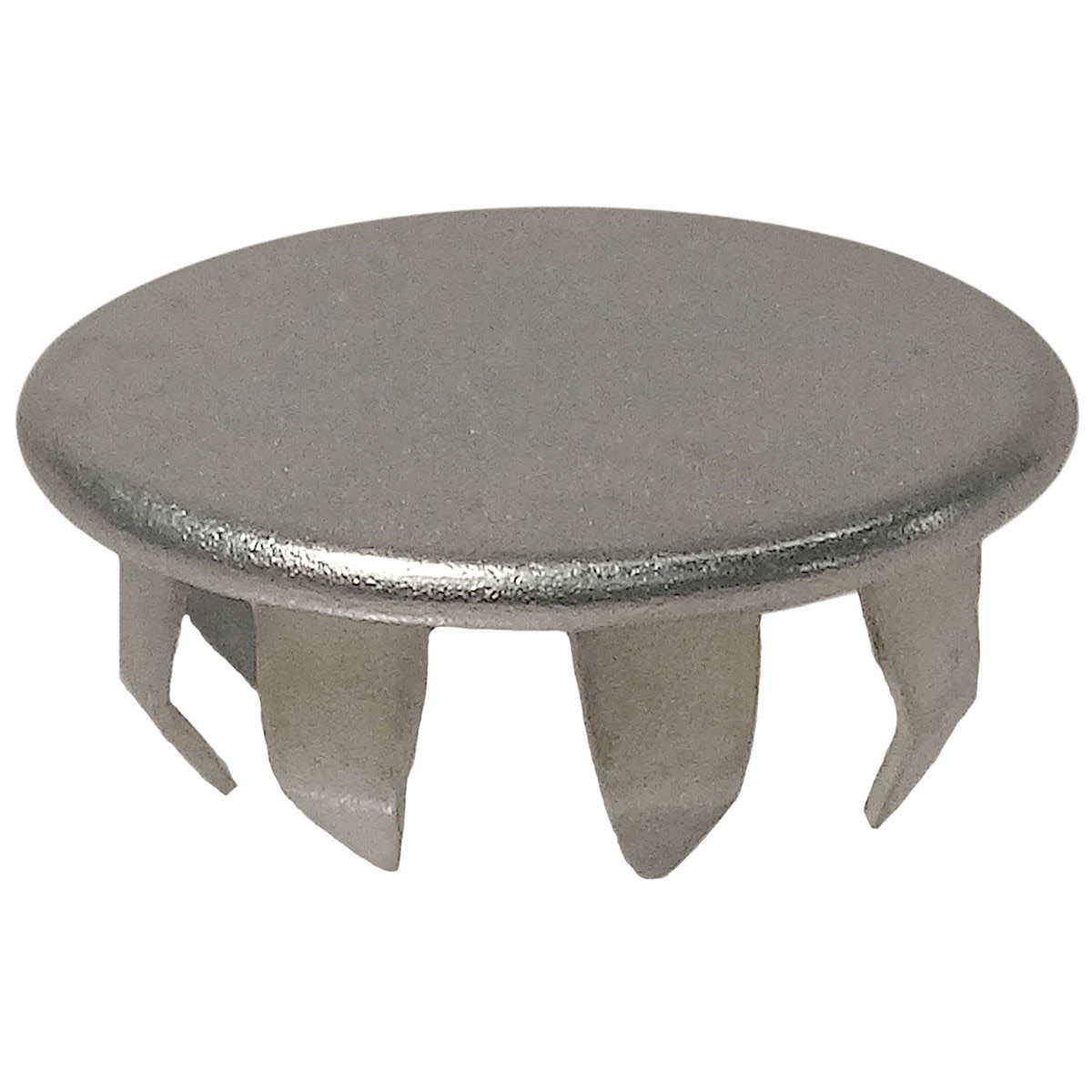

Stimpson’s standard hole plug is designed to create a professional and finished appearance in a variety of applications. This nickel-plated standard steel hole plug is designed to fit into a 9/16 hole in material that is between 3/64” and 3/32” thick. The head of this part is 23/32” in diameter and 1/16” in height. The overall height of the hole plug is 9/32”. Installation is easy since the prongs of the plug are slightly bent so that the hole plug snaps in for a secure fit. The widest part of the prong holds the plug firmly against the back of the material.
Material: Low Carbon Cold Rolled Steel
Hole Diameter: 9/16”
Head Diameter: 23/32”
For Material Thickness: 3/64” and 3/32”
Plating: Nickel-Plated (Electro-deposited)
Industries: Industrial, Electrical, Medical, Automotive and more
