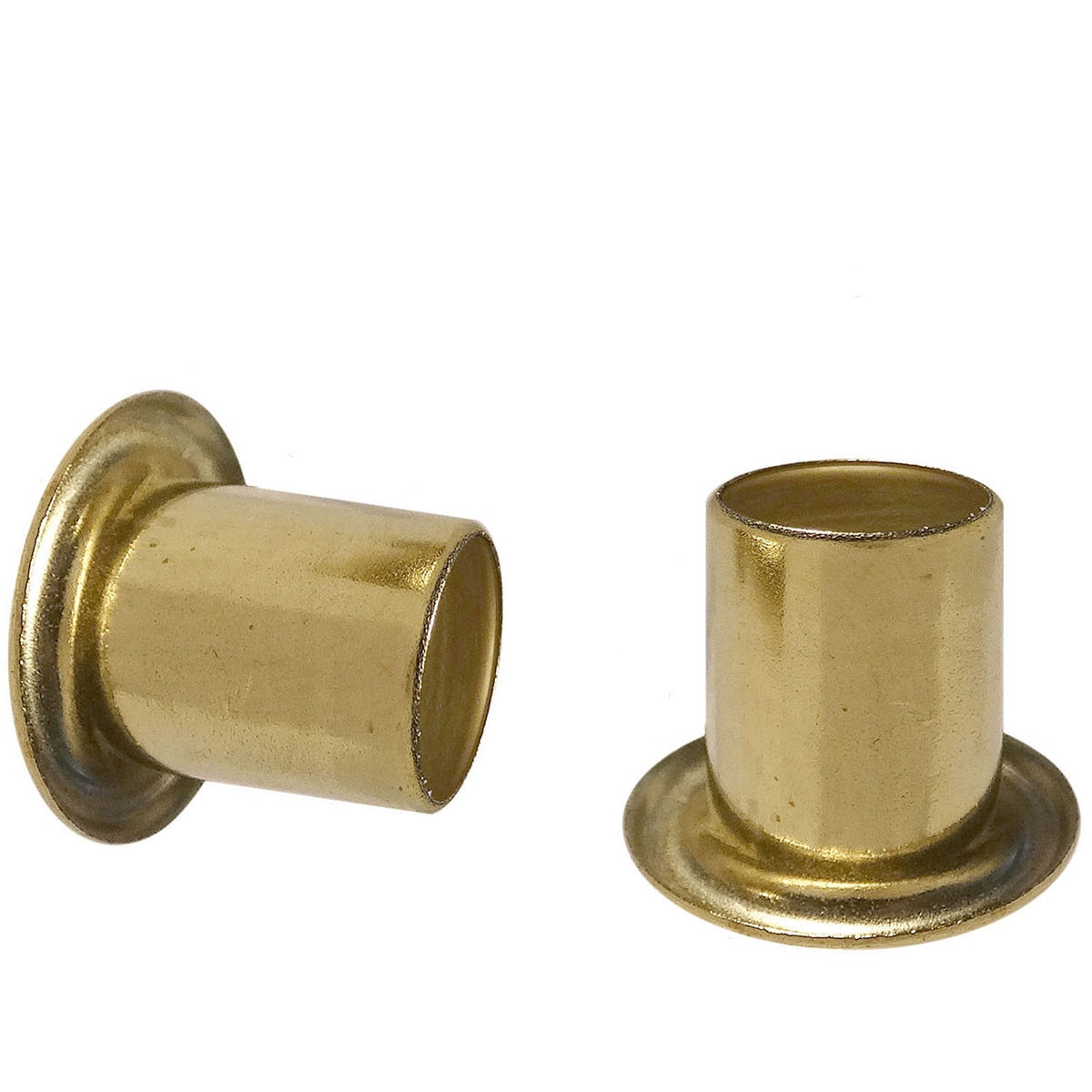

GS 8-6 Brass Eyelets

SKU: X-GS86B
$67.36 to $570.75
(0) No Reviews yet

Details

Stimpson’s GS® 8-6 brass eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 8-6 eyelet is designed with an overall length of 0.227”, a hole size of 0.218”, and its metal thickness is 0.011”.  The flange diameter of this eyelet is 0.385”, with an outside diameter of 0.246”, and a length under flange of 0.187”.  Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.

  • Material: Brass
  • Flange Diameter: 0.385”
  • Outside Diameter: 0.246”
  • Length Under Flange: 0.187”
  • Length Overall: 0.227”
  • Hole Size: 0.218”
  • Metal Thickness: 0.011”
  • Nominal Hole Size: 8/32”
  • Industries: Industrial, Electrical, Apparel, Marine, Automotive, and more

Click here for blueprint.
