GS 8-12 Brass Eyelets

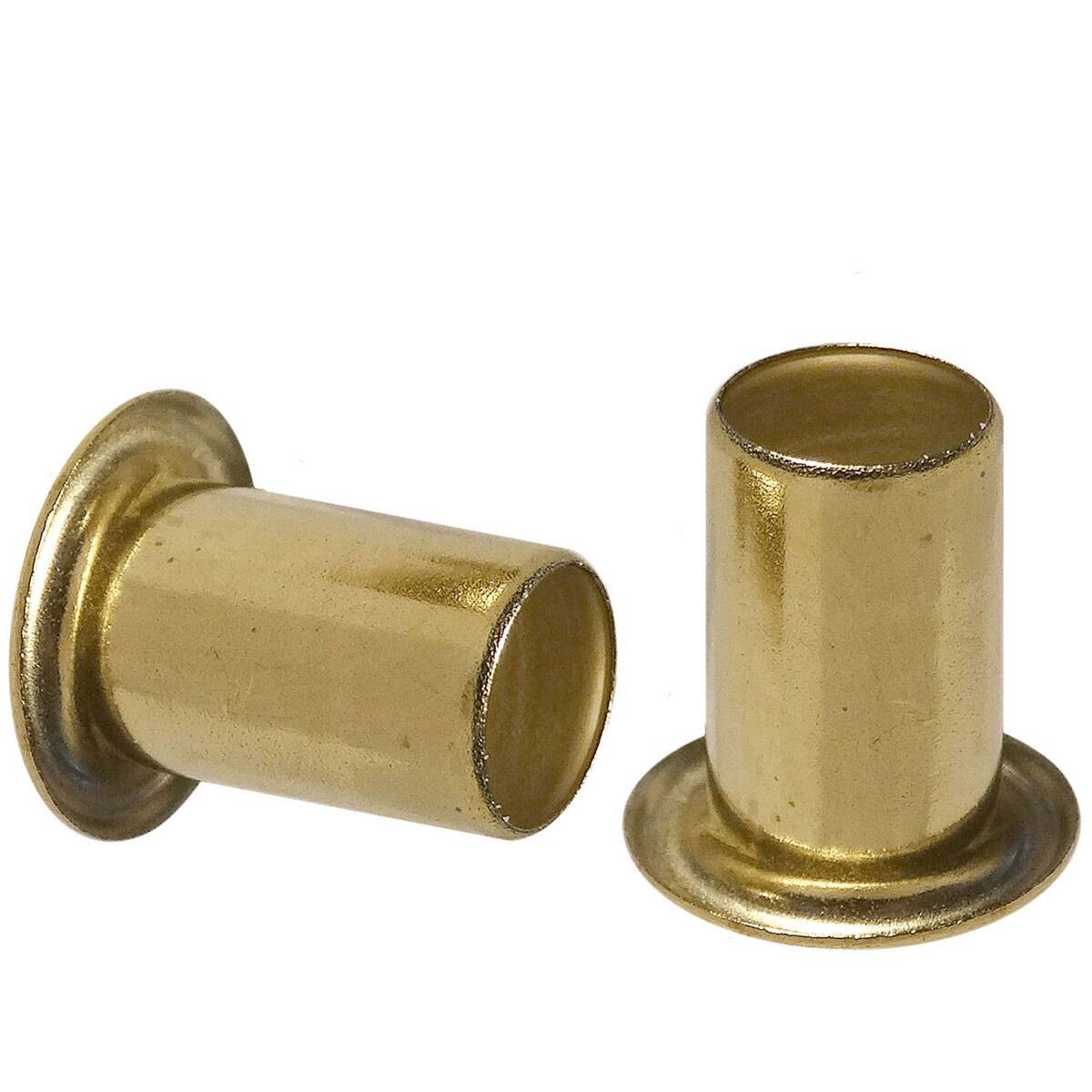

Stimpson’s GS® 8-12 brass eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 8-12 eyelet is designed with an overall length of 0.415”, a hole size of 0.218”, and its metal thickness is 0.011”. The flange diameter of this eyelet is 0.385”, with an outside diameter of 0.246”, and a length under flange of 0.375”. Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.
- Material: Brass
- Flange Diameter: 0.385”
- Outside Diameter: 0.246”
- Length Under Flange: 0.375”
- Length Overall: 0.415”
- Hole Size: 0.218”
- Metal Thickness: 0.011”
- Fits in a 8/32” hole in your material
- Industries: Industrial, Electrical, Apparel, Marine, Automotive, and more
