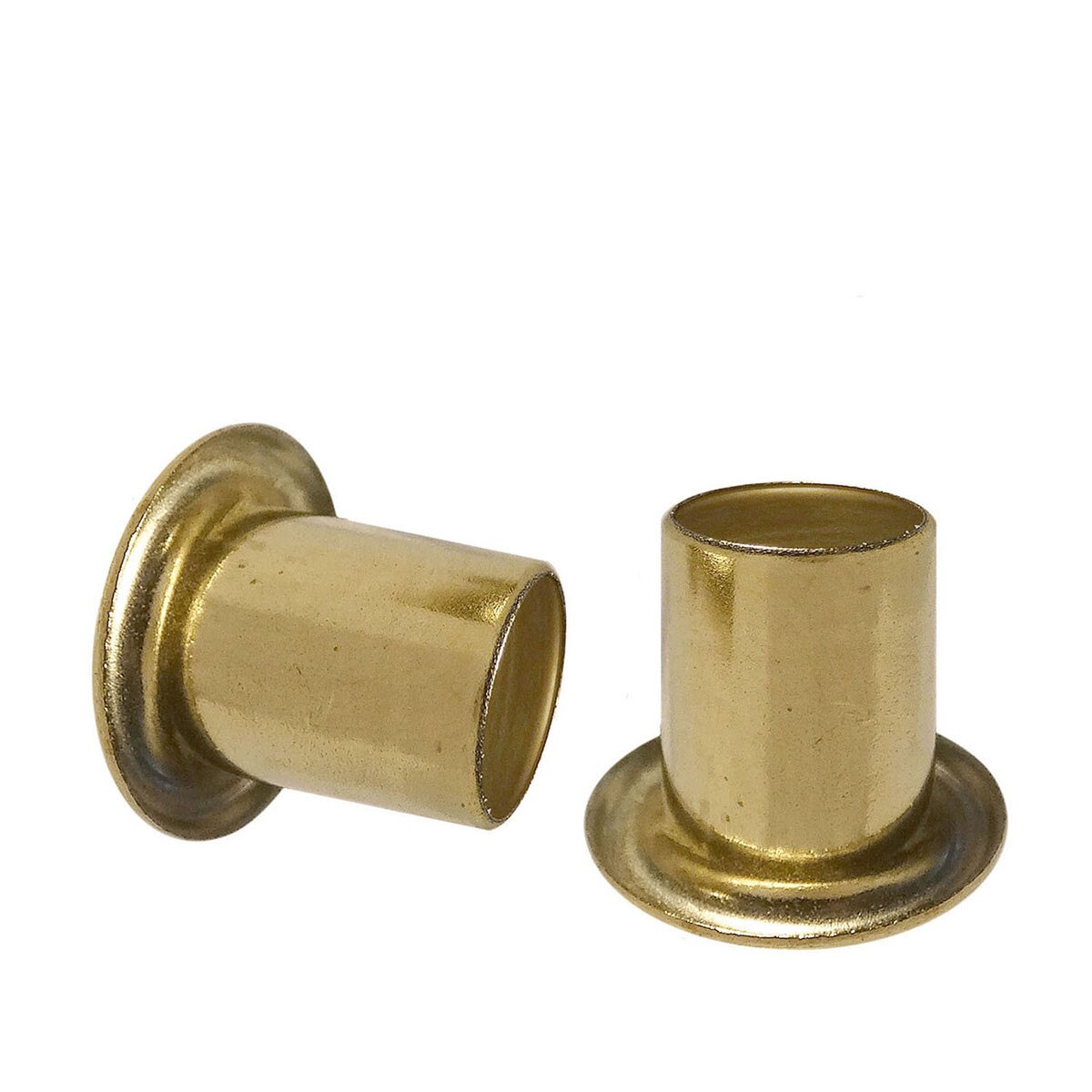

GS 7-5 Brass Eyelets

SKU: X-GS75B
$59.85 to $504.75
(0) No Reviews yet

Details

Stimpson’s GS® 7-5 brass eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 7-5 eyelet is designed with an overall length of 0.193”, a hole size of 0.188”, and its metal thickness is 0.011”.  The flange diameter of this eyelet is 0.34”, with an outside diameter of 0.215”, and a length under flange of 0.156”.  Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.

  • Material: Brass
  • Flange Diameter: 0.34”
  • Outside Diameter: 0.215”
  • Length Under Flange: 0.156”
  • Length Overall: 0.193”
  • Hole Size: 0.188”
  • Metal Thickness: 0.011”
  • Nominal Hole Size: 7/32”
  • Industries: Industrial, Electrical, Apparel, Marine, Automotive, and more

Click here for blueprint.
