GS 7-13 Brass Eyelets

$85.62 to $1,439.16
(0)No Reviews yet

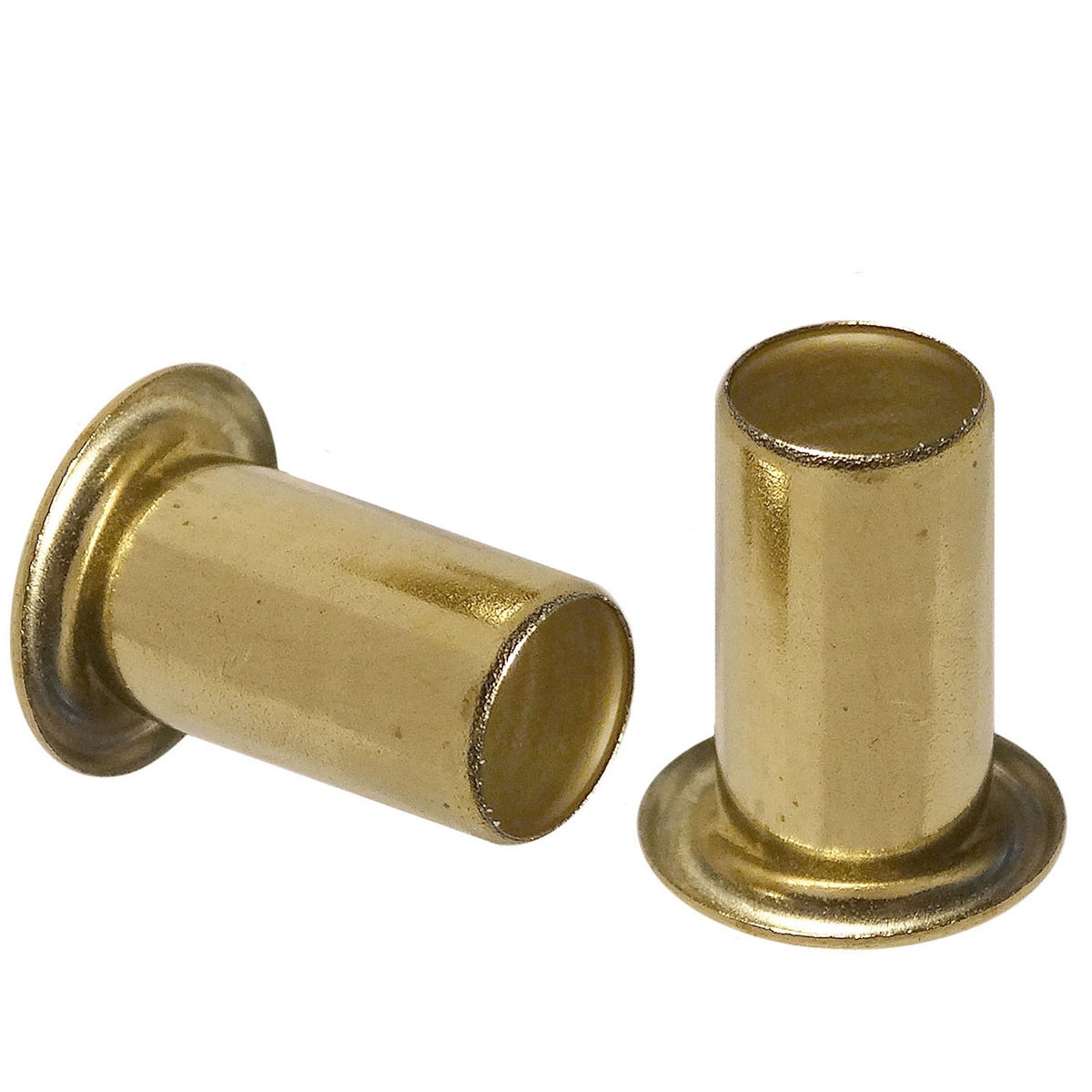

Stimpson’s GS® 7-13 brass eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 7-13 eyelet is designed with an overall length of 0.443”, a hole size of 0.188”, and its metal thickness is 0.011”.  The flange diameter of this eyelet is 0.34”, with an outside diameter of 0.215”, and a length under flange of 0.406”.  Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.

  • Material: Brass
  • Flange Diameter: 0.34”
  • Outside Diameter: 0.215”
  • Length Under Flange: 0.406”
  • Length Overall: 0.443”
  • Hole Size: 0.188”
  • Metal Thickness: 0.011”
  • Fits in a 7/32” hole in your material
  • Industries: Industrial, Electrical, Apparel, Marine, Automotive, and more
