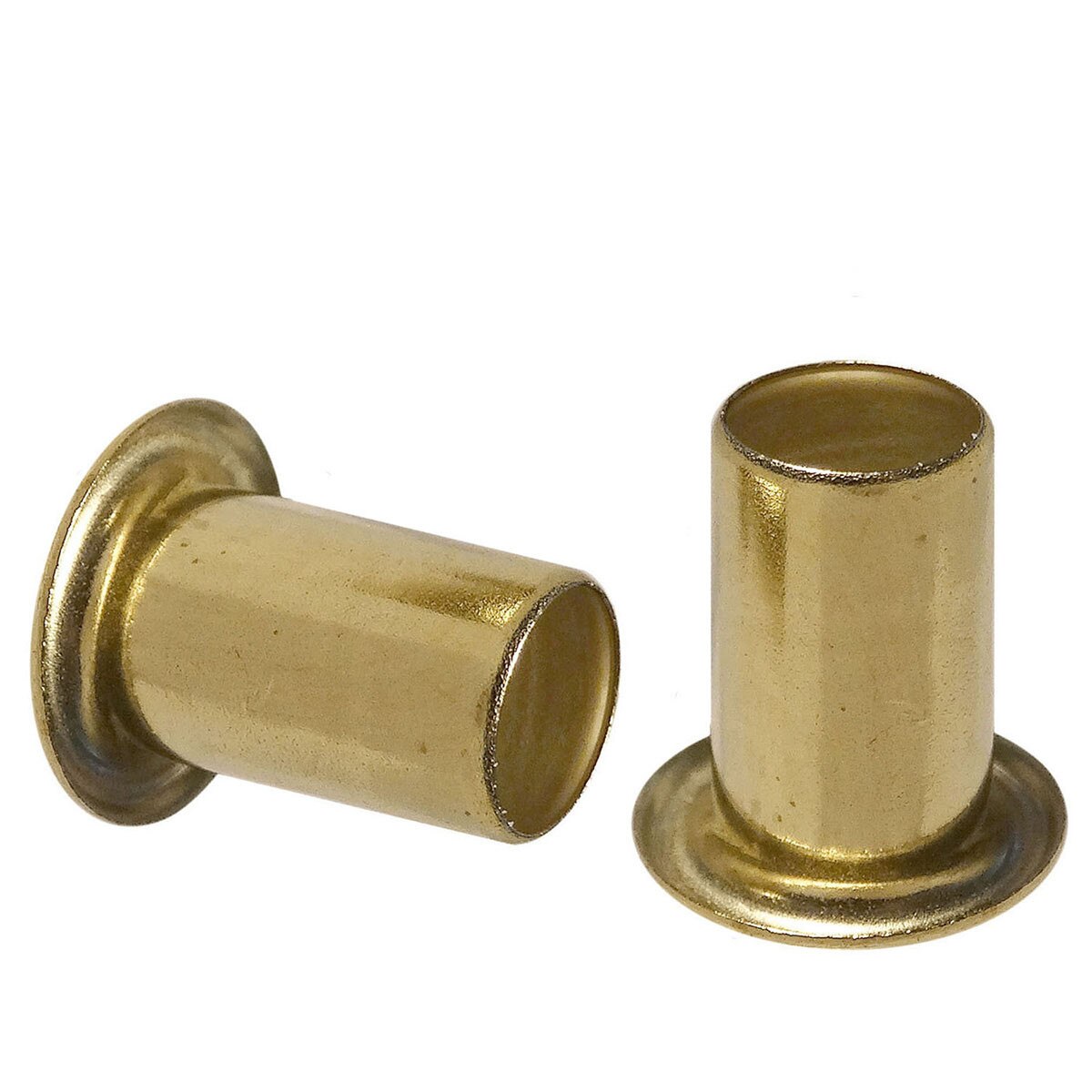

GS 7-11 Brass Eyelets

Stimpson’s GS® 7-11 brass eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 7-11 eyelet is designed with an overall length of 0.381”, a hole size of 0.188”, and its metal thickness is 0.011”.  The flange diameter of this eyelet is 0.34”, with an outside diameter of 0.215”, and a length under flange of 0.344”.  Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.

• Material: Brass
• Flange Diameter: 0.34”
• Outside Diameter: 0.215”
• Length Under Flange: 0.344”
• Length Overall: 0.381”
• Hole Size: 0.188”
• Metal Thickness: 0.011”
• Fits in a 7/32” hole in your material
• Industries: Industrial, Electrical, Apparel, Marine, Automotive, and more
