GS 6-7 Brass Eyelets

$65.30 to $607.67
(0) No Reviews yet

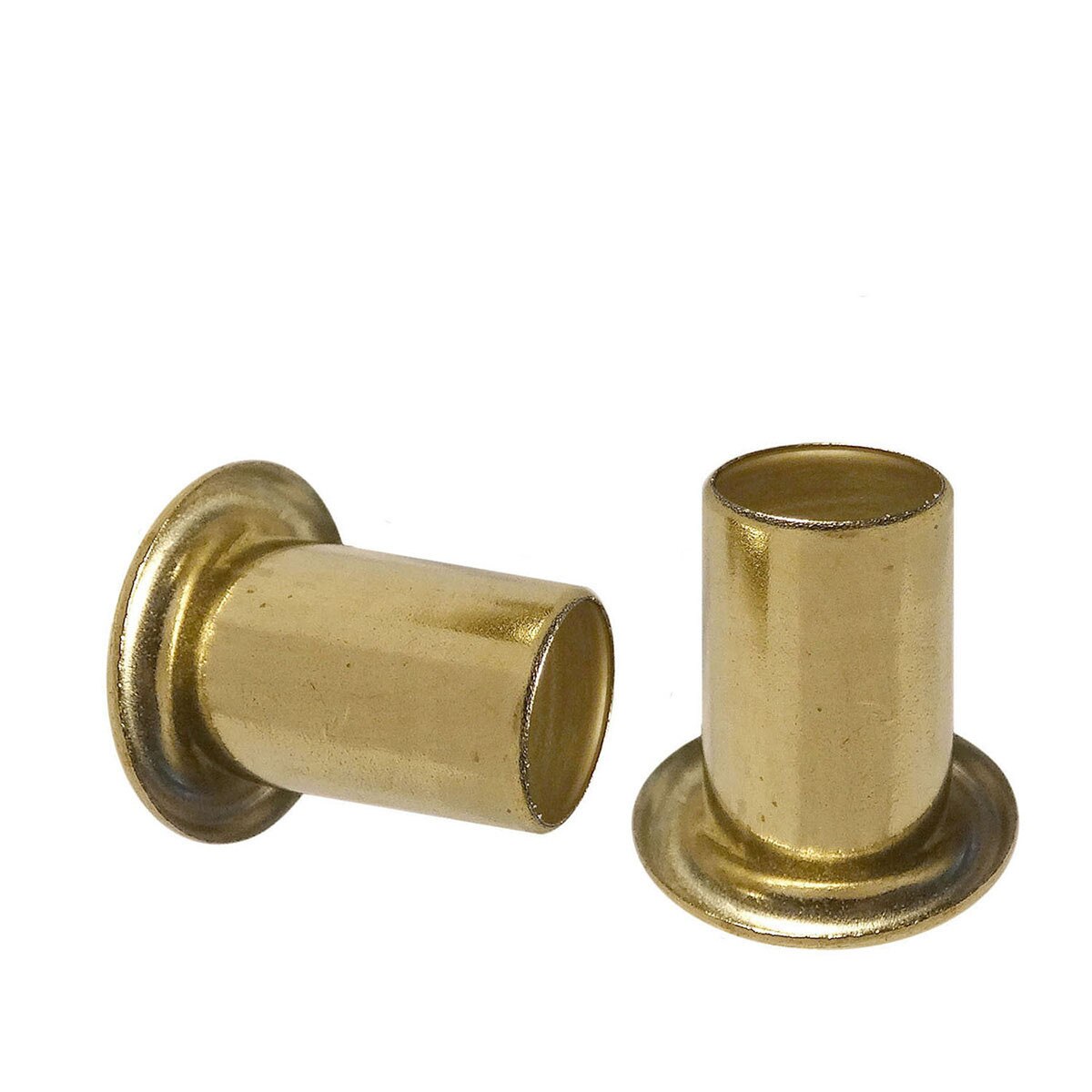

Stimpson’s GS® 6-7 Brass Eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 6-7 eyelet is designed with an overall length of 0.252”, a hole size of 0.157”, and its metal thickness is 0.010”.  The flange diameter of this eyelet is 0.29”, with an outside diameter of 0.183”, and a length under flange of 0.219”. Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.

  • Material: Brass
  • Flange Diameter: 0.29”
  • Outside Diameter: 0.183”
  • Length Under Flange: 0.219”
  • Length Overall: 0.252”
  • Hole Size: 0.157”
  • Metal Thickness: 0.010”
  • Fits in a 6/32” hole in your material
  • Industries: Electrical, Apparel, Industrial, Marine, Automotive, and more

Click here for blueprint.
