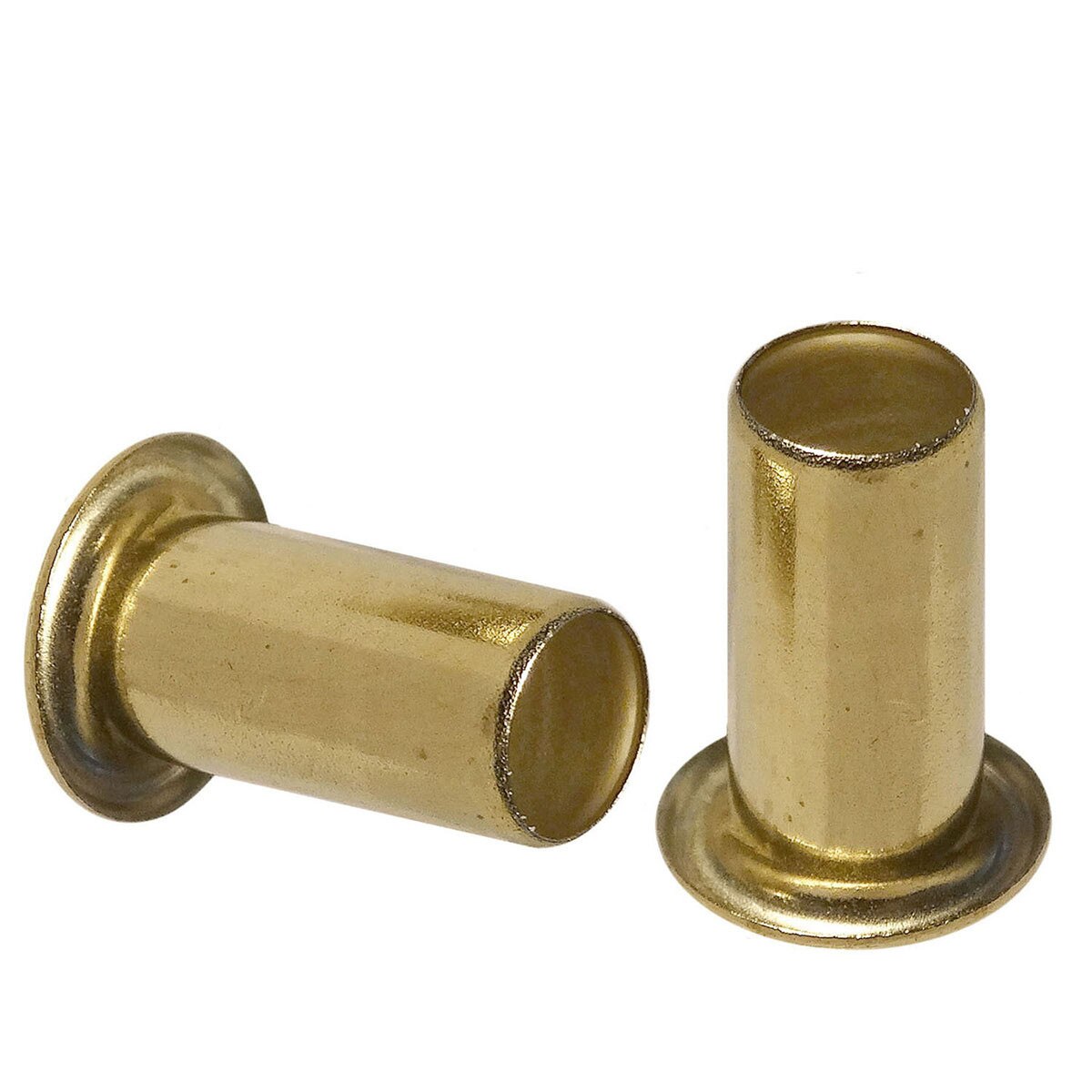

GS 6-13 Brass Eyelets

Stimpson’s GS® 6-13 Brass Eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 6-13 eyelet is designed with an overall length of 0.439”, a hole size of 0.157”, and its metal thickness is 0.010”.  The flange diameter of this eyelet is 0.29”, with an outside diameter of 0.183”, and a length under flange of 0.406”. Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.

• Material: Brass
• Flange Diameter: 0.29”
• Outside Diameter: 0.183”
• Length Under Flange: 0.406”
• Length Overall: 0.439”
• Hole Size: 0.157”
• Metal Thickness: 0.010”
• Fits in a 6/32” hole in your material
• Industries: Electrical, Apparel, Industrial, Marine, Automotive, and more
