GS 4-8 Brass Eyelets

$43.10 to $470.00
(0) No Reviews yet

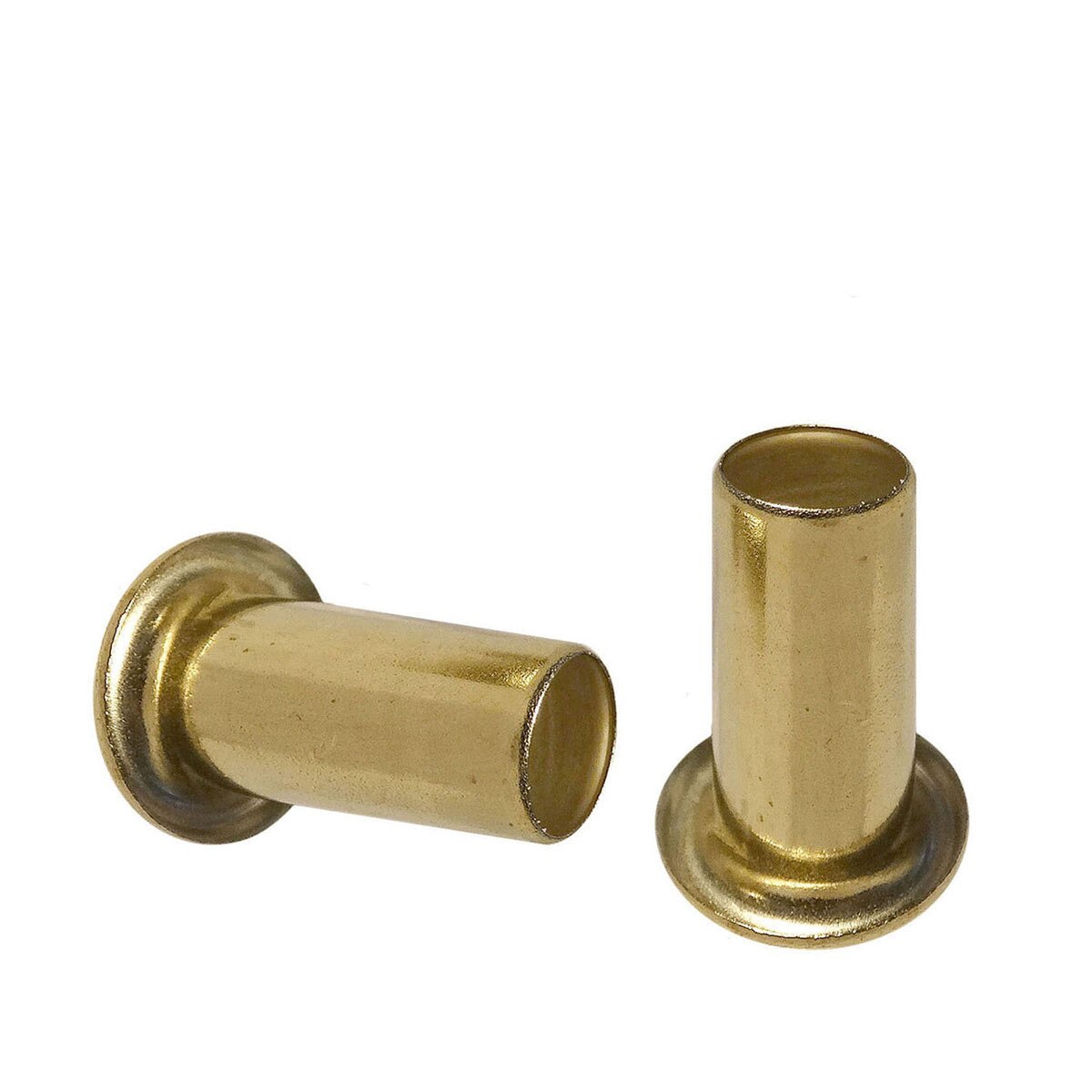

Stimpson’s GS® 4-8 brass eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 4-8 eyelet is designed with an overall length of 0.277”, a hole size of 0.097”, and its metal thickness is 0.009”.  The flange diameter of this eyelet is 0.2”, with an outside diameter of 0.121”, and a length under flange of 0.25”. Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.

  • Material: Brass
  • Flange Diameter: 0.2”
  • Outside Diameter: 0.121”
  • Length Under Flange: 0.25”
  • Length Overall: 0.277”
  • Hole Size: 0.097”
  • Metal Thickness: 0.009”
  • Fits in a 4/32” hole in your material
  • Industries: Electrical, Apparel, Industrial, Marine, Automotive, and more

    Click here for blueprint.
