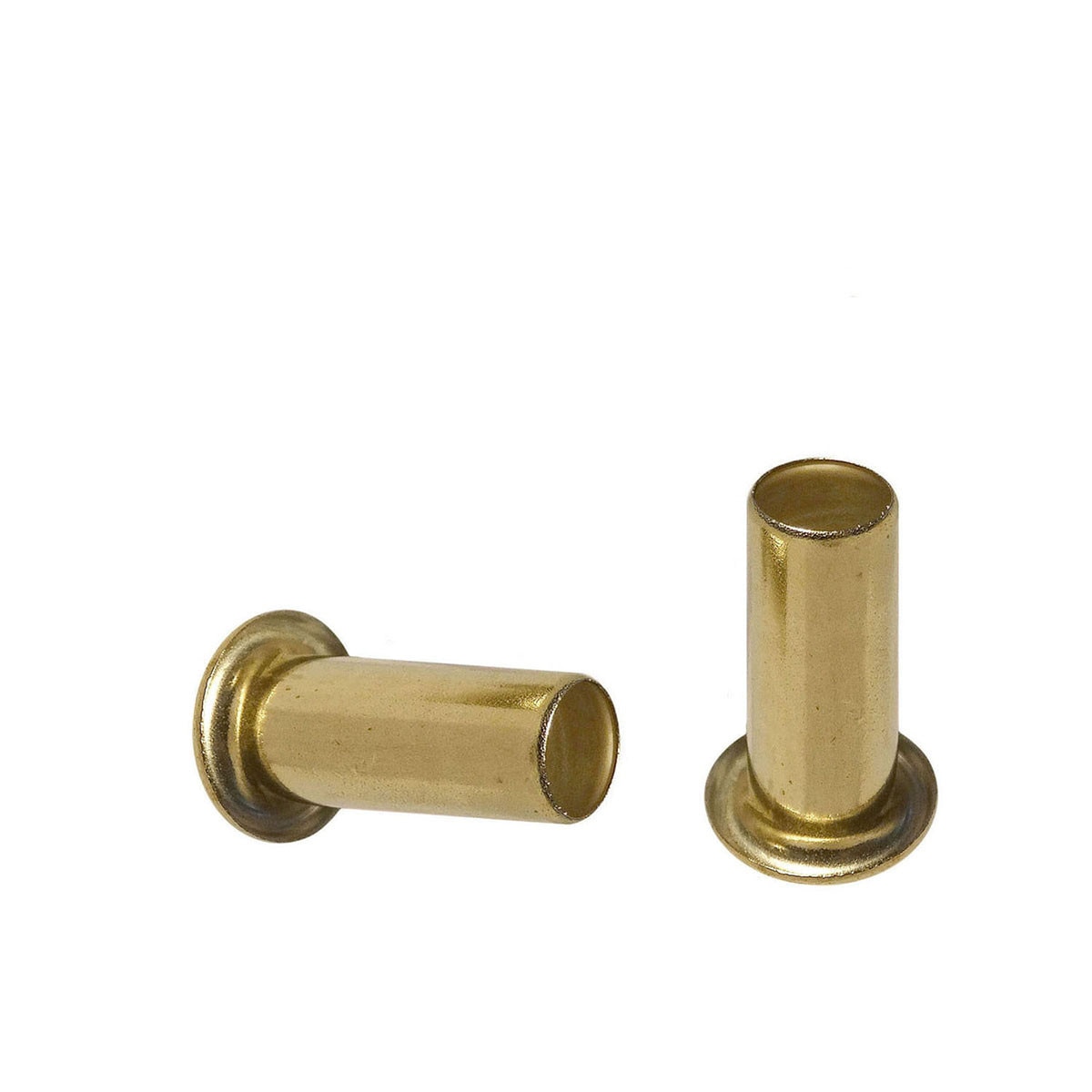

Stimpson’s GS® 2-6 brass eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 2-6 eyelet is designed with an overall length of 0.125”, a hole size of 0.045”, and its metal thickness is 0.007”. The flange diameter of this eyelet is 0.105”, with an outside diameter of 0.059”, and a length under flange of 0.125”. Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.
Flange Diameter: 0.105”
Outside Diameter: 0.059”
Length Under Flange: .187"
Length Overall: 0.207”
Hole Size: 0.045”
Metal Thickness: 0.007”
Fits in a 2/32” hole in your material
Industries: Electrical, Apparel, Industrial, Marine, Automotive, and more
