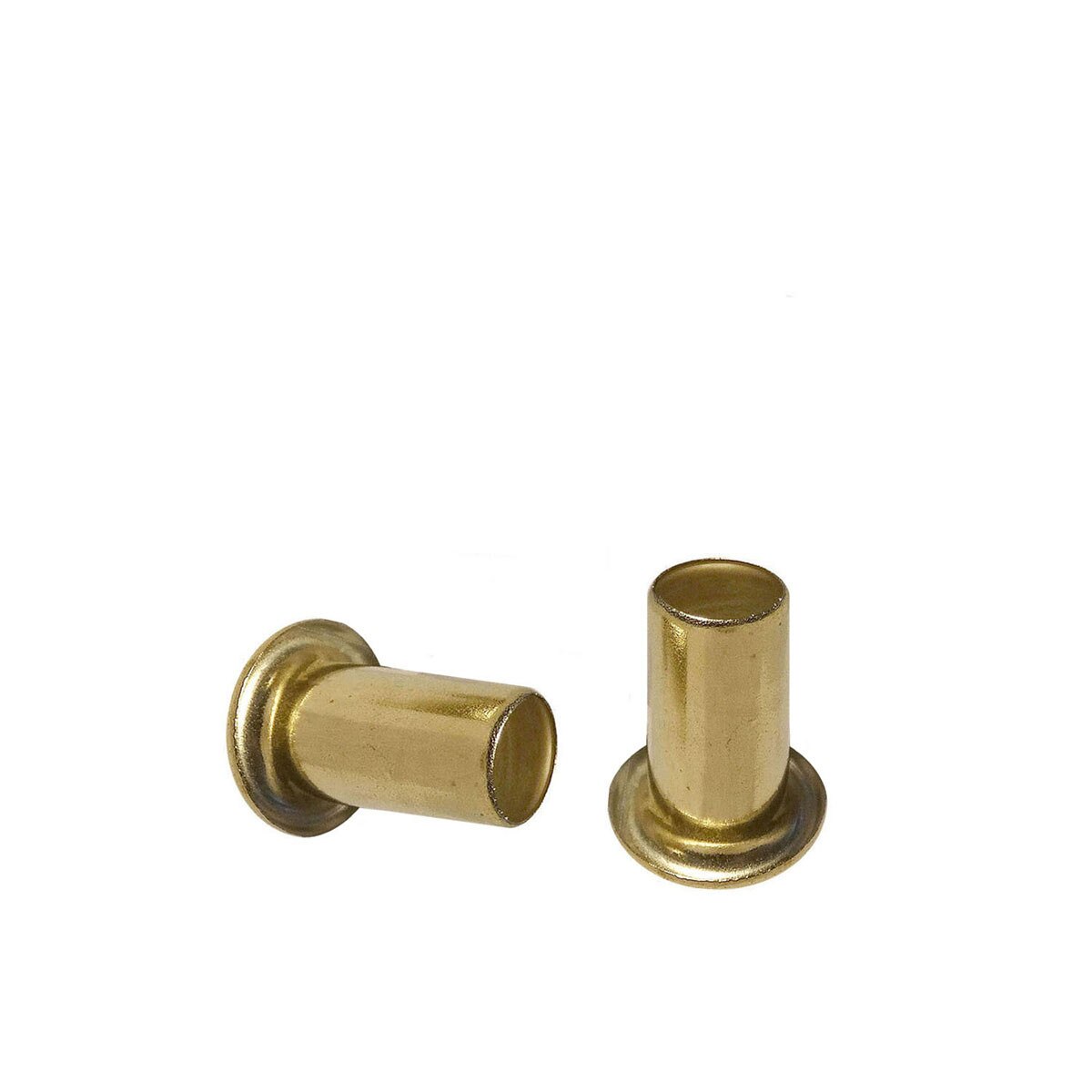

GS 2-4 Brass Eyelets

SKU: X-GS24B
$32.13 to $370.50
(0) No Reviews yet

Details

    Material: Brass
    Stimpson’s GS® 2-4 brass eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 2-4 eyelet is designed with an overall length of 0.145”, a hole size of 0.045”, and its metal thickness is 0.006”.  The flange diameter of this eyelet is 0.105”, with an outside diameter of 0.059”, and a length under flange of 0.125”. Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.
    • Flange Diameter: 0.105”
    • Outside Diameter: 0.059”
    • Length Under Flange: 0.125”
    • Length Overall: 0.145”
    • Hole Size: 0.045”
    • Metal Thickness: 0.007”
    • Nominal Hole Size: 2/32”
    • Industries: Electrical, Apparel, Industrial, Marine, Automotive, and more
