GS 2-3 Brass Eyelets

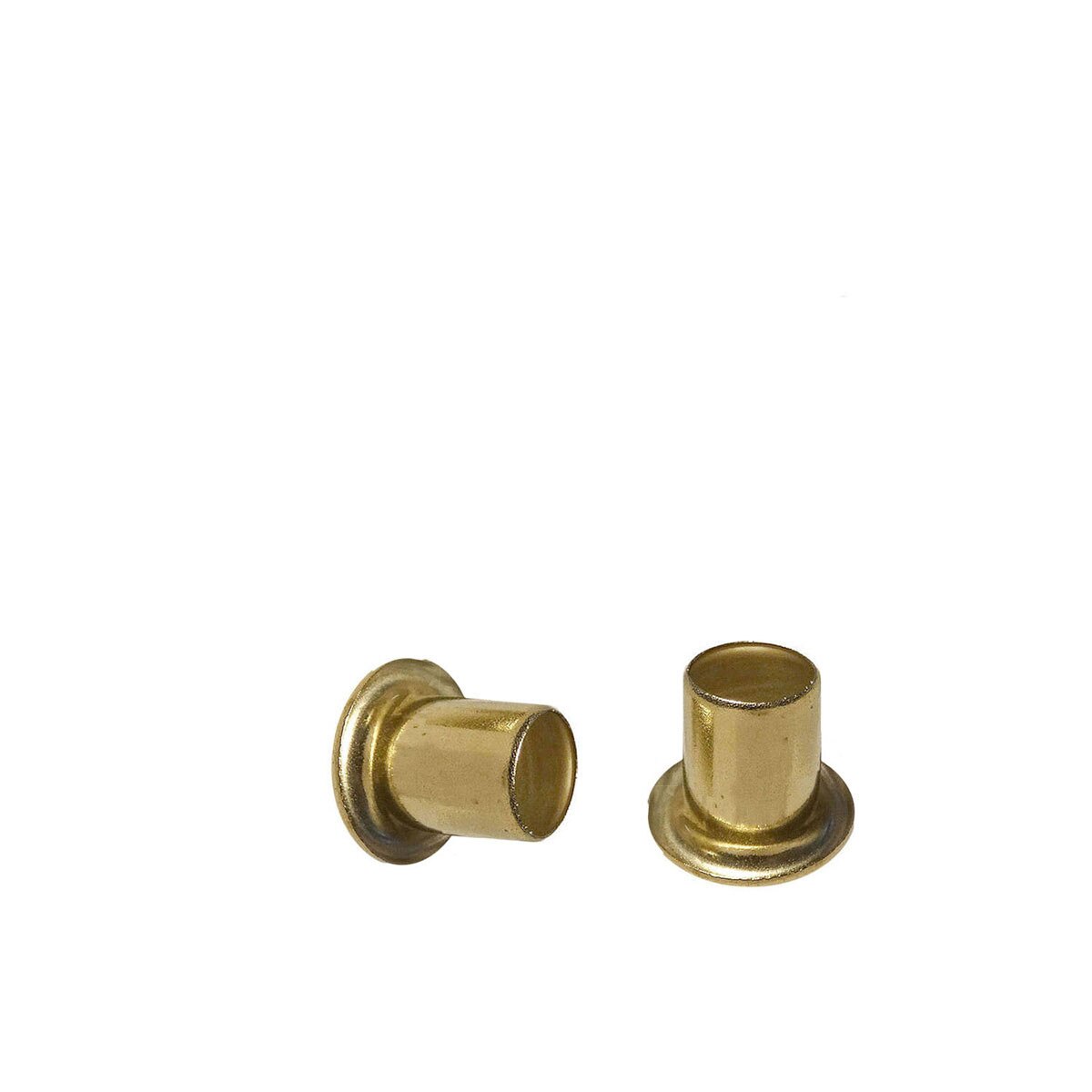

Stimpson’s GS® 2-3 brass eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 2-3 eyelet is designed with an overall length of 0.113”, a hole size of 0.045”, and its metal thickness is 0.007”.  The flange diameter of this eyelet is 0.105”, with an outside diameter of 0.059”, and a length under flange of 0.093”.  Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.

• Material: Brass
• Flange Diameter: 0.105”
• Outside Diameter: 0.059”
• Length Under Flange: 0.093”
• Length Overall: 0.113”
• Hole Size: 0.045”
• Metal Thickness: 0.007”
• Fits in a 2/32” hole in your material
• Industries: Electrical, Apparel, Industrial, Marine, Automotive, and more

  Click here for blueprint.Click here for full GS chart.
