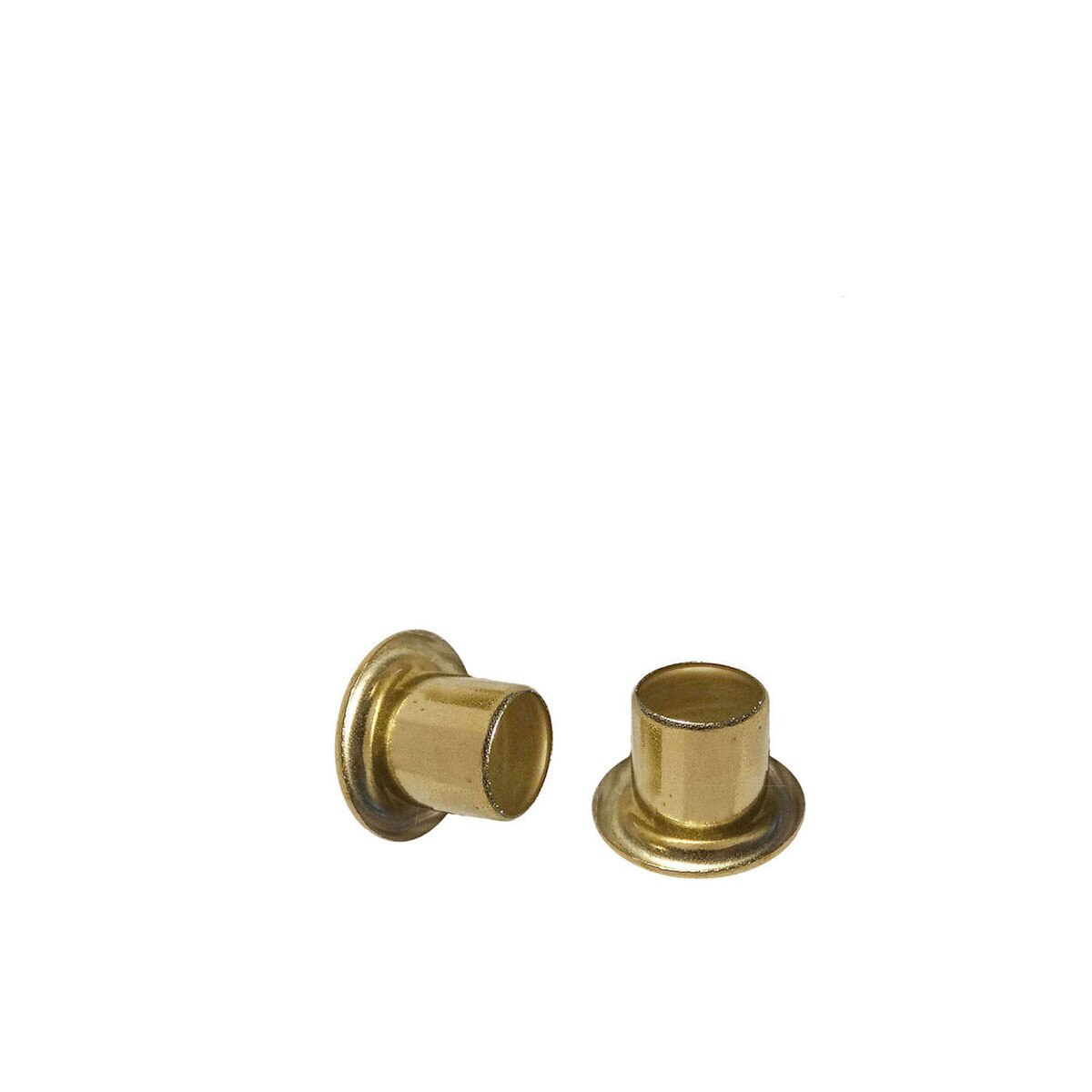

GS 2-2 Brass Eyelets

Stimpson’s GS® 2-2 brass eyelet is part of an eyelet group consisting of a matrix of 72 eyelets where the length and outside barrel diameters are graduated by 1/32”. The GS® 2-2 eyelet is designed with an overall length of 0.082”, a hole size of 0.045”, and its metal thickness is 0.007”. The flange diameter of this eyelet is 0.105”, with an outside diameter of 0.059”, and a length under flange of 0.062”. Stimpson’s GS® eyelet fastening system provides manufacturers the flexibility of utilizing all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® eyelets ensuring installation runs smoothly and efficiently.

Material: Brass
Flange Diameter: 0.105”
Outside Diameter: 0.059”
Length Under Flange: 0.062”
Length Overall: 0.082”
Hole Size: 0.045”
Metal Thickness: 0.007”
Fits in a 2/32” hole in your material
Industries: Electrical, Apparel, Industrial, Marine, Automotive, and more

Click here for blueprint. Click here for full GS chart.
