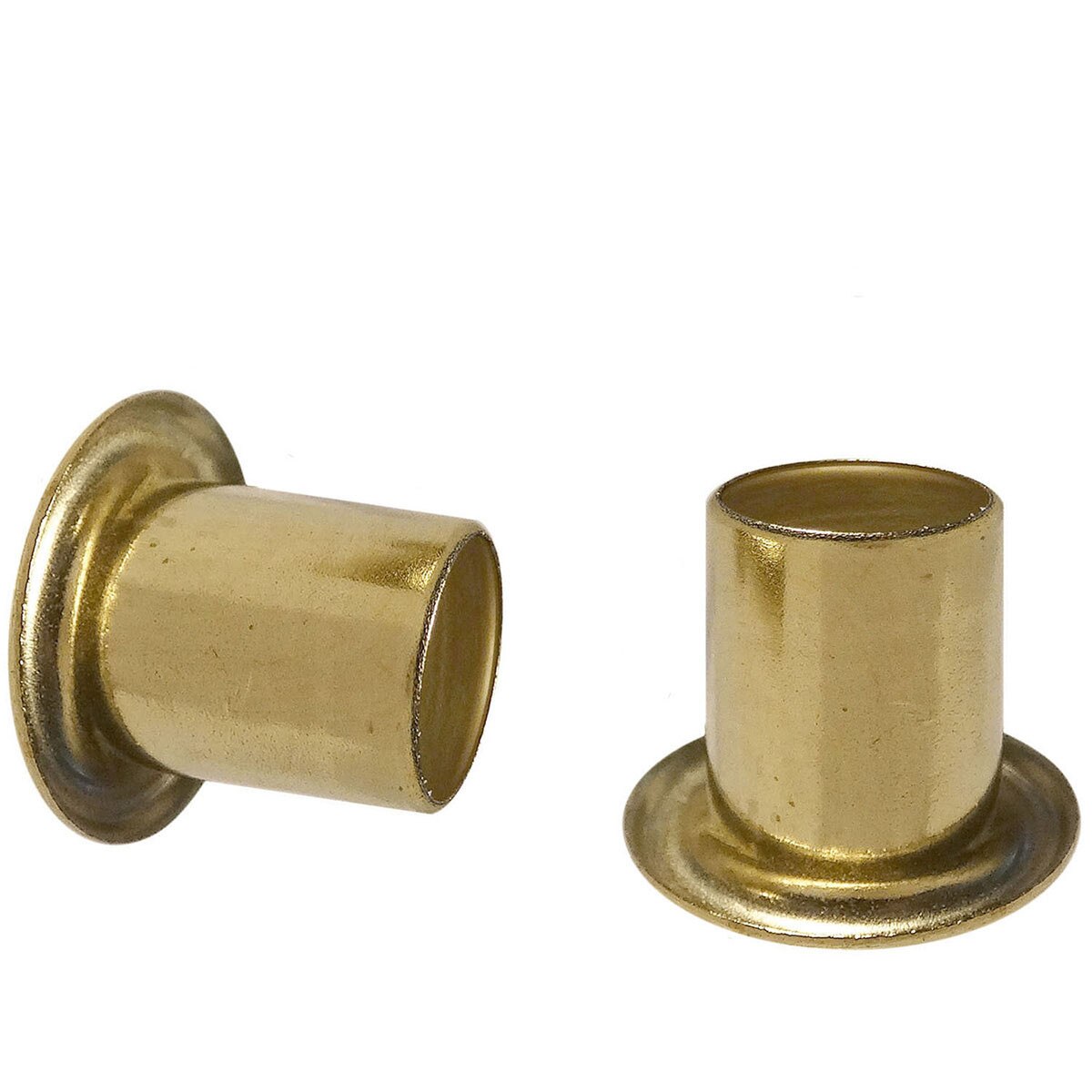

MS 8-6 Brass Eyelets
Many of Stimpson's GS® eyelets are now made in the USA! Stimpson’s MS 8-6 brass eyelet is part of our GS® eyelet series - a matrix of 72 eyelet sizes with length and outside barrel diameters graduated by 1/32”. Identical to the GS® 8-6 eyelet, MS 8-6 is designed with an overall length of 0.227”, a hole size of 0.218”, and its metal thickness is 0.011”. The flange diameter of this eyelet is 0.385”, with an outside diameter of 0.246”, and a length under flange of 0.187”. Stimpson’s GS® eyelet fastening system provides manufacturers with the flexibility to use all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® and MS eyelets, ensuring installation runs smoothly and efficiently.
- Material: Brass
- Flange Diameter: 0.385”
- Outside Diameter: 0.246”
- Length Under Flange: 0.187”
- Length Overall: 0.227”
- Hole Size: 0.218”
- Metal Thickness: 0.011”
- Fits in a 8/32” hole in your material
- Industries: Industrial, Electrical, Apparel, Marine, Automotive, and more
