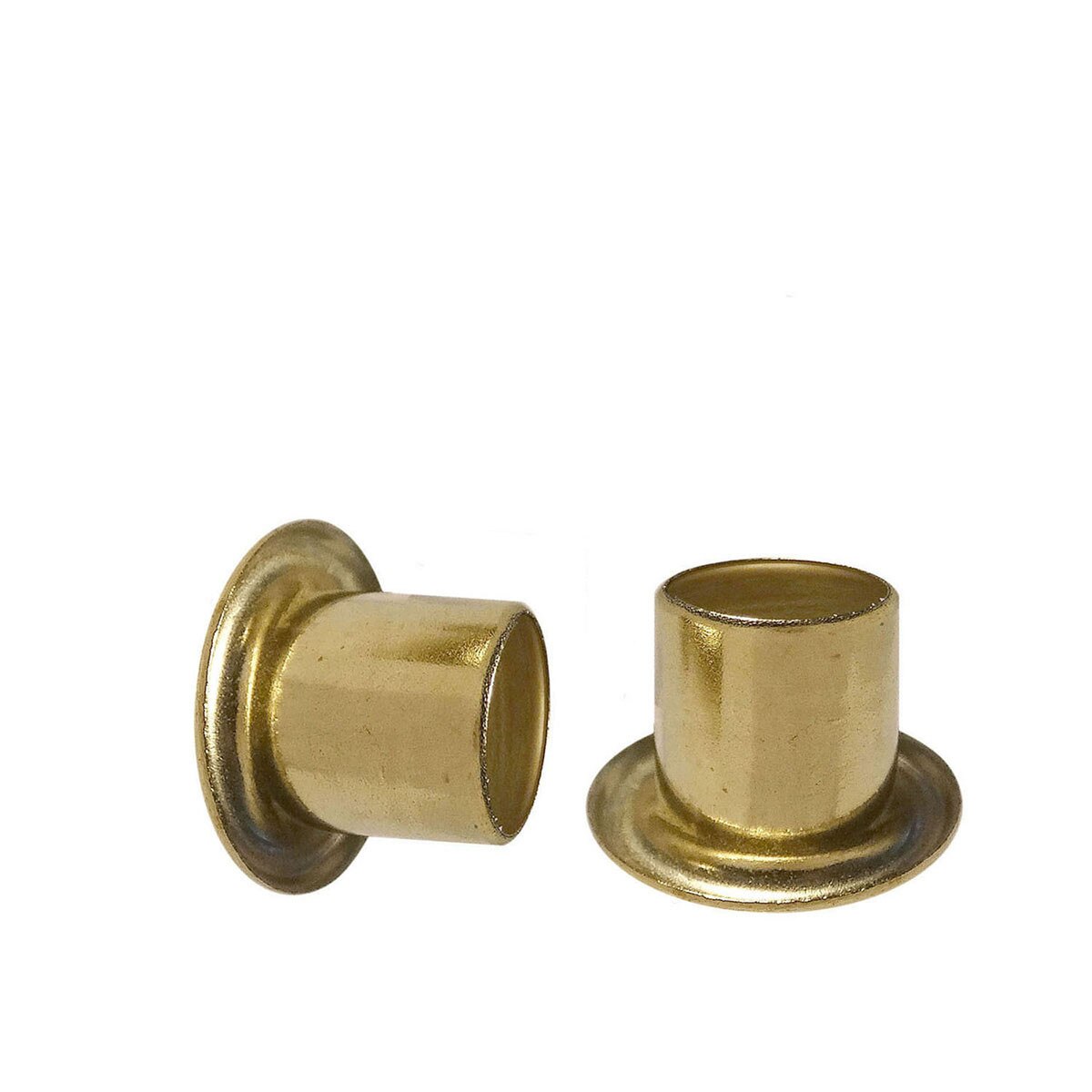

MS 6-4 Brass Eyelets
Many of Stimpson's GS® eyelets are now made in the USA! Stimpson’s MS 6-4 Brass Eyelet is part of our GS® eyelet series - a matrix of 72 eyelet sizes with length and outside barrel diameters graduated by 1/32”. Identical to the GS® 6-4 eyelet, MS 6-4 is designed with an overall length of 0.158”, a hole size of 0.157”, and its metal thickness is 0.010”. The flange diameter of this eyelet is 0.29”, with an outside diameter of 0.183”, and a length under flange of 0.125”. Stimpson’s GS® eyelet fastening system provides manufacturers with the flexibility to use all lengths of the same barrel diameter without changing setting machinery. Semi-automatic and fully-automatic setting machines easily set GS® and MS eyelets, ensuring installation runs smoothly and efficiently.
- Material: Brass
- Flange Diameter: 0.29”
- Outside Diameter: 0.183”
- Length Under Flange: 0.125”
- Length Overall: 0.158”
- Hole Size: 0.157”
- Metal Thickness: 0.011”
- Fits in a 6/32” hole in your material
- Industries: Industrial, Electrical, Apparel, Marine, Automotive, and more
