#7 ROLLED RIM GROMMET and SPUR WASHER BRASS (7RRGSW)
Stimpson’s #7 brass rolled rim grommet and spur washer offers the greatest strength of setting for a variety of applications. Available in three finishes, the #7 rolled rim grommet features a hole size of 29/32”, a length under flange of .446”, and a metal thickness of .020”. The inside diameter of the spur washer is 1.062”, with an outside diameter of 1.725”, and a metal thickness of .020”. Stimpson’s #7 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. This multipurpose grommet and washer combination can be used in a variety of materials including industrial fabrics, marine canvas, boat covers, awnings, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #7 grommets and spur washers ensuring installation runs smoothly and efficiently.
- Material: Brass
- Grommet (inches):
- Hole Size: 29/32"
- Flange Diameter: 1.725"
- Length Under Flange: .446"
- Metal Thickness: .020"
- Washer (inches):
- Inside Diameter: 1.062"
- Outside Diameter: 1.725"
- Metal Thickness: .020"

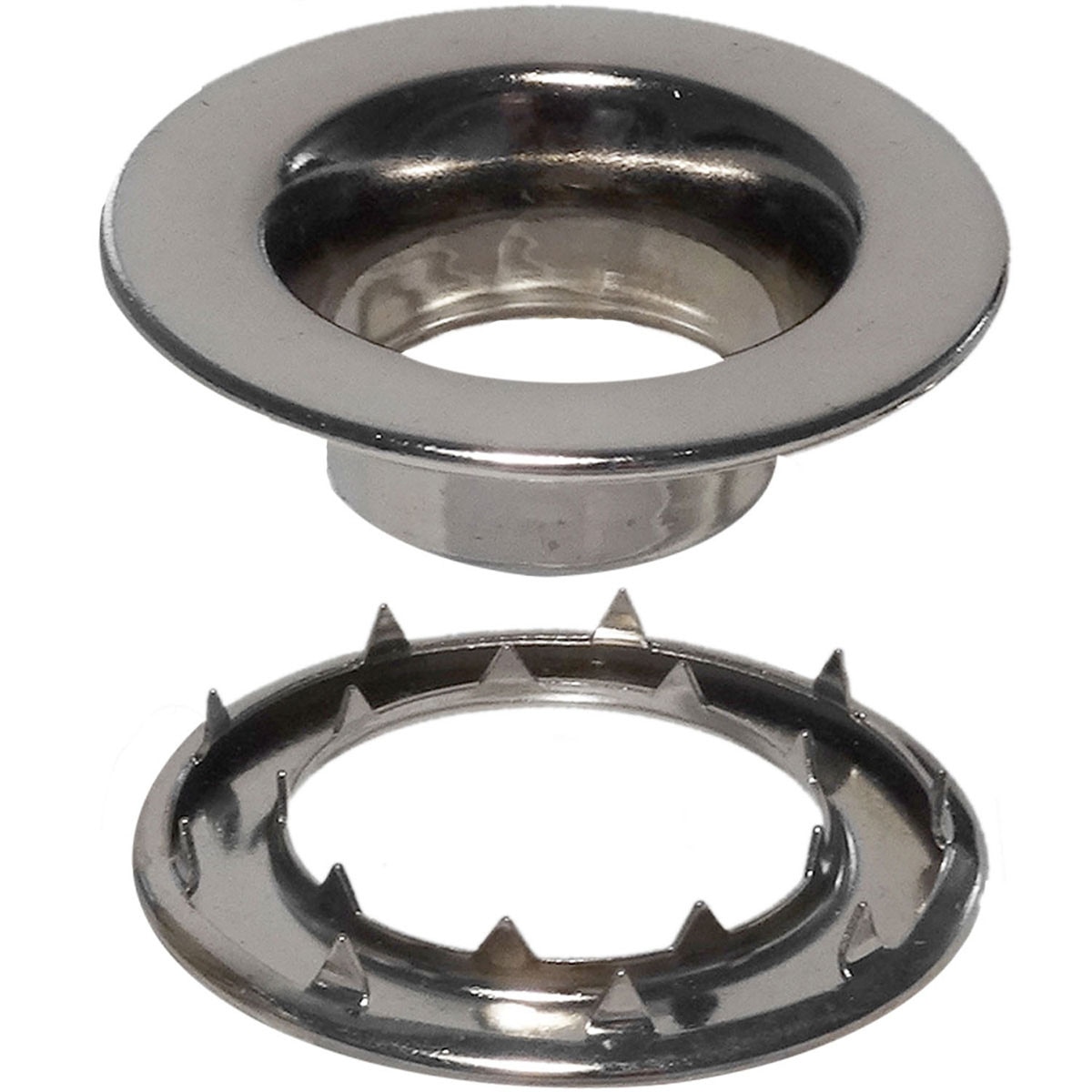

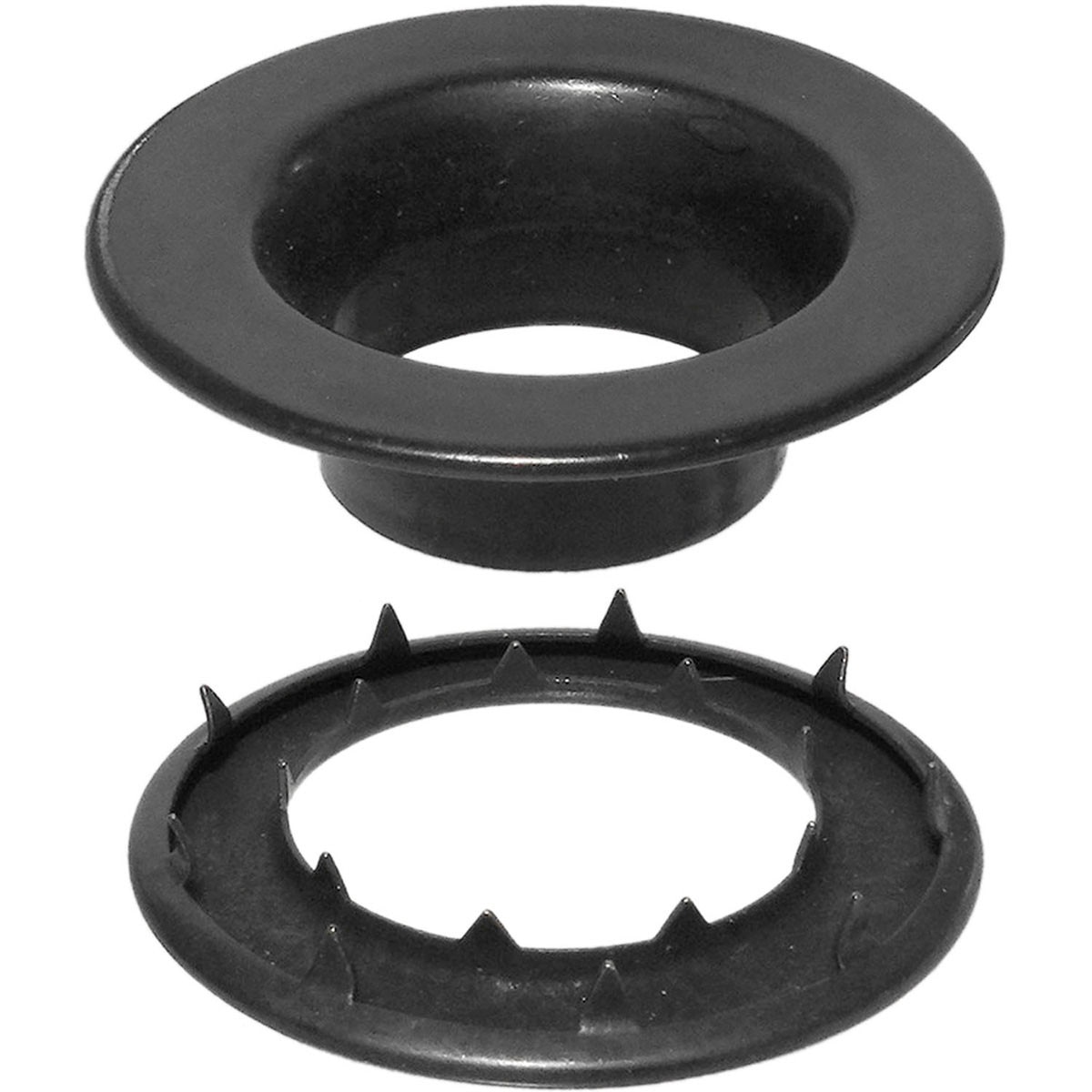

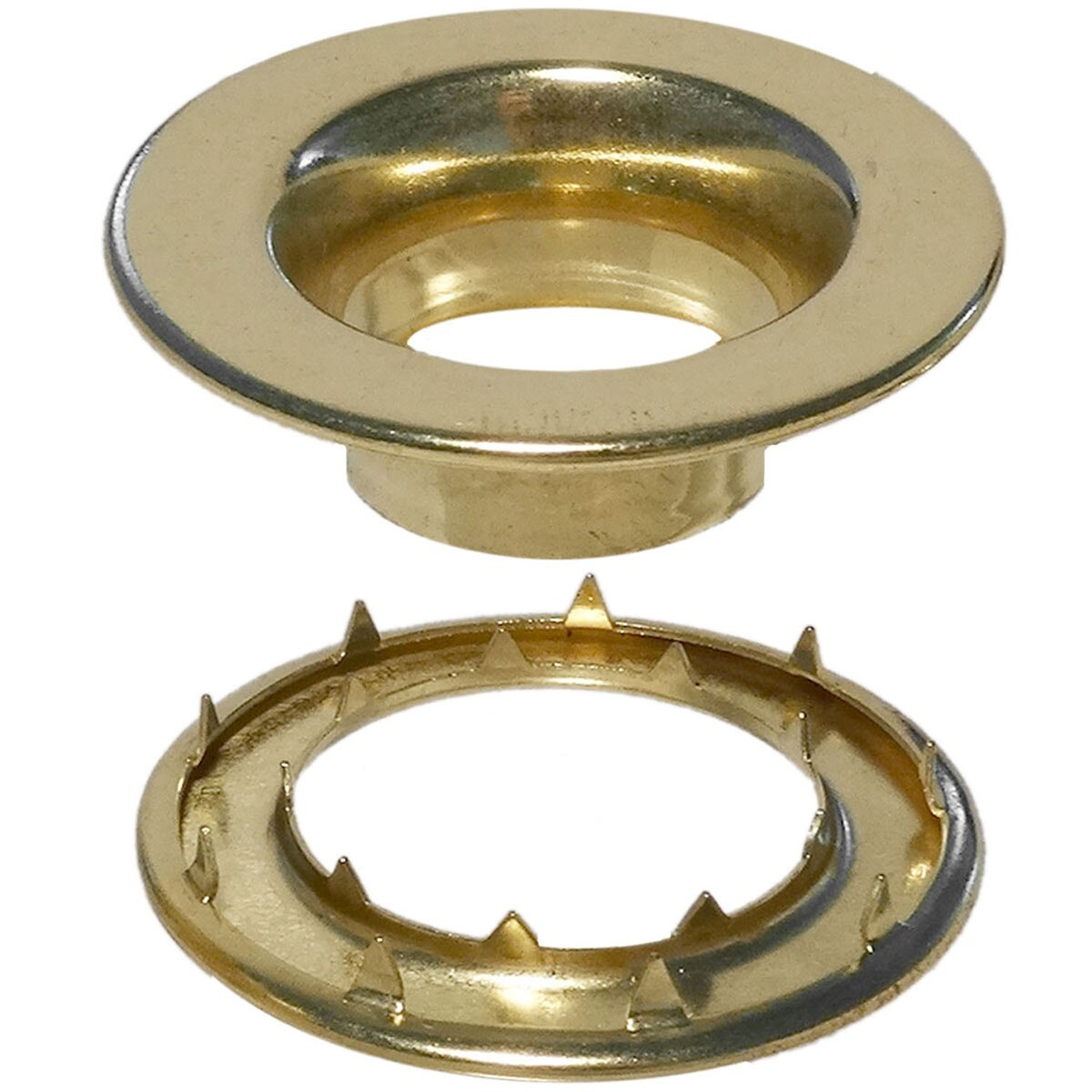

- Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
- Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
