#6 SHEET METAL GROMMET and WASHER BRASS (6GW)
Details
Stimpson’s #6 brass grommet and plain washer provide basic hole reinforcement and versatility for a wide variety of applications. Available in three finishes, the #6 grommet features a hole size of 13/16”, a length under flange of .232”, and a metal thickness of .020”. The inside diameter of the plain washer is .875”, with an outside diameter of 1.828”, and a metal thickness of .020”. This multipurpose brass grommet and washer combination can be used in a variety of materials including industrial fabrics, canvas, leather, signage, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic and fully-automatic grommet setting machines easily set #6 grommets and plain washers ensuring installation runs smoothly and efficiently.
- Material: Brass
- Grommet (inches):
- Hole Size: 13/16"
- Flange Diameter: 1.750"
- Length Under Flange: .232"
- Metal Thickness: .020"
- Washer (inches):
- Inside Diameter: .875"
- Outside Diameter: 1.828"
- Metal Thickness: .020"

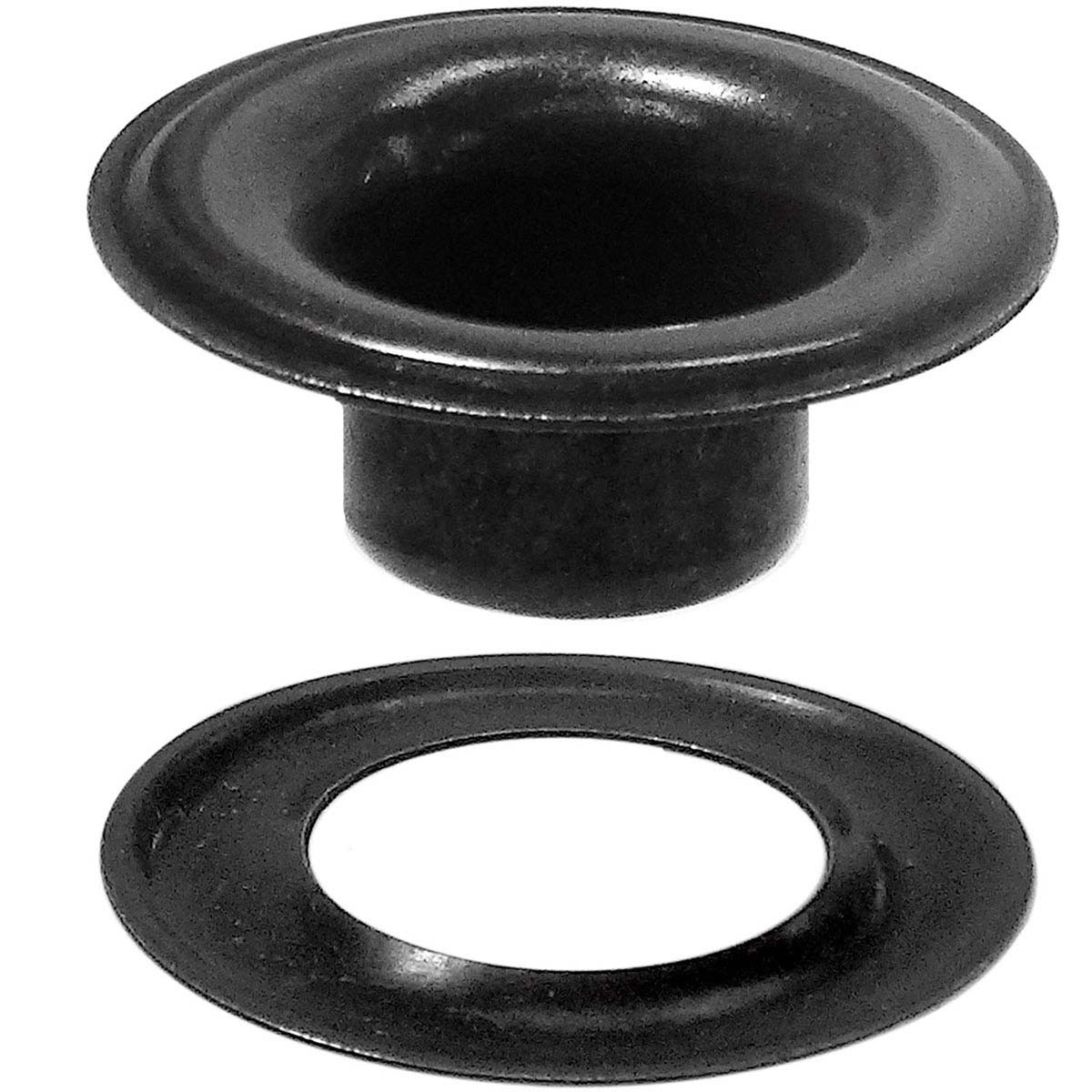

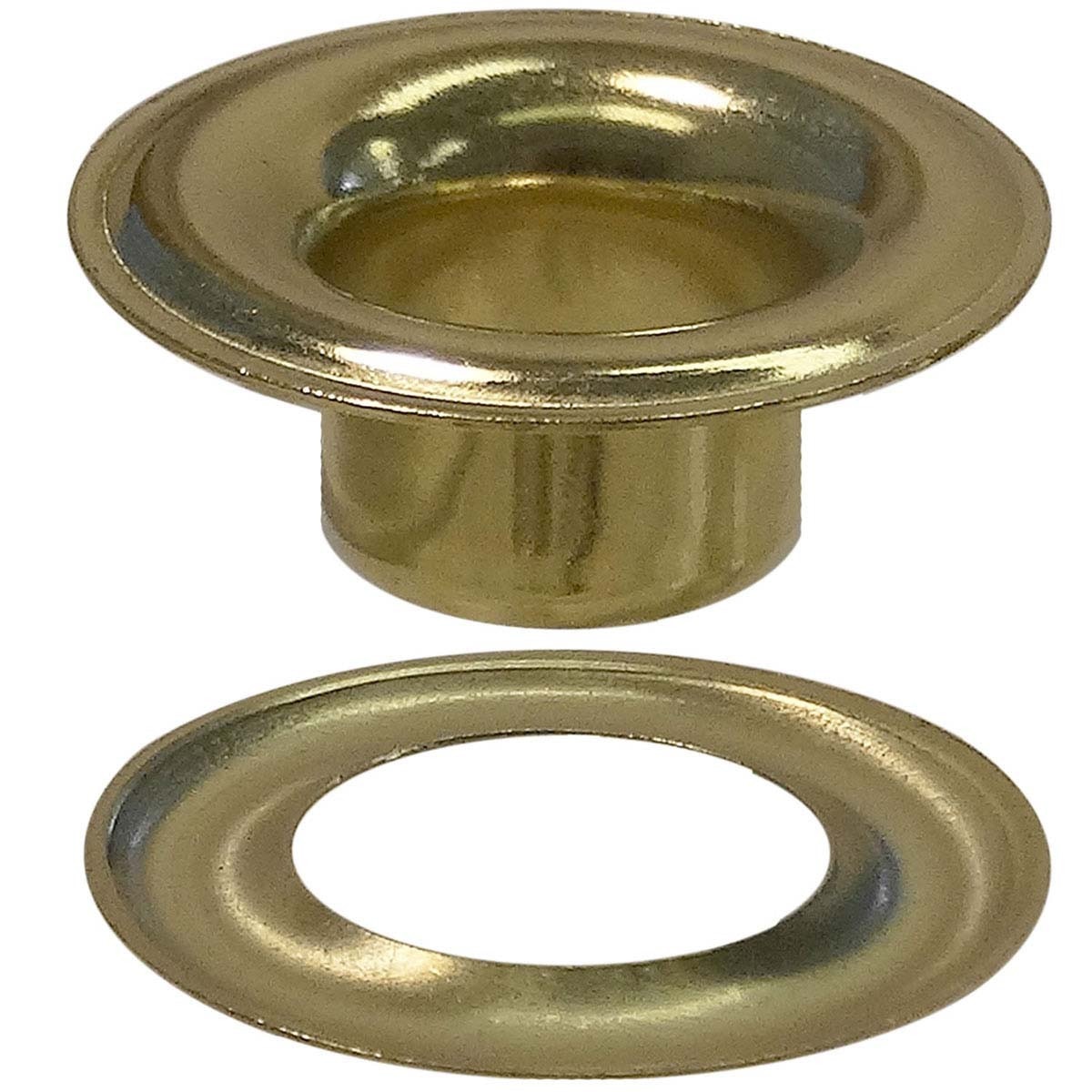

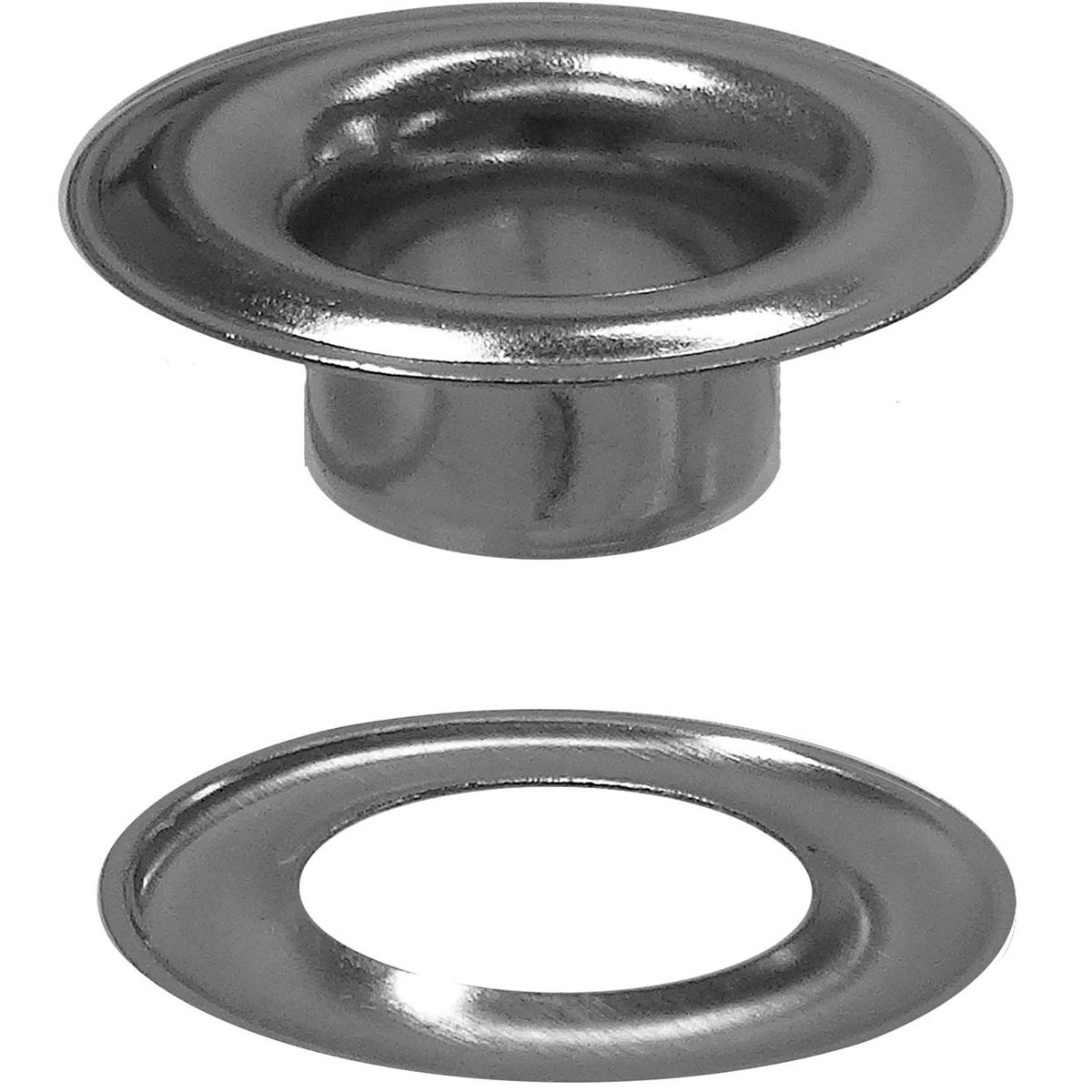

- Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
- Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
- Technical Note: This part conforms to the following mil spec(s): MILG16491 TYPE I, CLASS 1, SIZE 6 and NASM16491 TYPE I, CLASS 1, SIZE 6
