#6 ROLLED RIM GROMMET and SPUR WASHER BRASS (6RRGSW)
Details
Stimpson’s #6 brass rolled rim grommet and spur washer offers the greatest strength of setting for a variety of applications. Available in three finishes, the #6 rolled rim grommet features a hole size of 3/4”, a length under flange of .420”, and a metal thickness of .025”. The inside diameter of the spur washer is .875”, with an outside diameter of 1.505”, and a metal thickness of .025”. Stimpson’s #6 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. This multipurpose grommet and washer combination can be used in a variety of materials including industrial fabrics, marine canvas, boat covers, awnings, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #6 grommets and spur washers ensuring installation runs smoothly and efficiently.
- Material: Brass
- Grommet (inches):
- Hole Size: 3/4"
- Flange Diameter: 1.535"
- Length Under Flange: .420"
- Metal Thickness: .025"
- Washer (inches):
- Inside Diameter: .875"
- Outside Diameter: 1.505"
- Metal Thickness: .025"

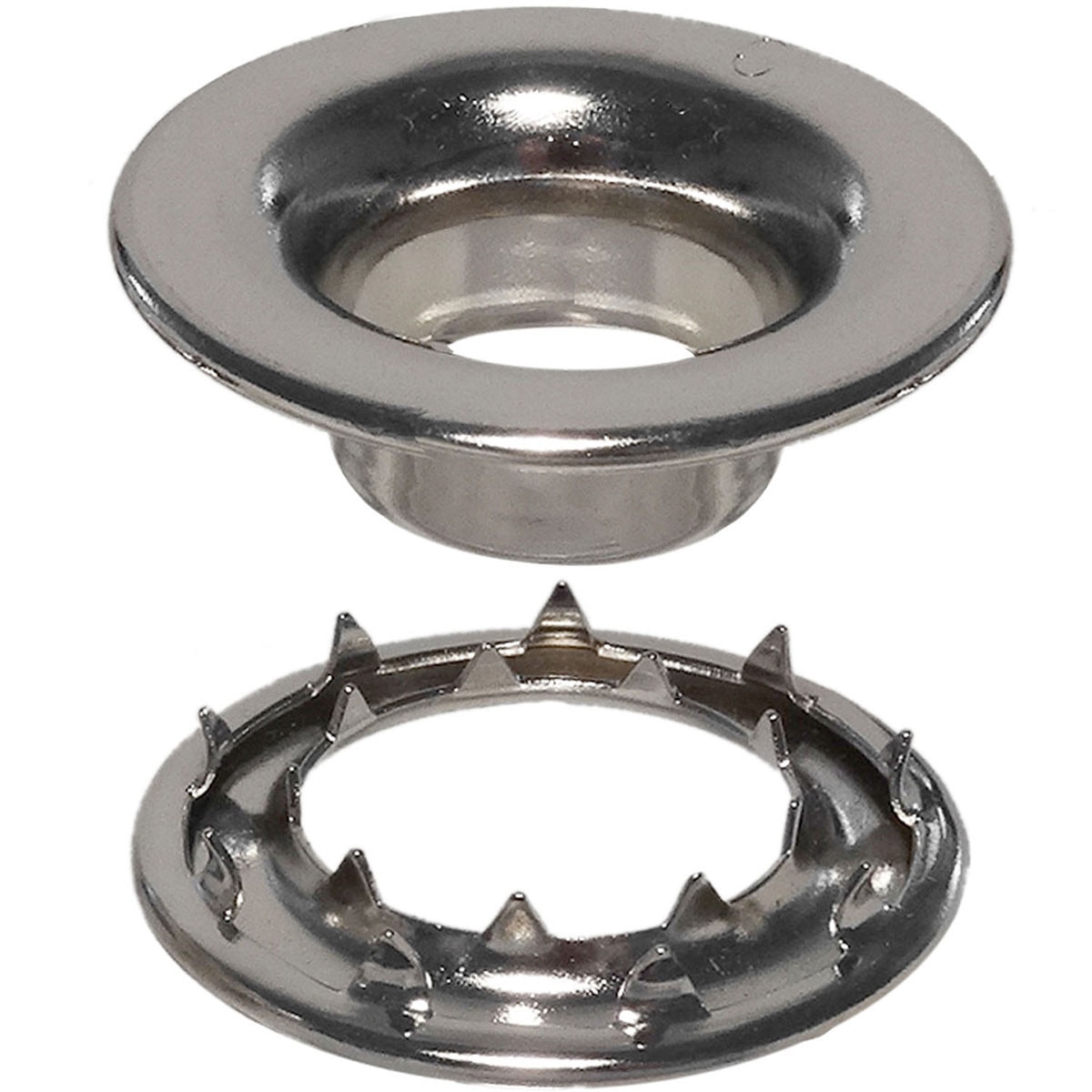

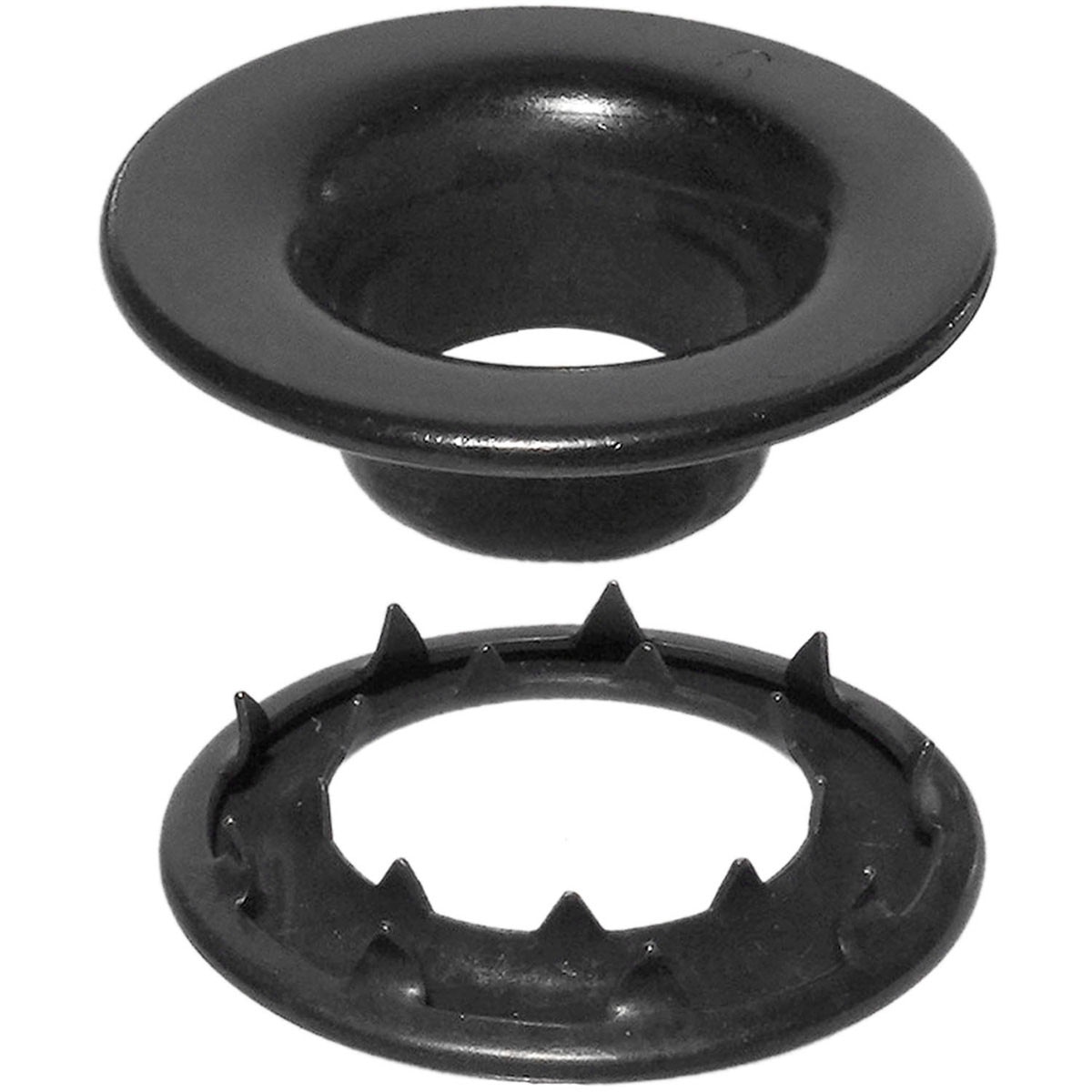

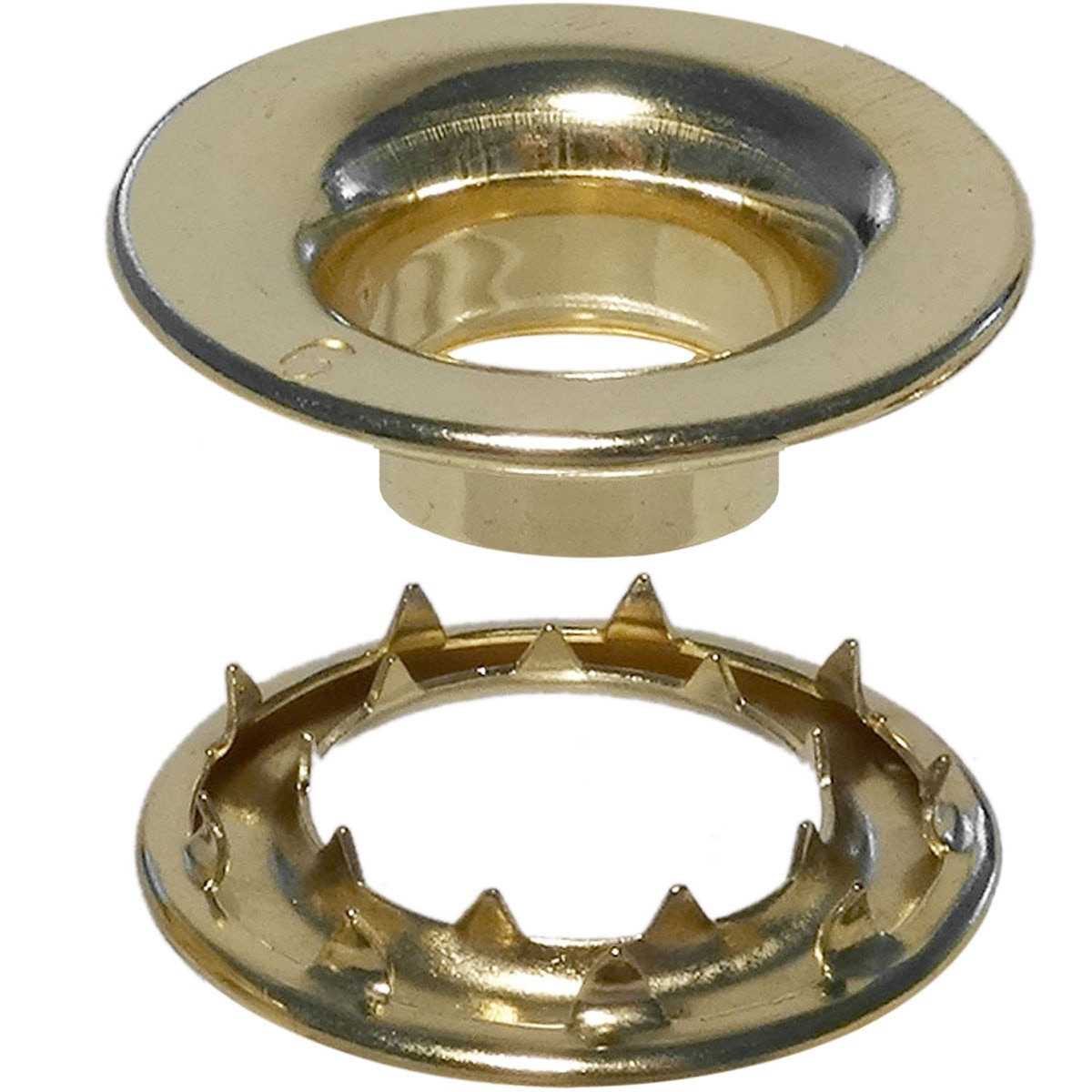

- Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
- Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
- Technical Note: This part conforms to the following mil spec(s): MILG16491 TYPE III, CLASS 1, SIZE 6 and NASM16491 TYPE III, CLASS 1, SIZE 6
