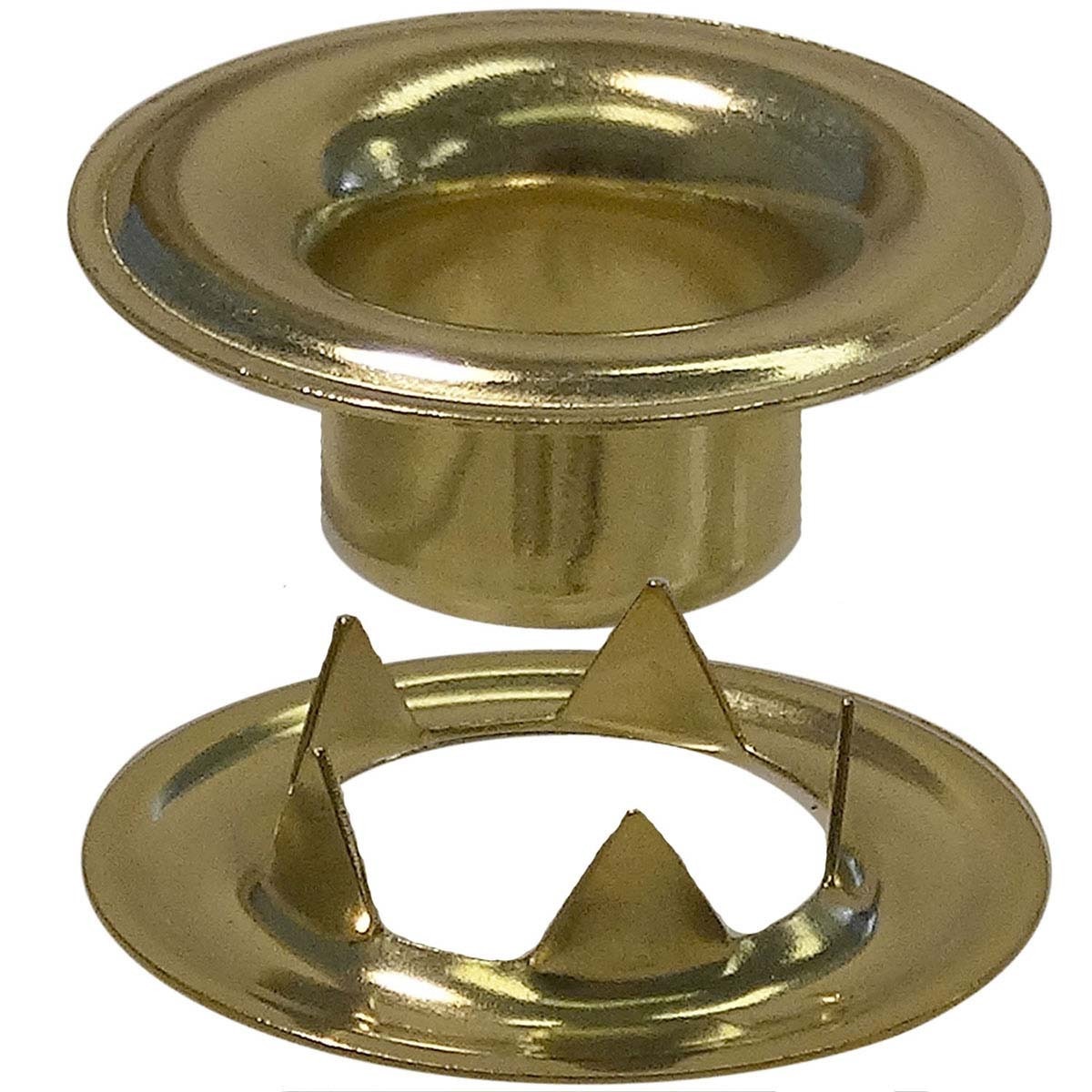

Stimpson’s #5 sheet metal grommet and teeth washer locks on fabric and other woven materials for a secure setting. The teeth on the washer provide a firmer, tighter grasp while simultaneously preventing the grommet from spinning once set. Available in three finishes, the #5 features a hole size of 5/8”, a length under flange of .330”, and a metal thickness of .016”. The inside diameter of the teeth washer is .720”, with an outside diameter of 1.190”, and a metal thickness of .017”. This multipurpose grommet and teeth washer combination can be used in a variety of materials and applications including industrial fabrics, canvas, leather, heavy-duty tarps, drapery, curtains, and vinyl banners. In order to set plain grommets with teeth washers, pre-punched holes in material are required unless they are used in conjunction with equipment designed to cut a hole and set the grommet. Manual, semi-automatic and fully-automatic grommet setting machines easily set #5 grommets and teeth washers ensuring installation runs smoothly and efficiently.
Hole Size: 5/8"
Flange Diameter: 1.220"
Length Under Flange: .330"
Metal Thickness: .016"
Inside Diameter: .720"
Outside Diameter: 1.190"
Metal Thickness: .017"

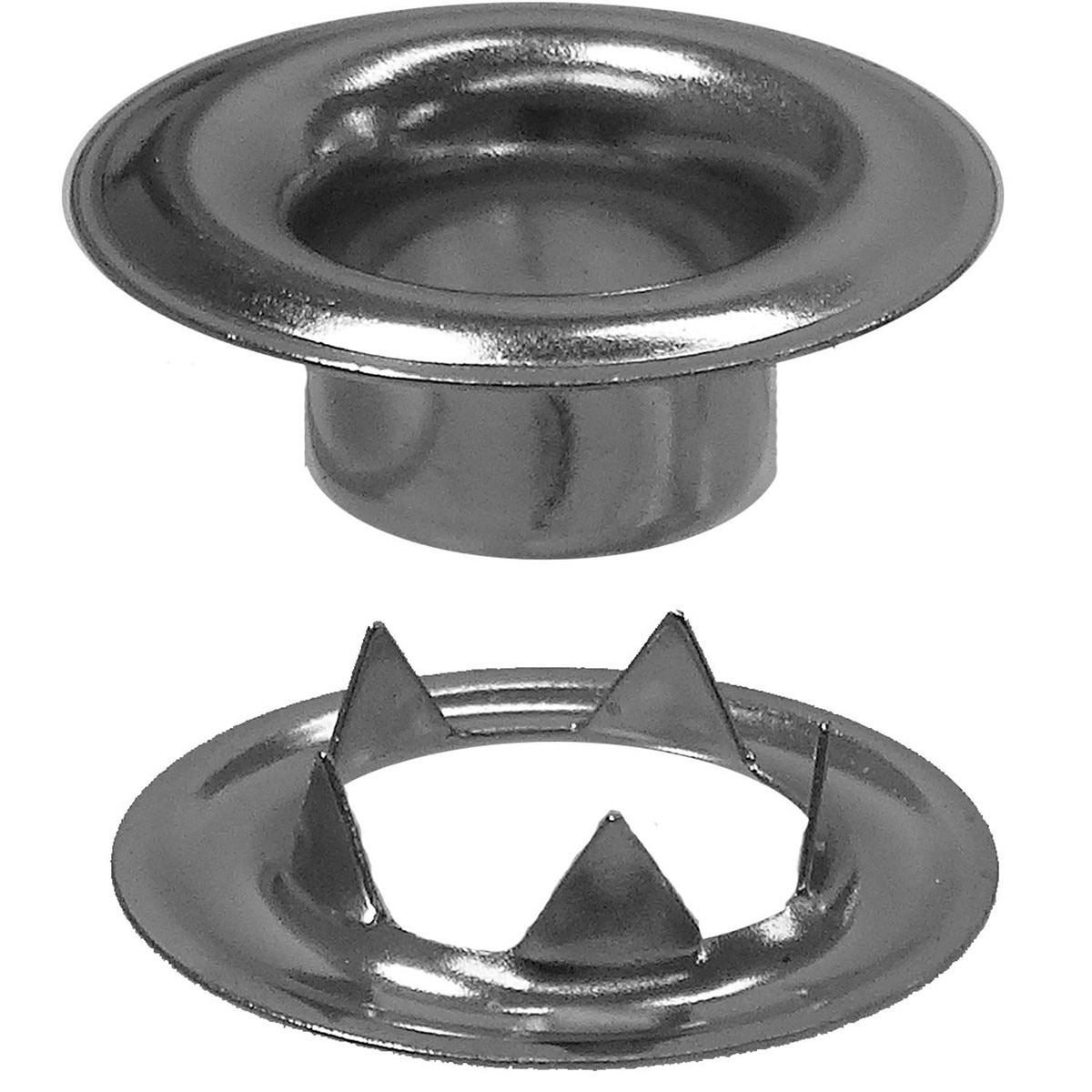

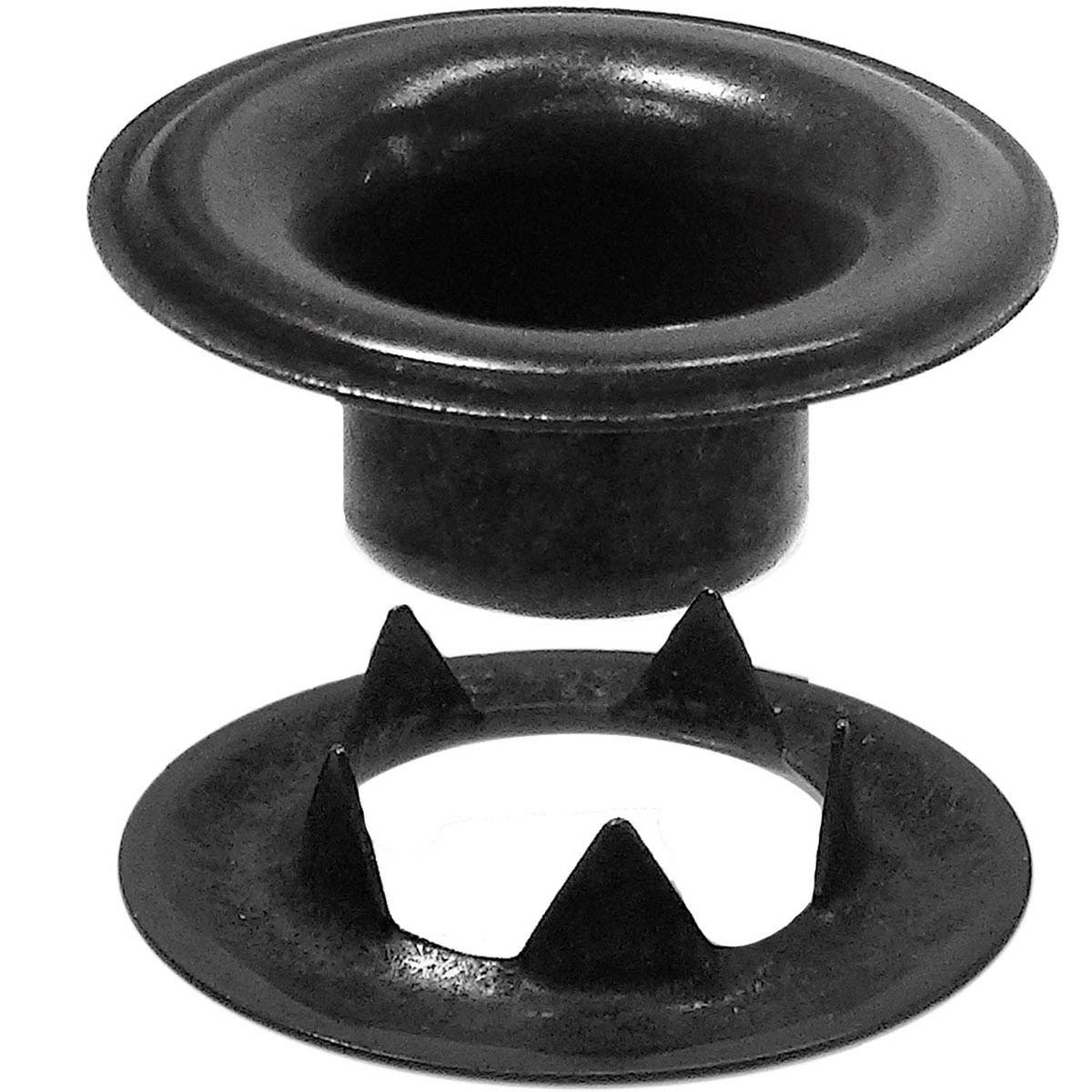

Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
Technical Note: This part conforms to the following mil spec(s): MILG16491 TYPE II, CLASS 1, SIZE 5 and NASM16491 TYPE II, CLASS 1 (plain brass) CLASS 3 (Brass Dull Black), SIZE 5
This part conforms to the following military specifications: NASM16491, Type II, Class 1 (Plain Brass), Class 2 (Brass Nickel), Class 3 (Brass Dull Black), Size 5
