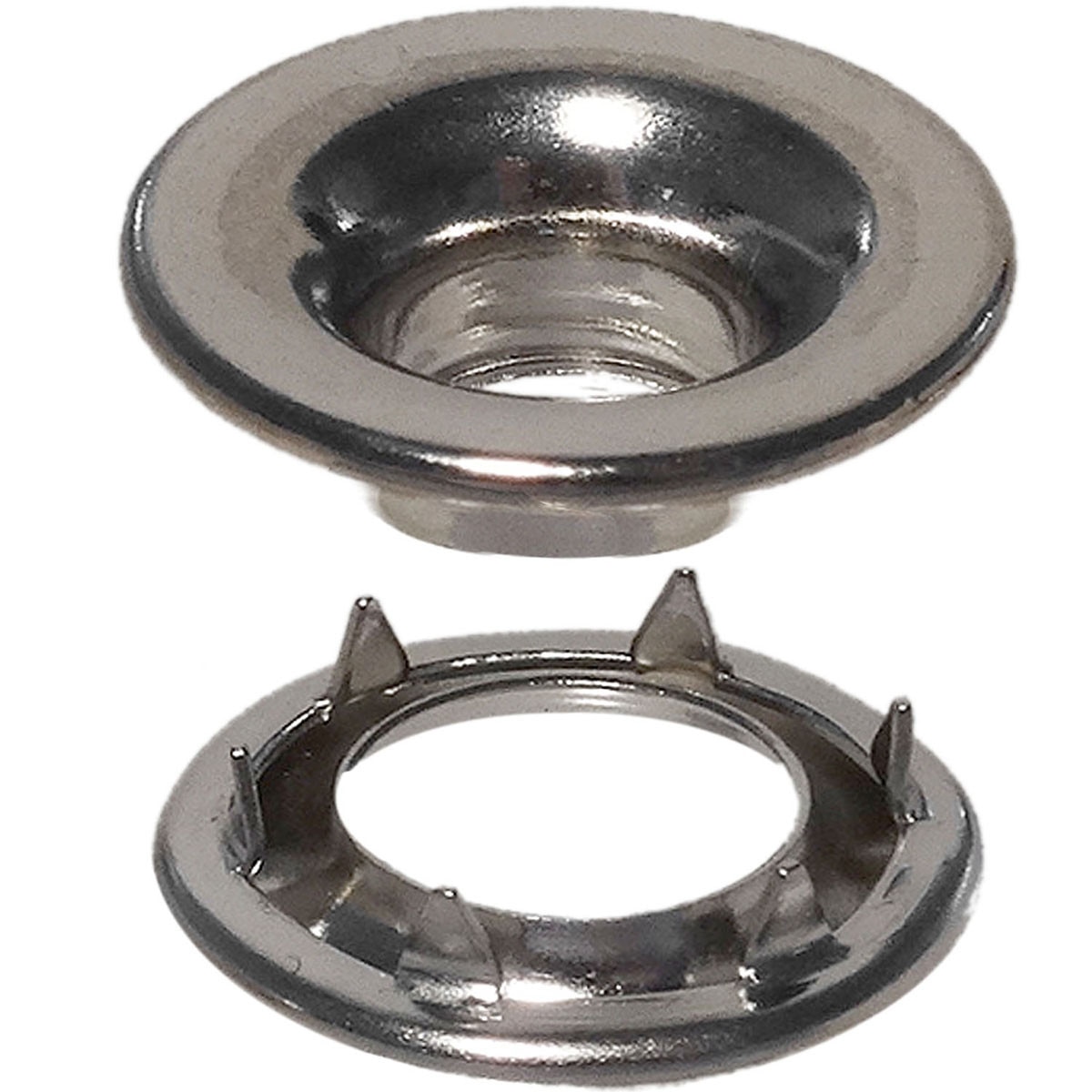

#4 ROLLED RIM GROMMET and SPUR WASHER MARINE GRADE STAINLESS (4RRGSWSSM)

Stimpson’s #4 stainless steel rolled rim grommet and spur washer offers the greatest strength of setting for a variety of applications. The #4 rolled rim grommet features a hole size of 9/16”, a length under flange of .320”, and a metal thickness of .020”. The inside diameter of the spur washer is .645”, with an outside diameter of 1.120”, and a metal thickness of .020”. Stimpson’s #4 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. This multipurpose marine grade grommet and spur washer combination can be used in a variety of materials including industrial fabrics, marine canvas, boat covers, awnings, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #4 grommets and spur washers ensuring installation runs smoothly and efficiently.

• Grommet (inches):
• Hole Size: 9/16"
• Flange Diameter: 1.120"
• Length Under Flange: .320"
• Metal Thickness: .020"

• Washer (inches):
• Inside Diameter: .645"
• Outside Diameter: 1.120"
• Metal Thickness: .020"
• Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
• Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
