$50.60 to $1,049.95
(0)No Reviews yet

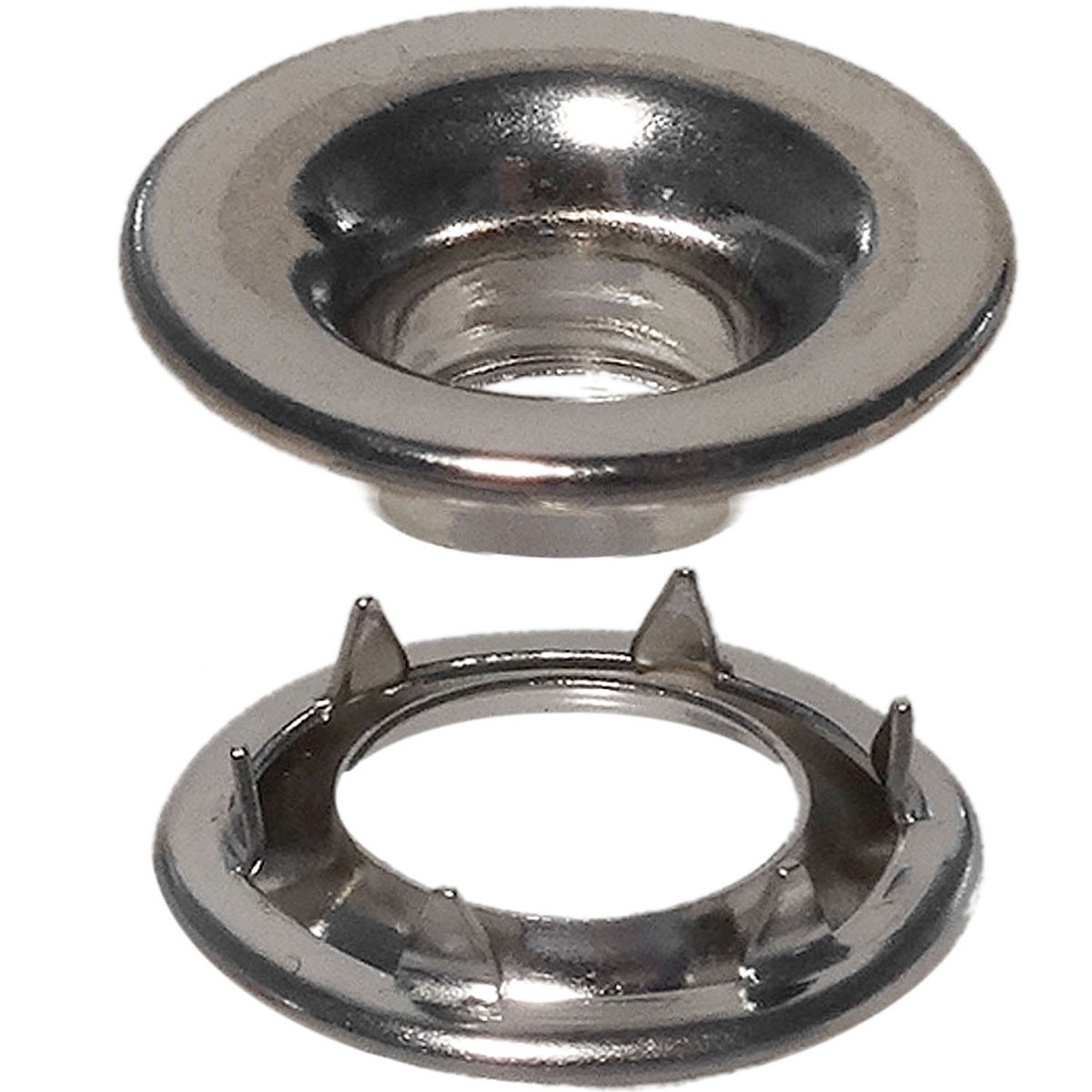

Stimpson’s E-Series light gauge #4 stainless steel rolled rim grommets and spur washers and self-piercing grommets and washers offer the best of both worlds, the corrosion resistance of stainless steel and the weight savings of a lighter gauge. The #4 rolled rim grommet features a hole size of 9/16”, a length under flange of .320”, and a metal thickness of .011”. The inside diameter of the spur washer is .645”, with an outside diameter of 1.120”, and a metal thickness of .011”. Stimpson’s #4 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. Stimpson E-Series rolled rim grommets and spur washers work well with a variety of knit, woven, and non-woven industrial fabrics as long as a hole has been pre-punched in the material. Manual, semi-automatic and fully-automatic grommet setting machines easily set E-Series #4 grommets and spur washers ensuring installation runs smoothly and efficiently.

  • Material: 304 Stainless Steel
  • Grommet (inches):
    • Hole Size: 9/16"
    • Flange Diameter: 1.120"
    • Length Under Flange: .320"
    • Metal Thickness: .011"
  • Washer (inches):
    • Inside Diameter: .645"
    • Outside Diameter: 1.120"
    • Metal Thickness: .011"
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
  • Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
