#3 SHEET METAL GROMMET and WASHER MARINE GRADE STAINLESS STEEL 304 (3GWSSM)
Details

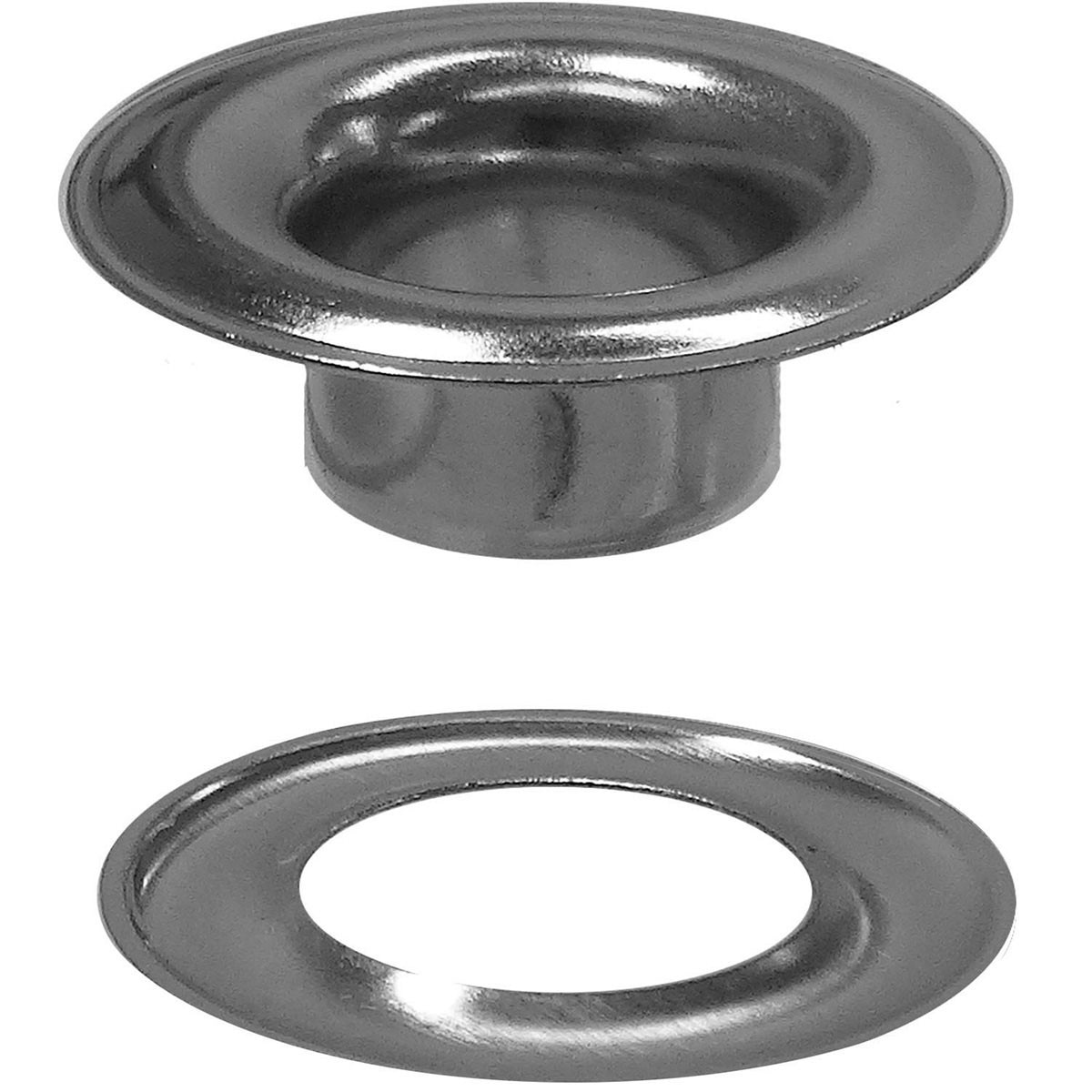

Stimpson’s #3 stainless steel grommet and plain washer provide basic hole reinforcement and versatility for a wide variety of applications. The marine grade #3 grommet features a hole size of 7/16”, a length under flange of .295”, and a metal thickness of .014”. The inside diameter of the plain washer is .530”, with an outside diameter of .955", and a metal thickness of .013”. This multipurpose grommet and washer combination can be used in a variety of materials industrial fabrics, marine canvas, boat covers, awnings, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #3 grommets and plain washers ensuring installation runs smoothly and efficiently.
- Material: Stainless Steel
- Grommet (inches):
- Hole Size: 7/16"
- Flange Diameter: .970"
- Length Under Flange: .295"
- Metal Thickness: .014"
- Washer (inches):
- Inside Diameter: .530"
- Outside Diameter: .955"
- Metal Thickness: .013"
- Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
- Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
