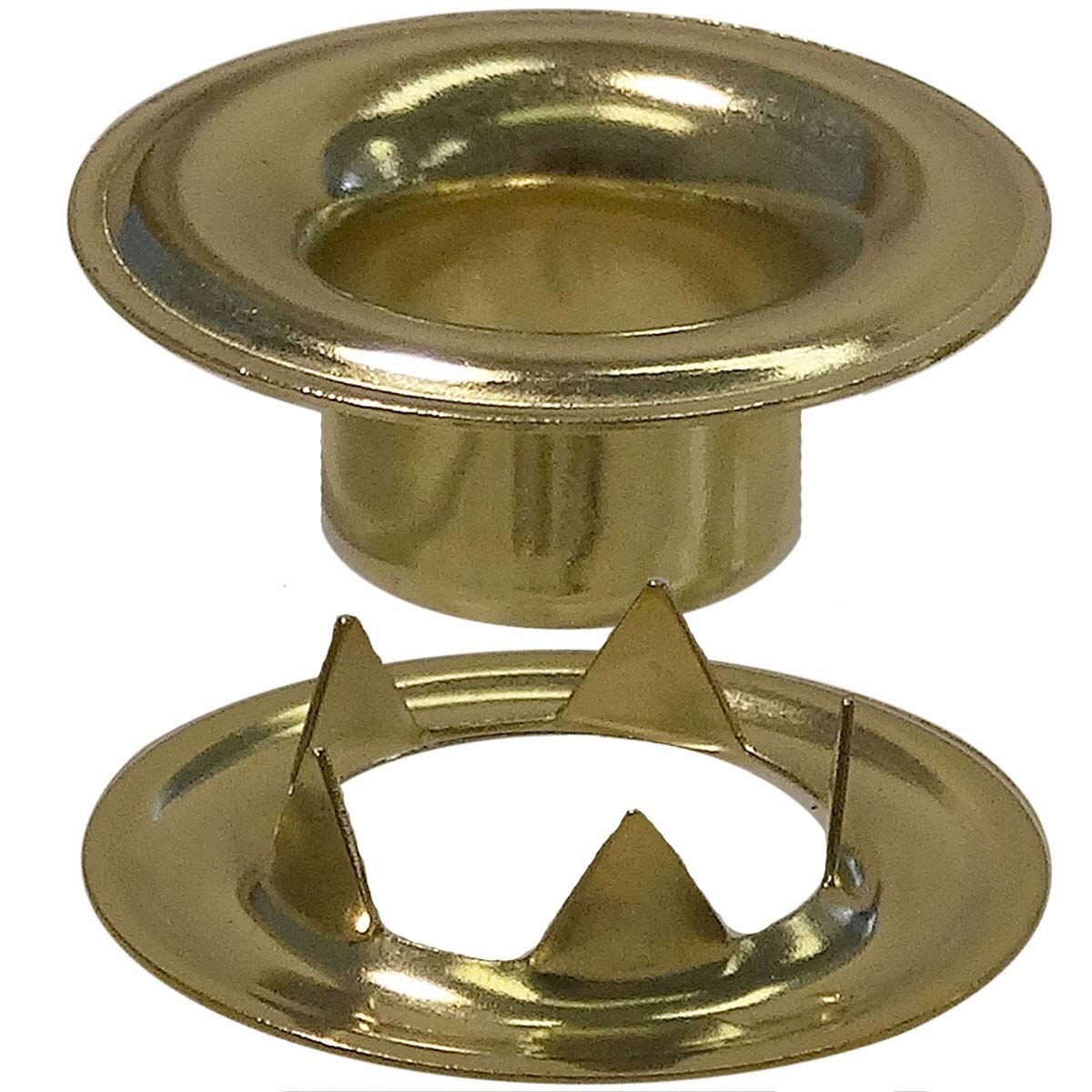

Stimpson’s #3 sheet metal grommet and teeth washer locks on fabric and other woven materials for a secure setting. The teeth on the washer provide a firmer, tighter grasp while simultaneously preventing the grommet from spinning once set. Available in three finishes, the #3 features a hole size of 7/16”, a length under flange of .295” and a metal thickness of .014”. The inside diameter of the teeth washer is .545”, with an outside diameter of .945”, and a metal thickness of .013”. This multipurpose grommet and teeth washer combination can be used in a variety of materials and applications including industrial fabrics, canvas, leather, heavy-duty tarps, drapery, curtains, and vinyl banners. In order to set plain grommets with teeth washers, pre-punched holes in material are required unless they are used in conjunction with equipment designed to cut a hole and set the grommet. Manual, semi-automatic and fully-automatic grommet setting machines easily set #3 grommets and teeth washers ensuring installation runs smoothly and efficiently.
Hole Size: 7/16"
Flange Diameter: .970"
Length Under Flange: .295"
Metal Thickness: .014"
Inside Diameter: .545"
Outside Diameter: .945"
Metal Thickness: .013"

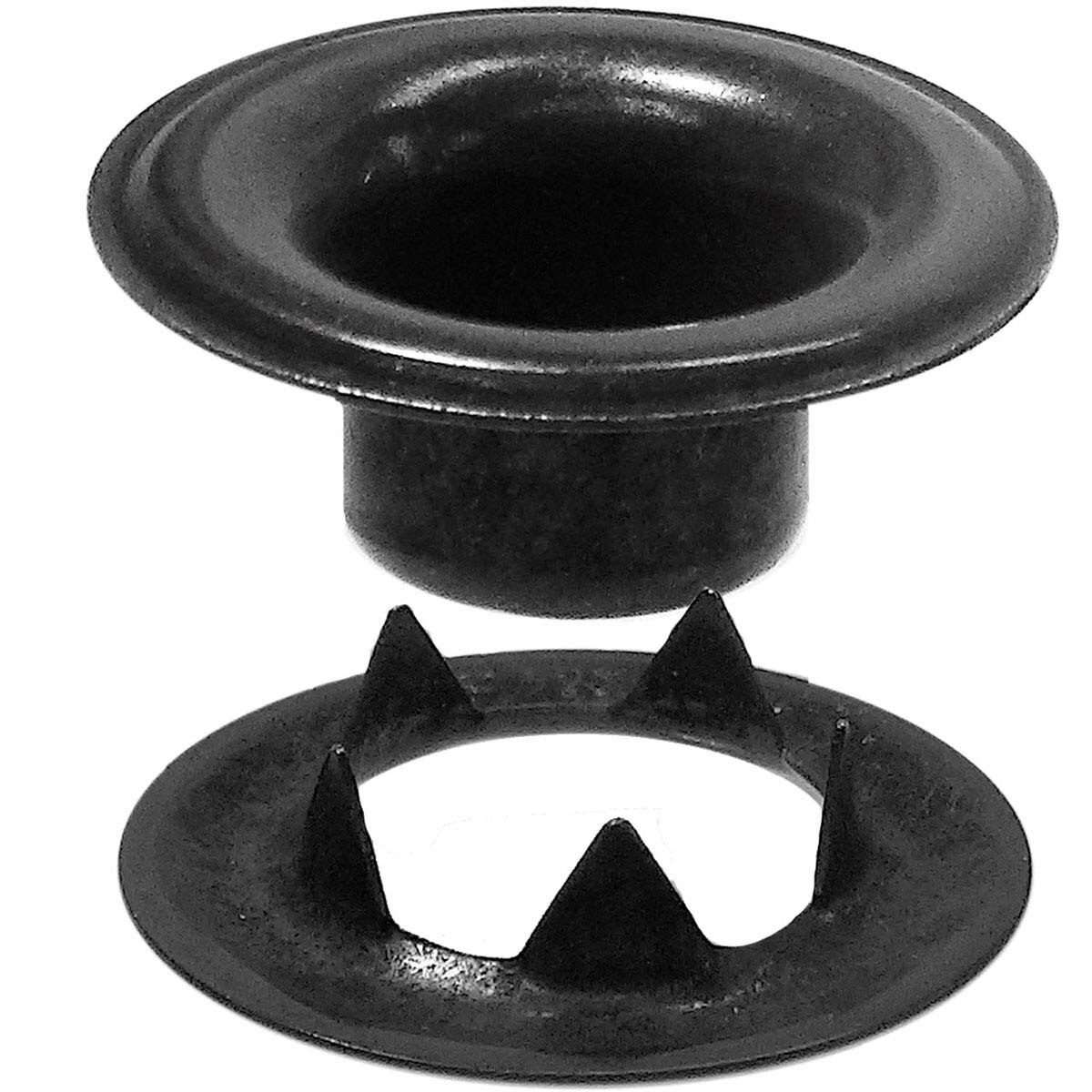

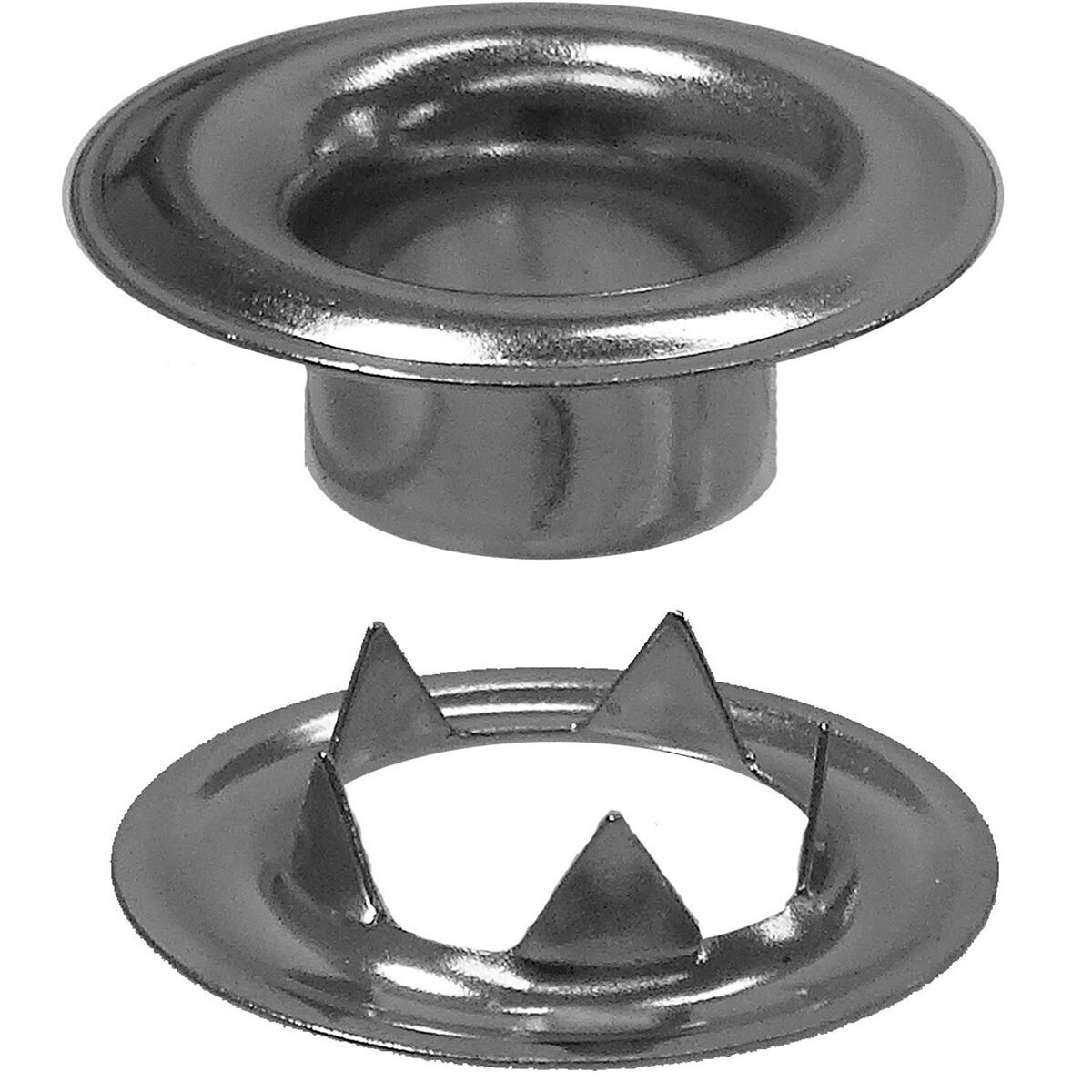

Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
This part conforms to the following military specifications: NASM16491, Type II, Class 1 (Plain Brass), Class 2 (Brass Nickel), Class 3 (Brass Dull Black), Size 3
