#3 ROLLED RIM GROMMET and SPUR WASHER MARINE GRADE STAINLESS (3RRGSWSSM)
Details

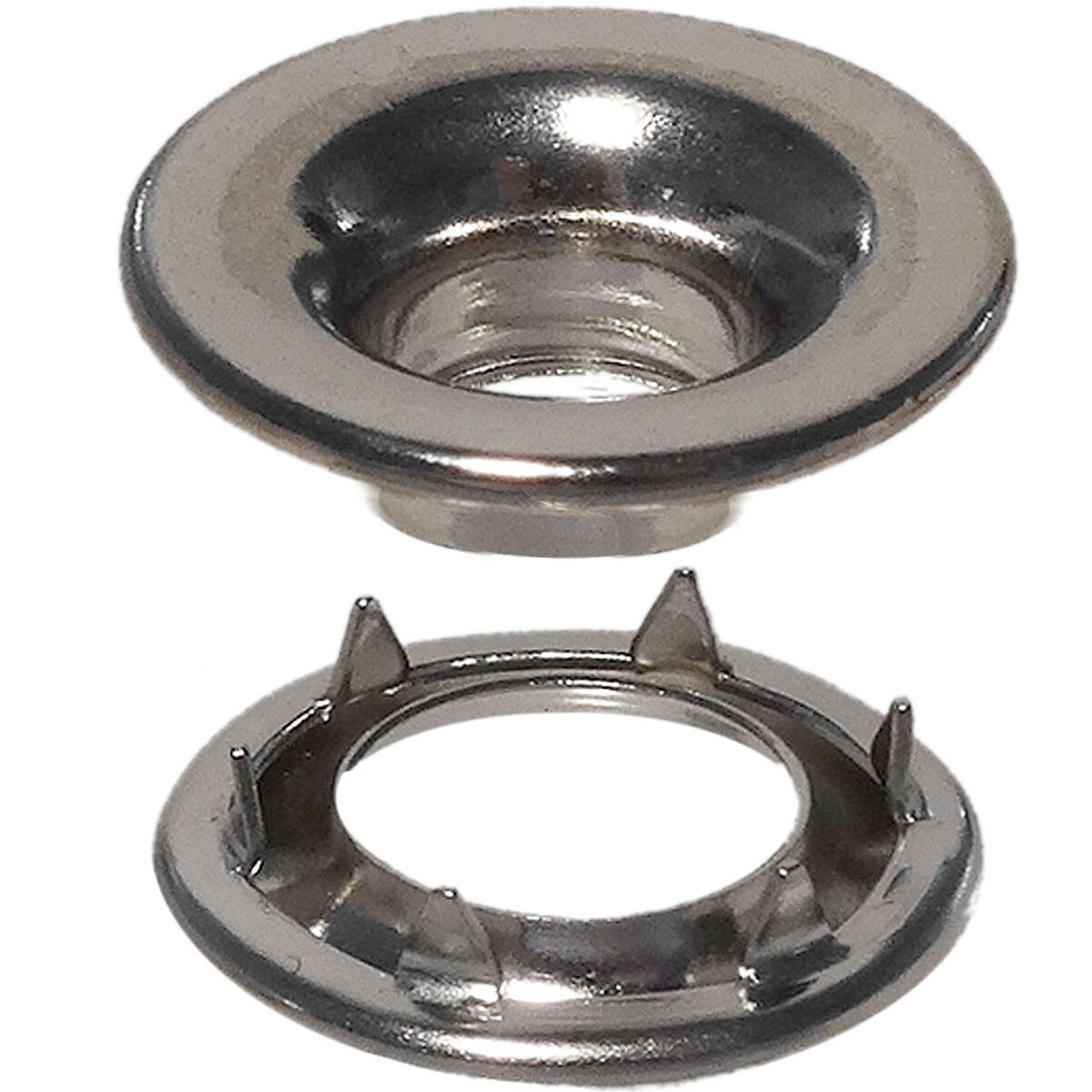

Stimpson’s #3 stainless steel rolled rim grommet and spur washer offers the greatest strength of setting for a variety of applications. The #3 rolled rim grommet features a hole size of 15/32”, a length under flange of .255”, and a metal thickness of .020”. The inside diameter of the spur washer is .537”, with an outside diameter of .970”, and a metal thickness of .020”. Stimpson’s #3 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. This multipurpose marine grade grommet and spur washer combination can be used in a variety of materials including industrial fabrics, marine canvas, boat covers, awnings, and heavy-duty vinyl tarps, as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #3 grommets and spur washers ensuring installation runs smoothly and efficiently.
- Material: Marine Grade Stainless Steel
- Grommet (inches):
- Hole Size: 15/32"
- Flange Diameter: .970"
- Length Under Flange: .255"
- Metal Thickness: .020"
- Washer (inches):
- Inside Diameter: .537"
- Outside Diameter: .970"
- Metal Thickness: .020"
- Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
- Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
