#3 E RRG & SW STAINLESS STEEL 304 (3RRGSWSS)

SKU: X-E3RRGSWSS
$32.00 to $750.00
(0) No Reviews yet

Details

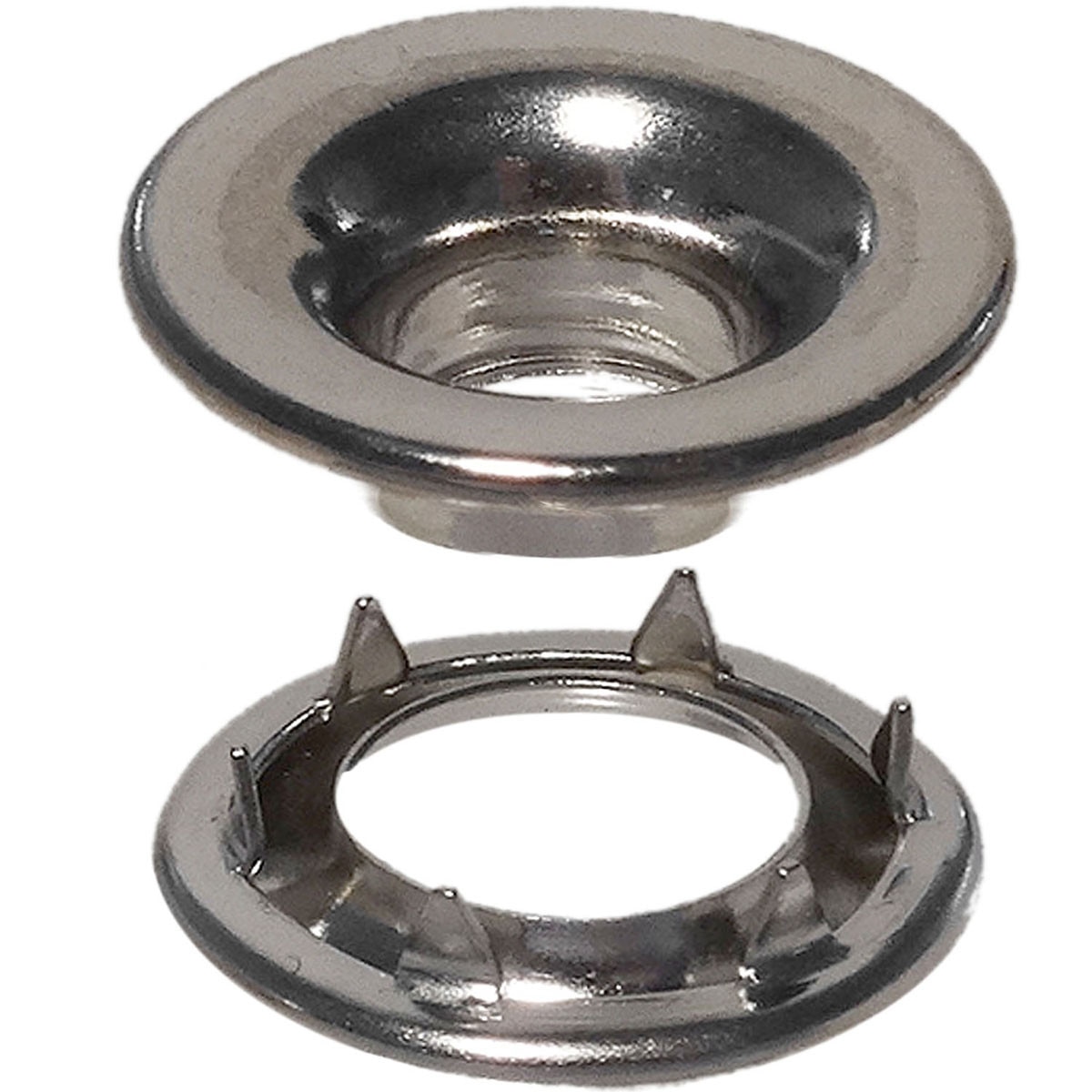

Stimpson’s E-Series light gauge #3 stainless steel rolled rim grommets and spur washers and self-piercing grommets and washers offer the best of both worlds, the corrosion resistance of stainless steel and the weight savings of a lighter gauge. The #3 rolled rim grommet features a hole size of 15/32”, a length under flange of .255”, and a metal thickness of .011”. The inside diameter of the spur washer is .537”, with an outside diameter of .970”, and a metal thickness of .011”. Stimpson’s #3 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. Stimpson E-Series rolled rim grommets and spur washers work well with a variety of knit, woven, and non-woven industrial fabrics as long as a hole has been pre-punched in the material. Manual, semi-automatic and fully-automatic grommet setting machines easily set E-Series #3 grommets and spur washers ensuring installation runs smoothly and efficiently.

  • Material: 304 Stainless Steel
  • Grommet (inches):
    • Hole Size: 15/32"
    • Flange Diameter: .970"
    • Length Under Flange: .255"
    • Metal Thickness: .011"
  • Washer (inches):
    • Inside Diameter: .537"
    • Outside Diameter: .970"
    • Metal Thickness: .011"
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
  • Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
