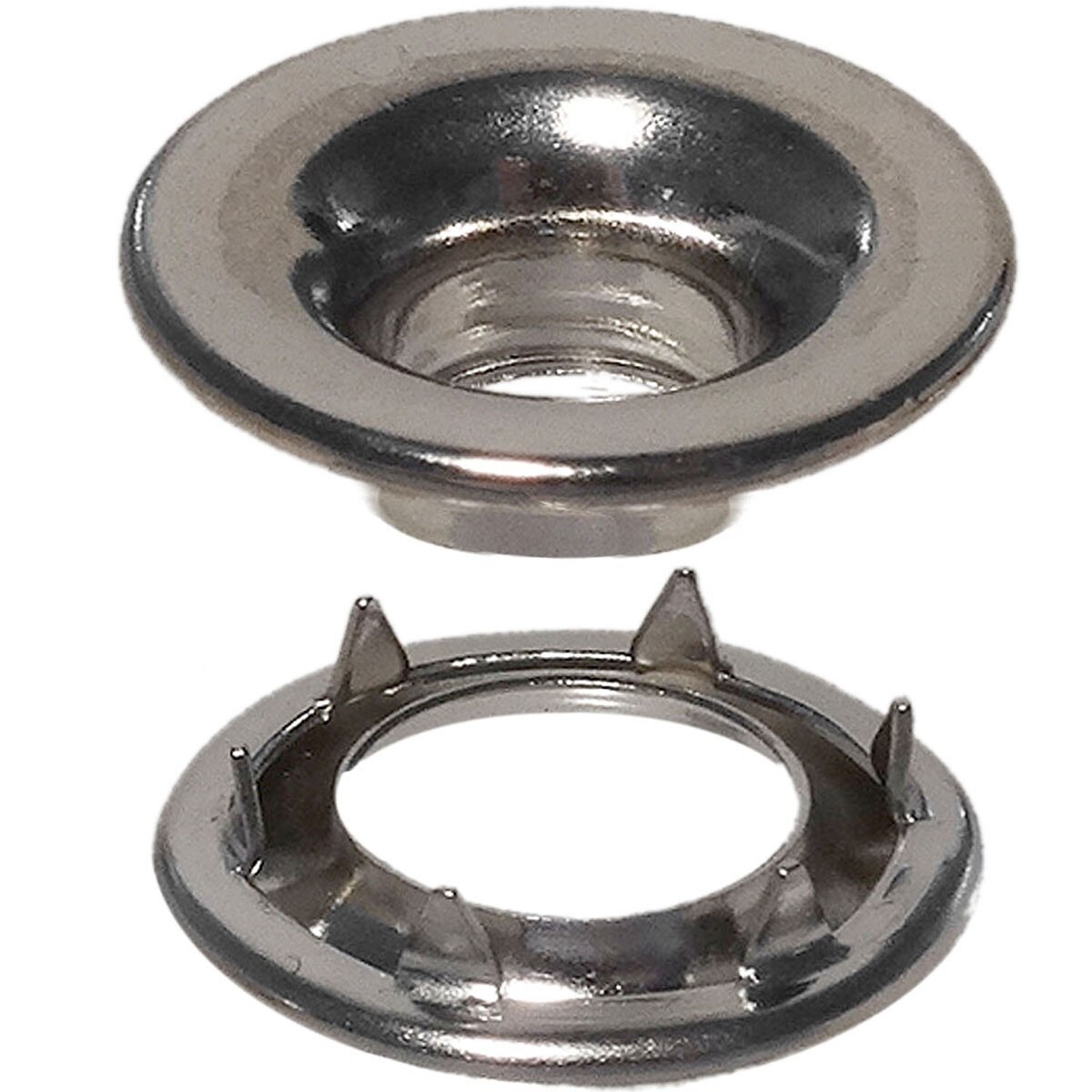

Stimpson’s E-Series light gauge #2 stainless steel rolled rim grommets and spur washers and self-piercing grommets and washers offer the best of both worlds, the corrosion resistance of stainless steel and the weight savings of a lighter gauge. The #2 rolled rim grommet features a hole size of 7/16”, a length under flange of .255”, and a metal thickness of .010”. The inside diameter of the spur washer is .512”, with an outside diameter of .890”, and a metal thickness of .010”. Stimpson’s #2 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. Stimpson E-Series rolled rim grommets and spur washers work well with a variety of knit, woven, and non-woven industrial fabrics as long as a hole has been pre-punched in the material. Manual, semi-automatic and fully-automatic grommet setting machines easily set E-Series #2 grommets and spur washers ensuring installation runs smoothly and efficiently.
  • Material: 304 Stainless Steel
  • Grommet (inches):
    • Hole Size: 7/16"
    • Flange Diameter: .890"
    • Length Under Flange: .255"
    • Metal Thickness: .010"
  • Washer (inches):
    • Inside Diameter: .512"
    • Outside Diameter: .890"
    • Metal Thickness: .010"
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
  • Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
