#10 ROLLED RIM GROMMET and SPUR WASHER BRASS (10RRGSW)

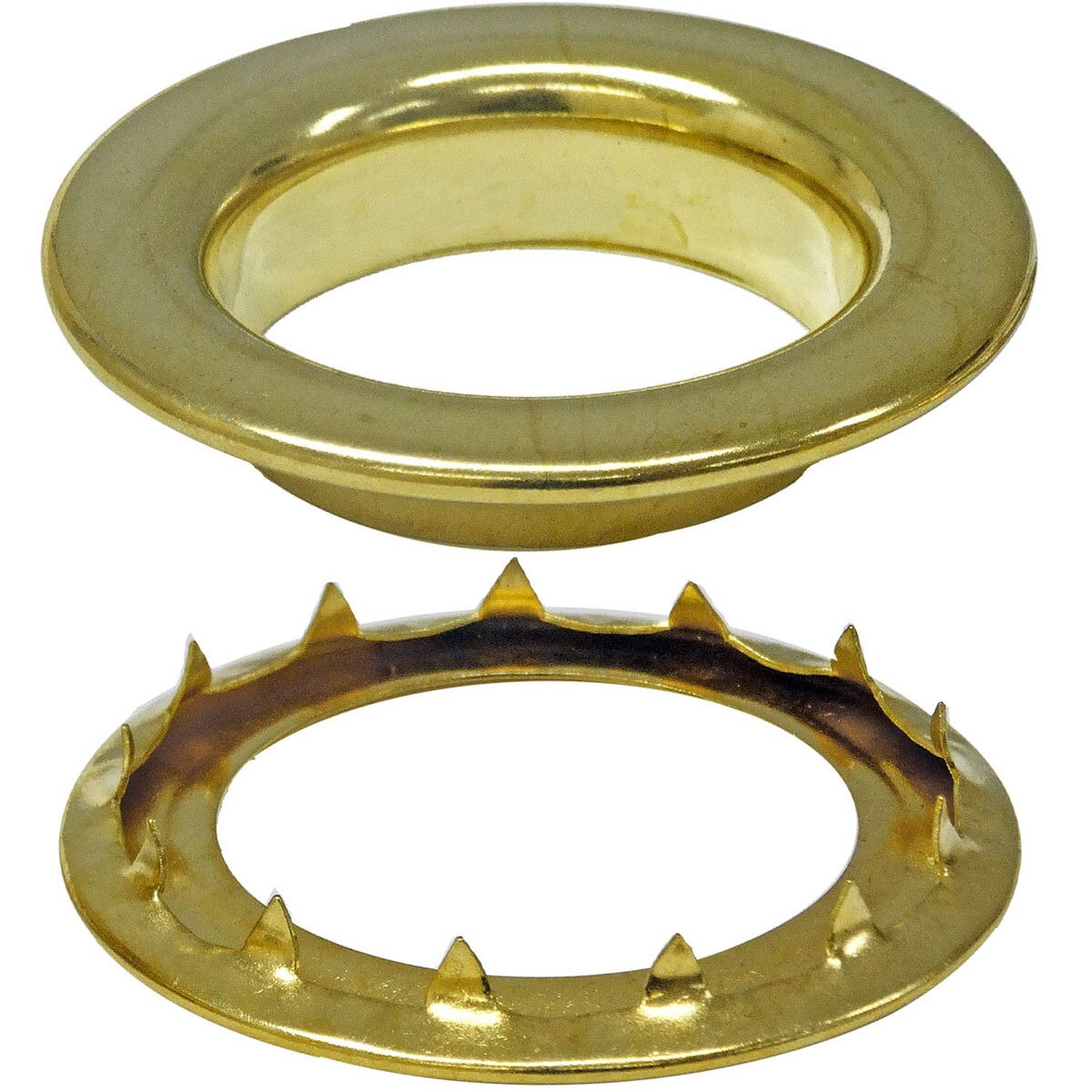

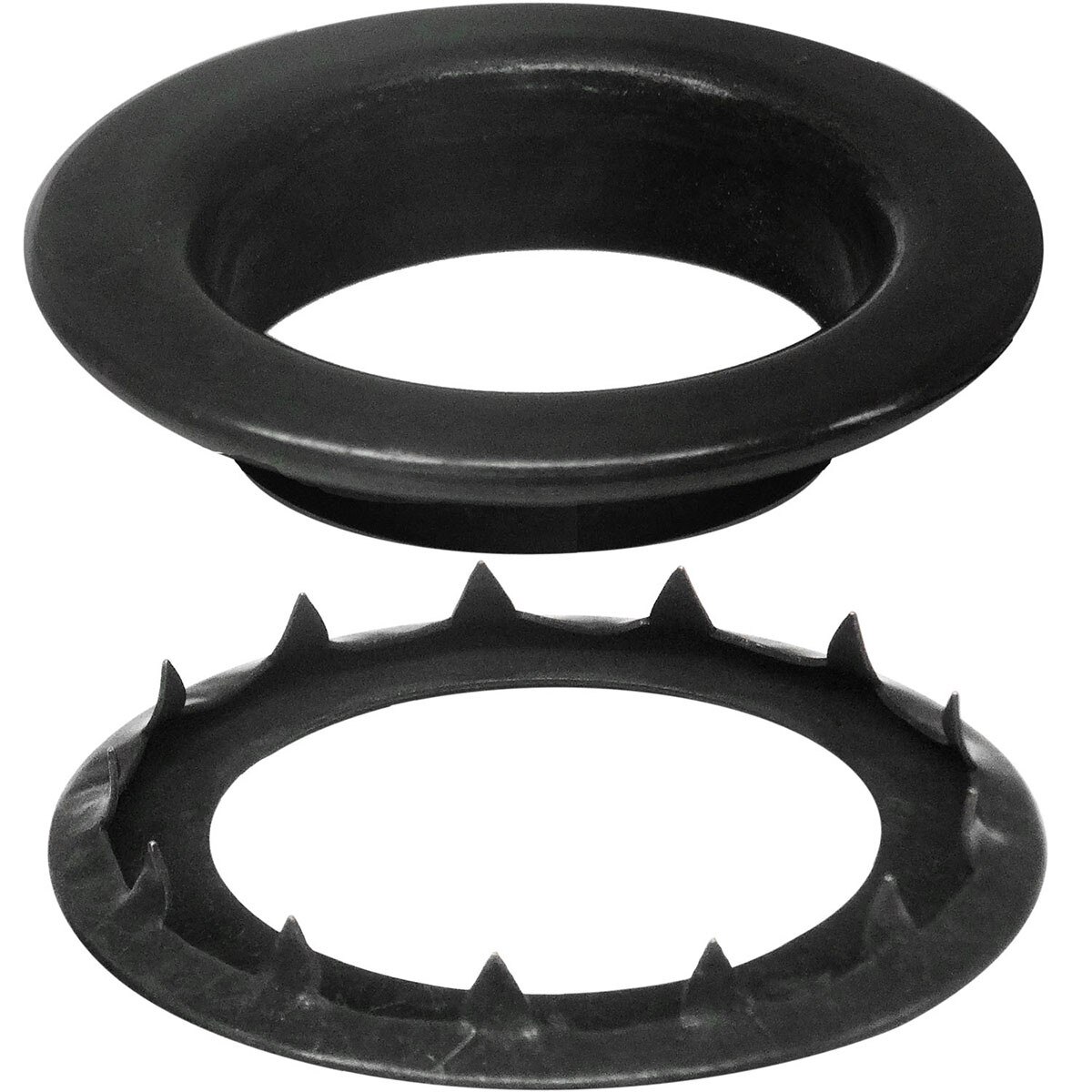

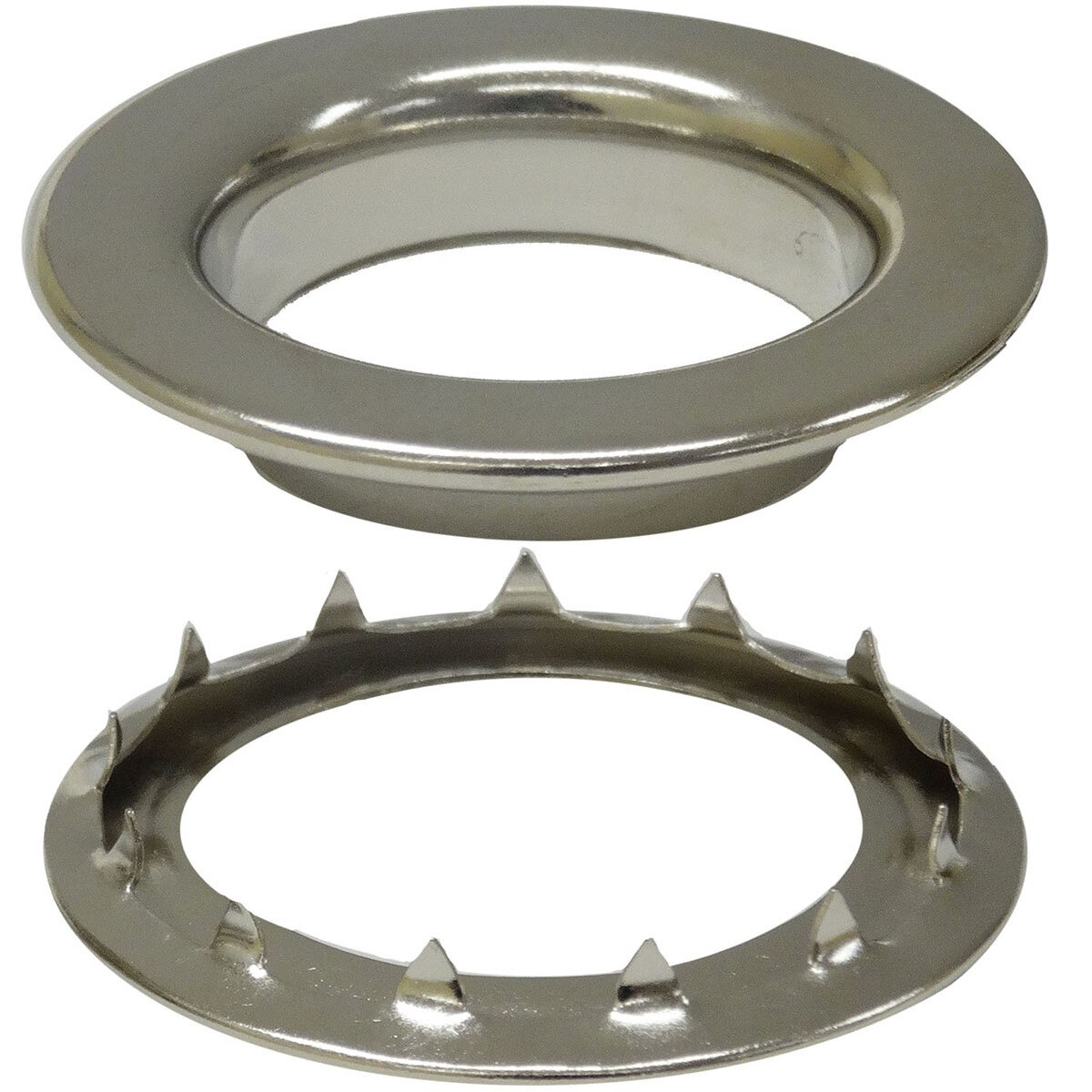

Stimpson’s #10 brass rolled rim grommet and spur washer offers the greatest strength of setting for a variety of applications. Available in three finishes, the #10 rolled rim grommet features a hole size of 1-1/2”, a length under flange of .355”, and a metal thickness of .020”. The inside diameter of the spur washer is 1.560”, with an outside diameter of 2.360”, and a metal thickness of .020”. Stimpson’s #10 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. This multipurpose grommet and washer combination can be used in a variety of materials including industrial fabrics, marine canvas, boat covers, awnings, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Grommet setting machines are available to easily set #10 grommets and spur washers ensuring installation runs smoothly and efficiently.
