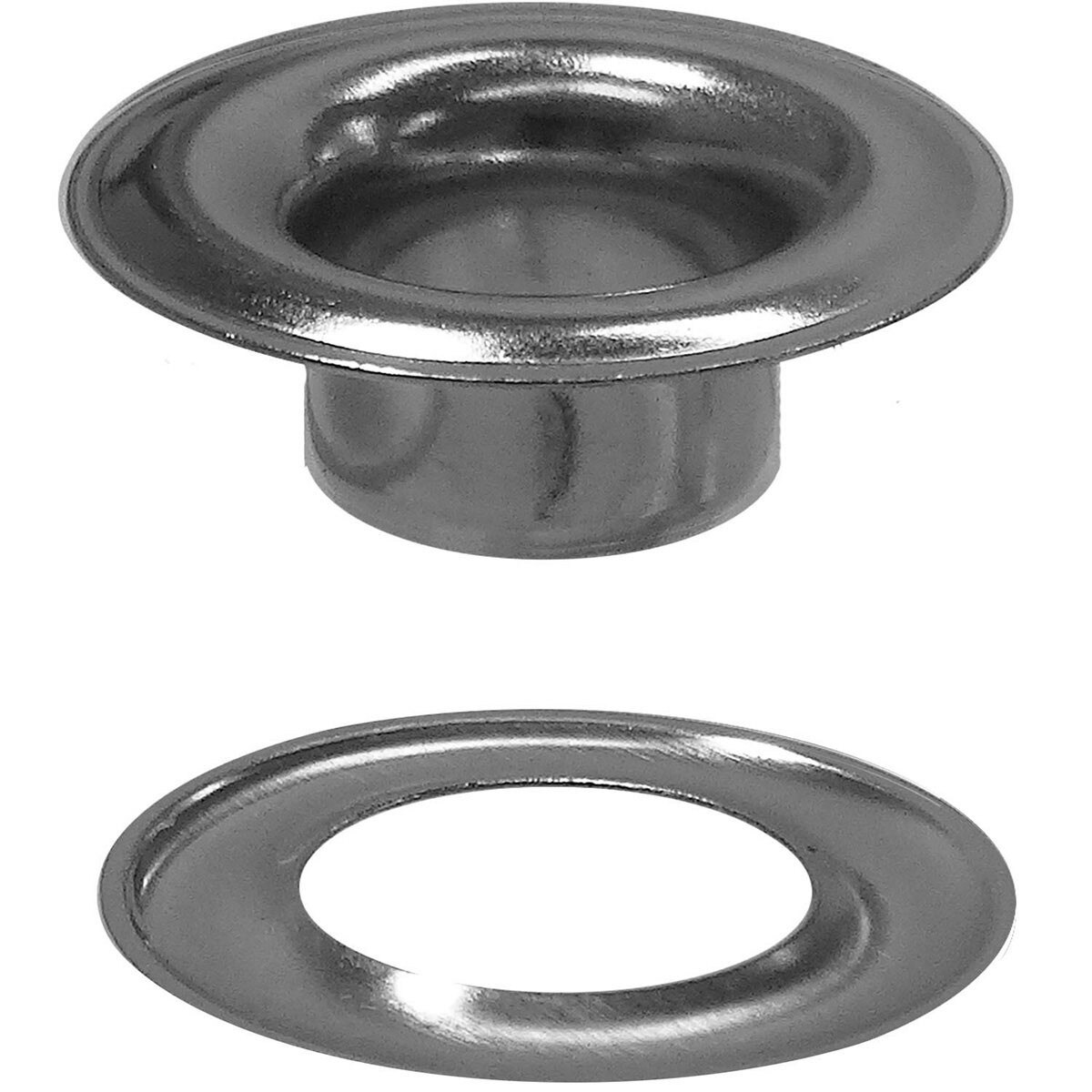

#1 SHEET METAL GROMMET and WASHER MARINE GRADE STAINLESS STEEL 304 (1GWSSM)
Details
Stimpson’s #1 stainless steel grommet and plain washer provide basic hole reinforcement and versatility for a wide variety of applications. The marine grade #1 grommet features a hole size of 9/32”, a length under flange of .185”, and a metal thickness of .012”. The inside diameter of the plain washer is .359”, with an outside diameter of .700”, and a metal thickness of .012”. This multipurpose marine grade grommet and washer combination can be used in a variety of materials including industrial fabrics, marine canvas, tarps, tents, boat covers, awnings, and heavy-duty vinyl tarps, as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #1 grommets and plain washers, ensuring installation runs smoothly and efficiently.
- Grommet (inches):
- Hole Size: 9/32"
- Flange Diameter: .687"
- Length Under Flange: .185"
- Metal Thickness: .012"
- Washer (inches):
- Inside Diameter: .359"
- Outside Diameter: .700"
- Metal Thickness: .012"
- Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
- Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
