#1 SHEET METAL GROMMET and WASHER BRASS (1GW)
Details
Stimpson’s #1 brass grommet and plain washer provide basic hole reinforcement and versatility for a wide variety of applications. Available in three finishes, the #1 grommet features a hole size of 9/32”, a length under flange of .185”, and a metal thickness of .012”. The inside diameter of the plain washer is .359”, with an outside diameter of .700”, and a metal thickness of .012”. This multipurpose grommet and washer combination can be used in a variety of materials including industrial fabrics, canvas, leather and heavy-duty vinyl tarps, as long as a hole has been pre-punched in the material. Manual, semi-automatic and fully-automatic grommet setting machines easily set #1 grommets and plain washers, ensuring installation runs smoothly and efficiently.
- Material: Brass
- Grommet (inches):
- Hole Size: 9/32"
- Flange Diameter: .687"
- Length Under Flange: .185"
- Metal Thickness: .012"
- Washer (inches):
- Inside Diameter: .359"
- Outside Diameter: .700"
- Metal Thickness: .012"

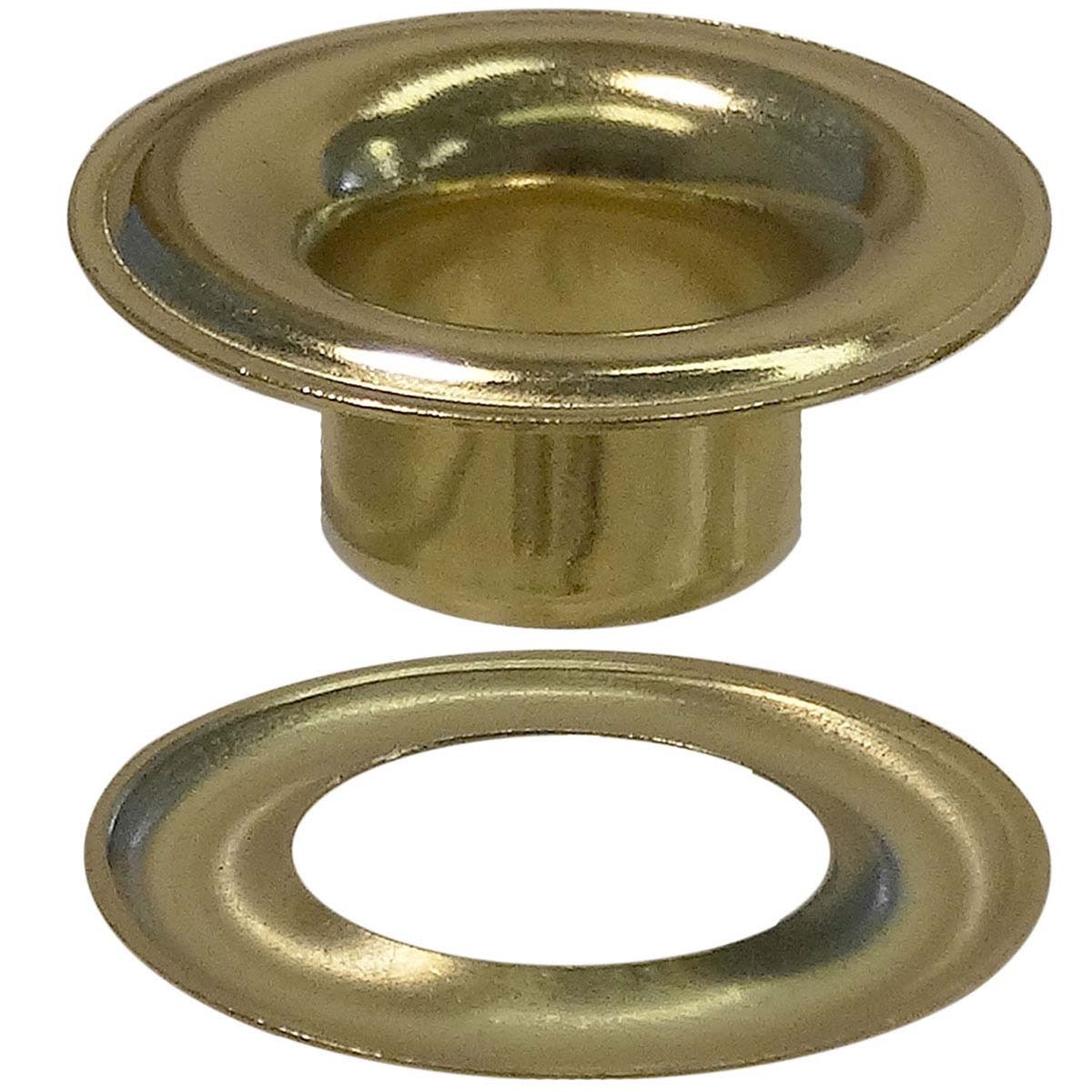

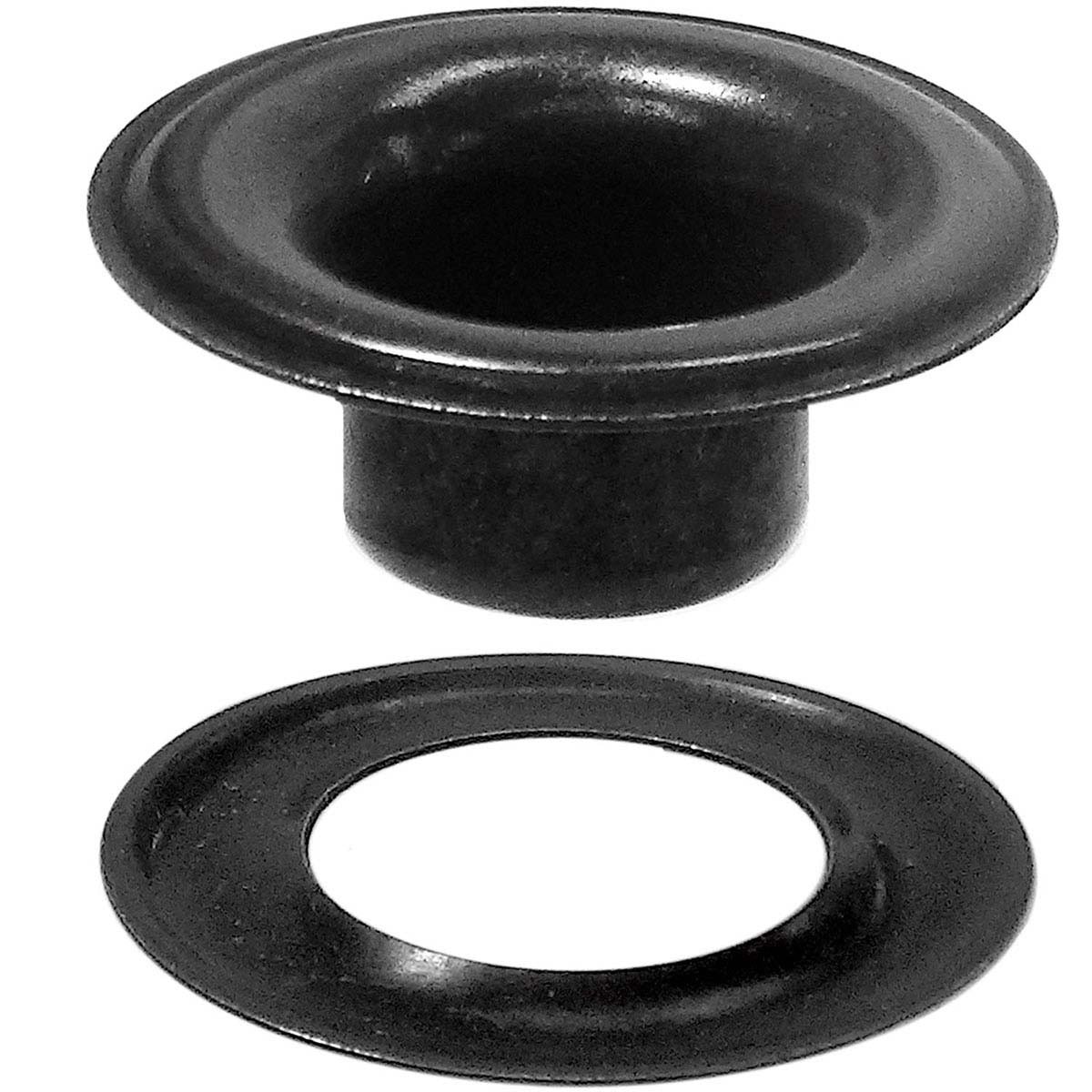

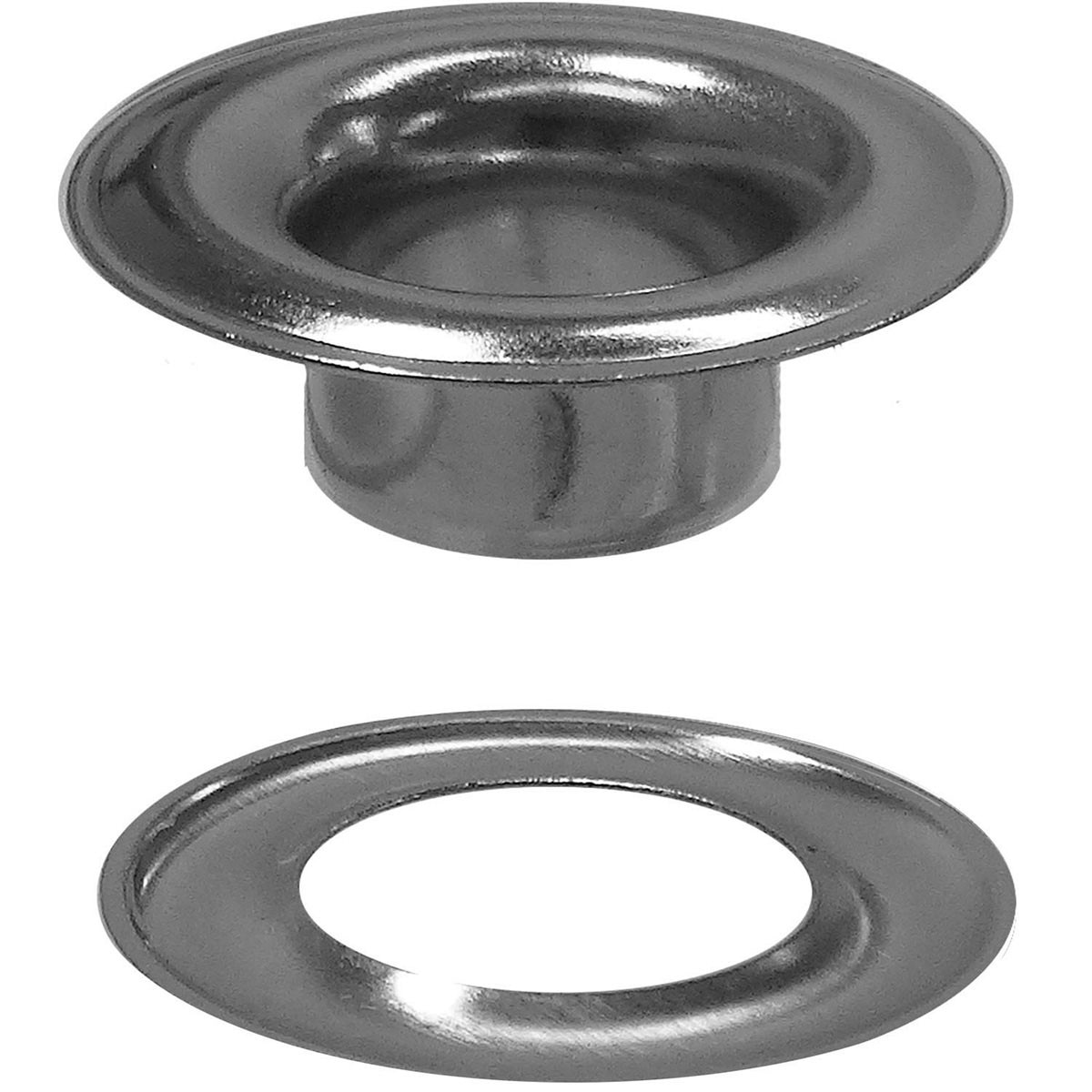

- Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
- Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
This part conforms to the following military specifications: NASM16491, Type I, Class 1 (plain brass), Class 2 (Brass Nickel), Class 3 (Brass Dull Black), Size 1 and NASM20230B1 (Plain Brass)
