#1 ROLLED RIM GROMMET and SPUR WASHER MARINE GRADE STAINLESS (1RRGSWSSM)

SKU: X-1RRGSWSSM
$28.00 to $774.20
(0) No Reviews yet

Details

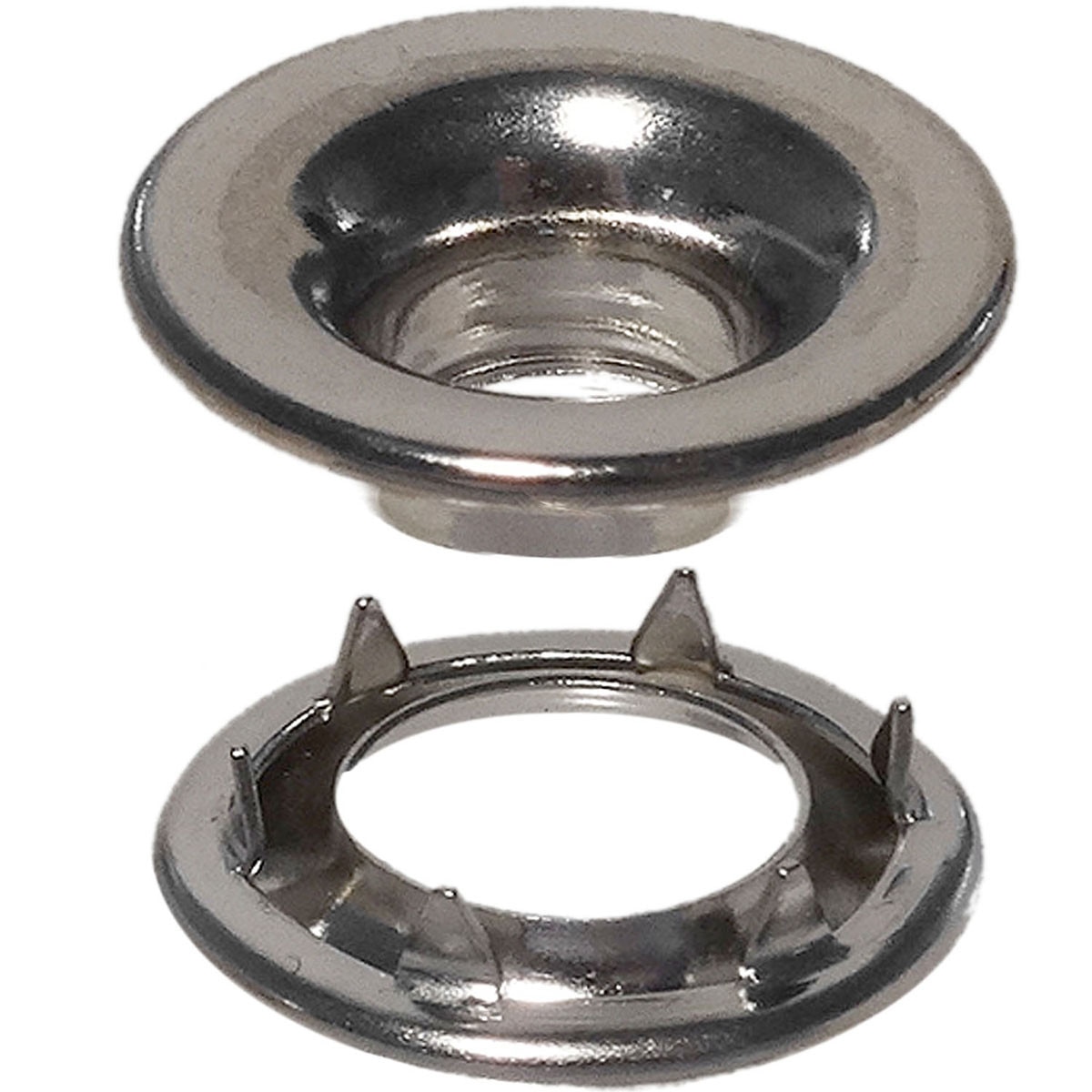

Stimpson’s #1 stainless steel rolled rim grommet and spur washer offers the greatest strength of setting for a variety of applications. The #1 rolled rim grommet features a hole size of 13/32”, a length under flange of .205”, and a metal thickness of .016”. The inside diameter of the spur washer is .455”, with an outside diameter of .790”, and a metal thickness of .016”. Stimpson’s #1 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. This multipurpose marine grade grommet and spur washer combination can be used in a variety of materials including industrial fabrics, marine canvas, boat covers, awnings, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #1 grommets and spur washers ensuring installation runs smoothly and efficiently.

  • Material: Marine Grade Stainless Steel
  • Grommet (inches):
    • Hole Size: 13/32"
    • Flange Diameter: .790"
    • Length Under Flange: .205"
    • Metal Thickness: .016"
  • Washer (inches):
    • Inside Diameter: .455"
    • Outside Diameter: .790"
    • Metal Thickness: .016"
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
  • Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
