#0L ROLLED RIM GROMMET and SPUR WASHER MARINE GRADE STAINLESS (0LRRGSWSSM)

SKU: X-0LRRGSWSSM
$22.00 to $594.30
(0) No Reviews yet

Details

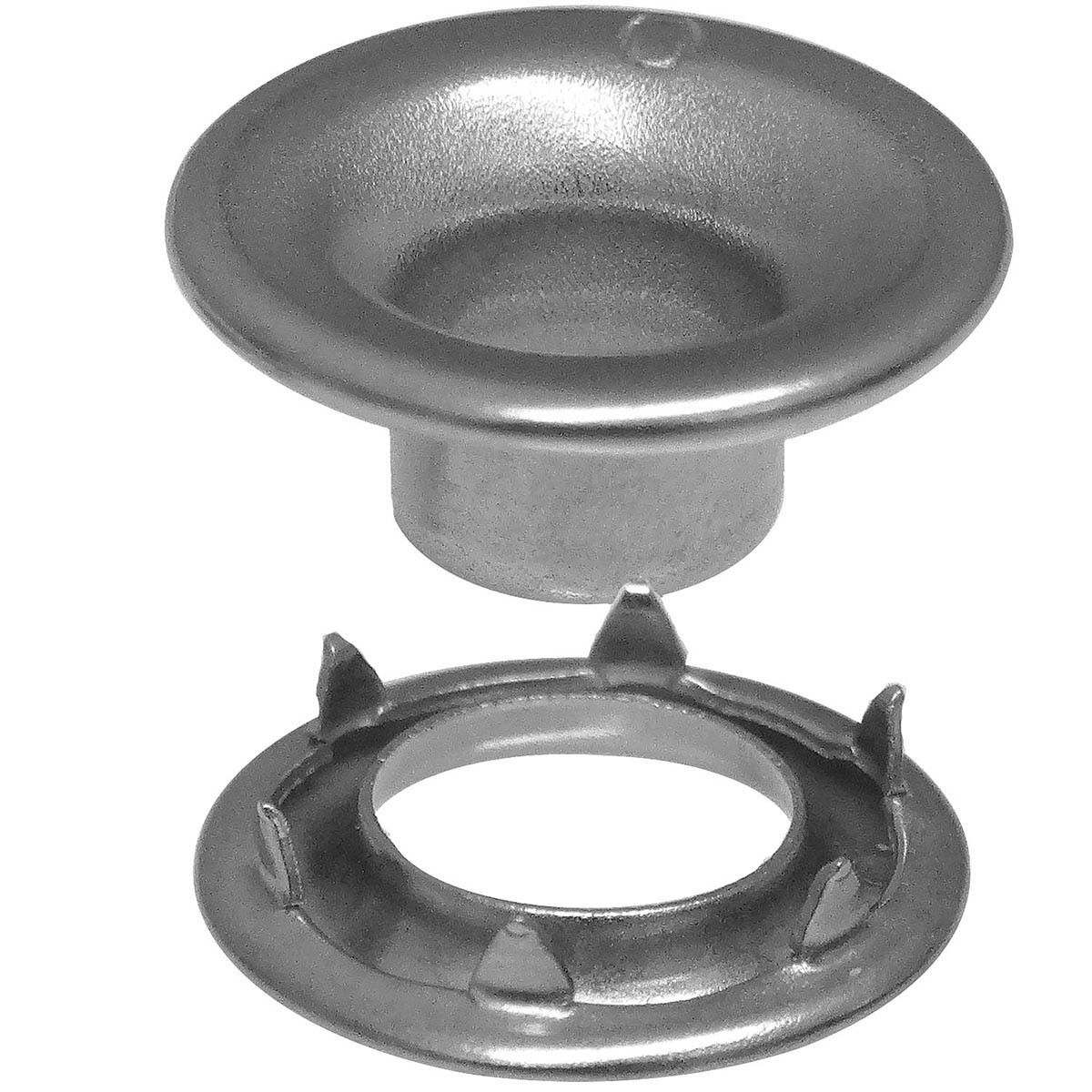

Stimpson’s #0L stainless steel long neck grommet and spur washer offers the greatest strength of setting . The marine grade #0L grommet features a hole size of 9/32”, a length under flange of .240”, and a metal thickness of .016”. The inside diameter of the plain washer is .345”, with an outside diameter of .645”, and a metal thickness of .016”. This multipurpose long-neck grommet and washer combination can be used in a variety of materials including industrial fabrics, canvas, leather, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #0L grommets and plain washers ensuring installation runs smoothly and efficiently.

  • Material:  Marine Grade Stainless Steel
  • Grommet (inches):
    • Hole Size: 9/32"
    • Flange Diameter: .670"
    • Length Under Flange: .240"
    • Metal Thickness: .016"
  • Washer (inches):
    • Inside Diameter: .345"
    • Outside Diameter: .645"
    • Metal Thickness: .016"
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
  • Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
