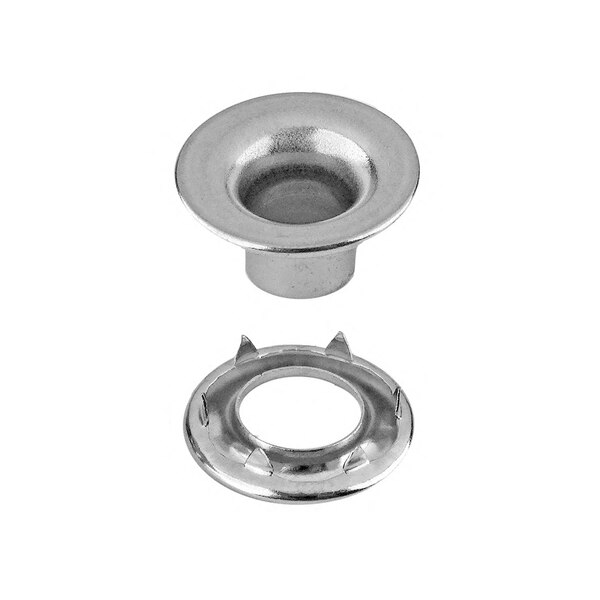

#0XL ROLLED RIM GROMMET and SPUR WASHER PRO SERIES 305 STAINLESS STEEL (0XLRRGSWSSPRO)

Stimpson’s #0XL Pro Series 305 stainless steel rolled rim grommet and spur washer offers the greatest strength of setting for a variety of applications. It has the same dimensions as our #0 and #0L sizes except with a longer barrel. The #0XL rolled rim grommet features a hole size of 9/32”, a length under flange of .300”, and a metal thickness of .016”. The inside diameter of the spur washer is .345”, with an outside diameter of .645”, and a metal thickness of .016”. Stimpson’s#0XL Pro Series rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. This multipurpose 305 alloy grommet and spur washer combination can be used in a variety of materials includingindustrial fabrics, marine canvas, boat covers, awnings, parachutes, safety harnesses, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #0L Pro Series rolled rim grommets and spur washers ensuring installation runs smoothly and efficiently.

• Material: 305 Stainless Steel
• Grommet (inches):
  • Hole Size: 9/32"
  • Flange Diameter: .670"
  • Length Under Flange: .300"
  • Metal Thickness: .016"
• Washer (inches):
  • Inside Diameter: .345"
  • Outside Diameter: .645"
  • Metal Thickness: .016"
• Industries: Industrial Fabrics, Parachutes, Safety Harnesses, all other heavy-duty applications.
