#00 SHEET METAL GROMMET and WASHER MARINE GRADE STAINLESS STEEL 304 (00GWSSM)

SKU: X-00GWSSM
$10.00 to $180.00
(0) No Reviews yet

Details

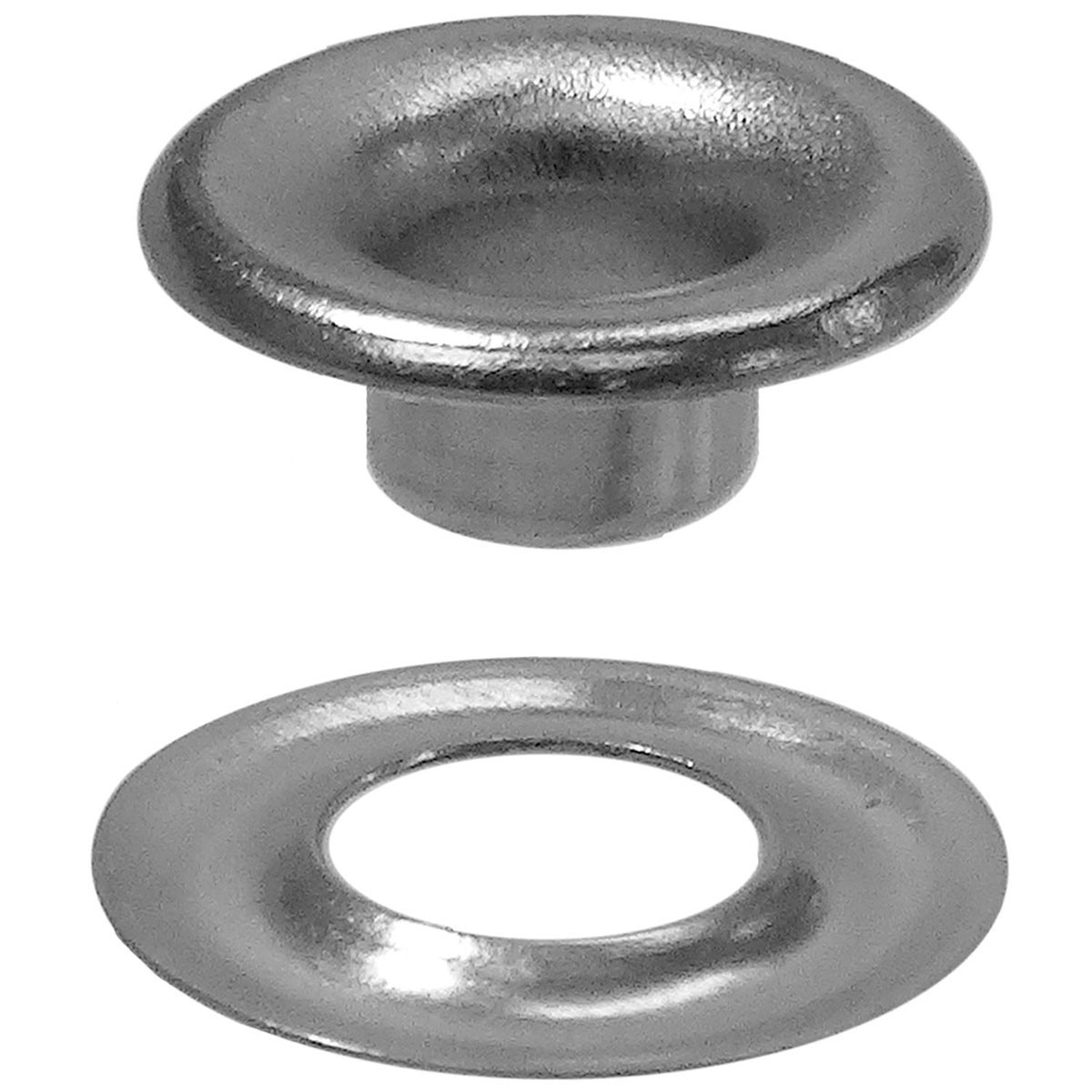

Stimpson’s #00 stainless steel grommet and plain washer provide basic hole reinforcement and versatility for a wide variety of applications. The marine grade #00 grommet features a hole size of 3/16”, a length under flange of .135”, and a metal thickness of .009”. The inside diameter of the plain washer is .218”, with an outside diameter of .460”, and a metal thickness of .009”. This multipurpose grommet and washer combination can be used in a variety of materials including industrial fabrics, canvas, leather, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #00 grommets and plain washers ensuring installation runs smoothly and efficiently.

  • Material: Marine Grade Stainless Steel
  • Grommet (inches):
    • Hole Size: 3/16"
    • Flange Diameter: .425"
    • Length Under Flange: .135"
    • Metal Thickness: .009"
  • Washer (inches):
    • Inside Diameter: .218"
    • Outside Diameter: .460"
    • Metal Thickness: .009"
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
  • Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
