#0 SHEET METAL GROMMET and WASHER MARINE GRADE STAINLESS STEEL 304 (0GWSSM)

SKU: X-0GWSSM
$12.00 to $225.00
(0) No Reviews yet

Details

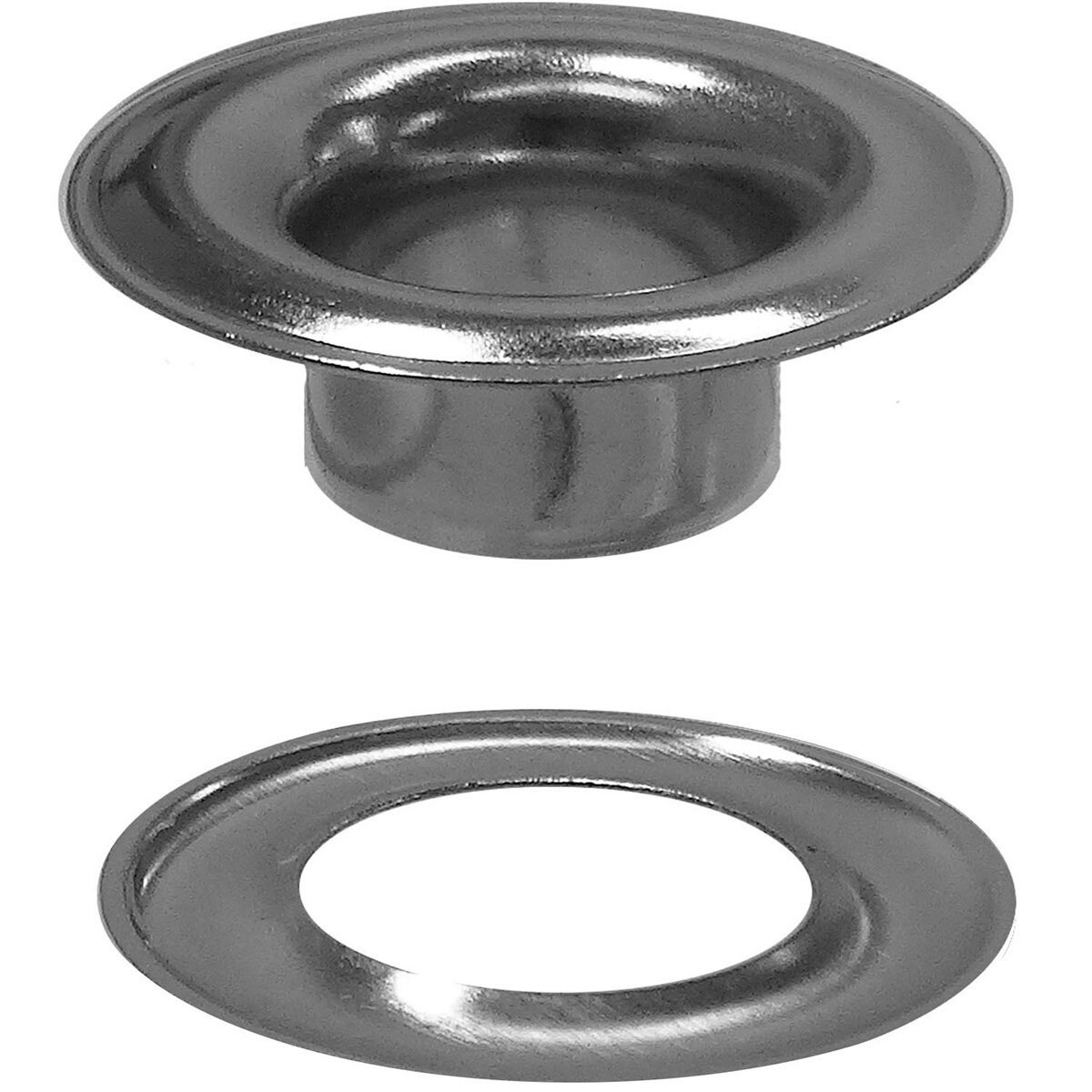

Stimpson’s #0 stainless steel grommet and plain washer provide basic hole reinforcement and versatility for a wide variety of applications. The marine grade #0 grommet features a hole size of 1/4”, a length under flange of .175”, and a metal thickness of .012”. The inside diameter of the plain washer is .289”, with an outside diameter of .546”, and a metal thickness of .010”. This multipurpose stainless steel grommet and washer combination can be used in a variety of materials including industrial fabrics, canvas, marine fabrics, leather, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #0 grommets and plain washers ensuring installation runs smoothly and efficiently.
  • Material: Marine Grade Stainless Steel
  • Grommet (inches):
    • Hole Size: 1/4"
    • Flange Diameter: .545"
    • Length Under Flange: .175"
    • Metal Thickness: .012"
  • Washer (inches):
    • Inside Diameter: .289"
    • Outside Diameter: .546"
    • Metal Thickness: .010"
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
  • Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
