#0 SHEET METAL GROMMET and WASHER BRASS (0GW)

SKU: X-0GWB
$66.52 to $830.16
(0)No Reviews yet

Details

Stimpson’s #0 brass grommet and plain washer provide basic hole reinforcement and versatility for a wide variety of applications. Available in three finishes, the #0 grommet features a hole size of 1/4”, a length under flange of .175”, and a metal thickness of .012”. The inside diameter of the plain washer is .289”, with an outside diameter of .546”, and a metal thickness of .010”. This multipurpose grommet and washer combination can be used in a variety of materials including industrial fabrics, canvas, leather and heavy-duty vinyl tarps, as long as a hole has been pre-punched in the material. Manual, semi-automatic and fully-automatic grommet setting machines easily set #0 grommets and plain washers ensuring installation runs smoothly and efficiently.

  • Material: Brass
  • Grommet (inches):
    • Hole Size: 1/4"
    • Flange Diameter: .545"
    • Length Under Flange: .175"
    • Metal Thickness: .012"
  • Washer (inches):
    • Inside Diameter: .289"
    • Outside Diameter: .546"
    • Metal Thickness: .010"

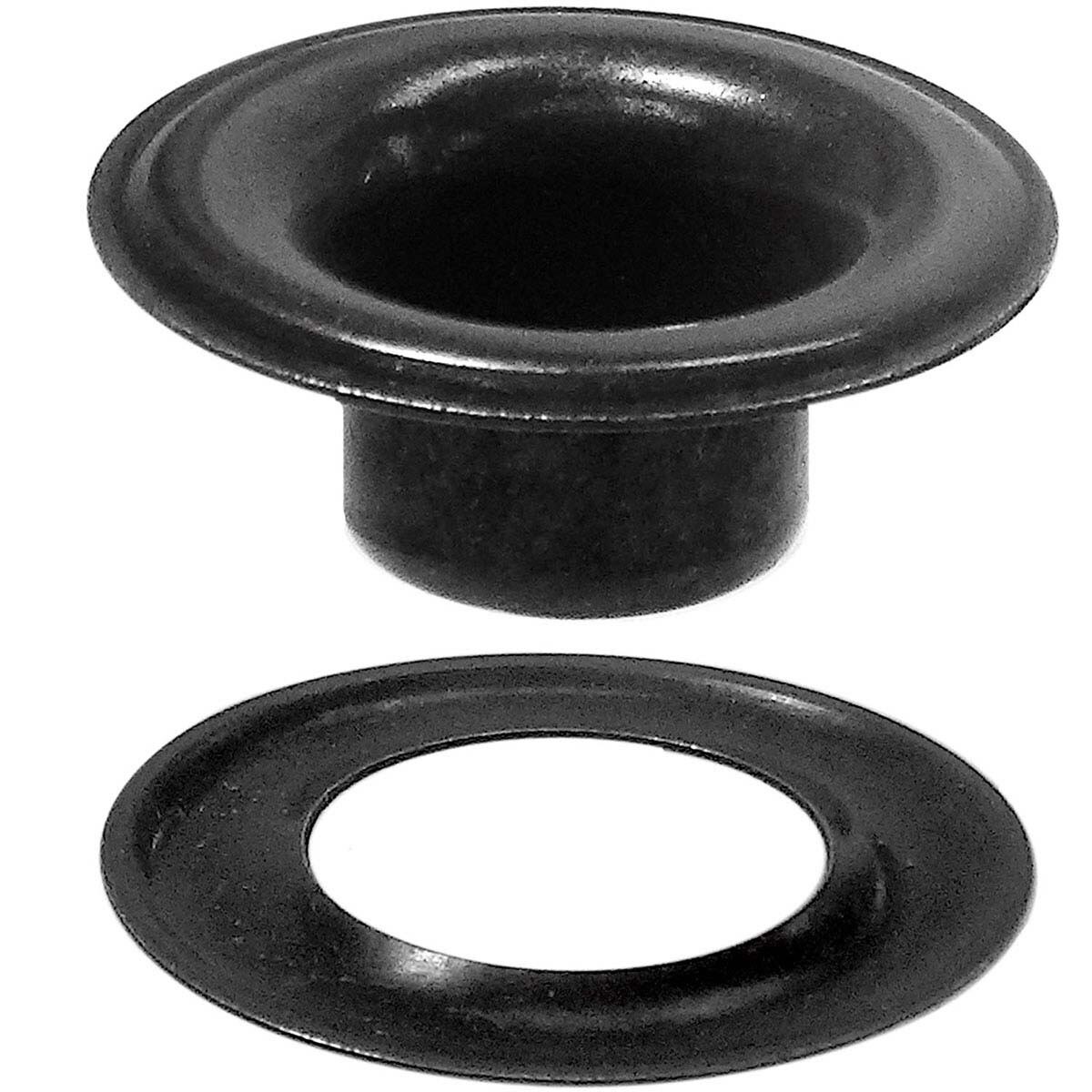

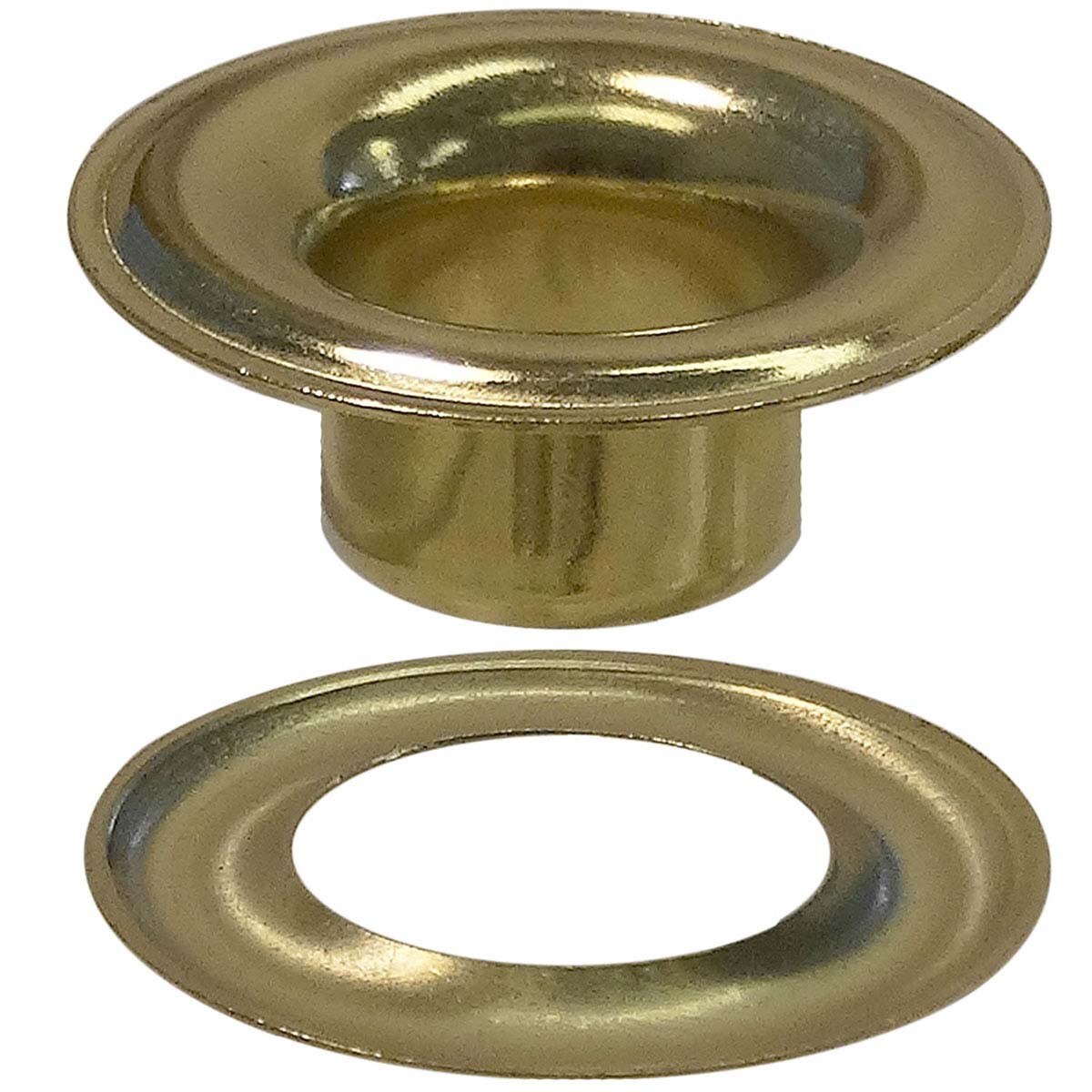

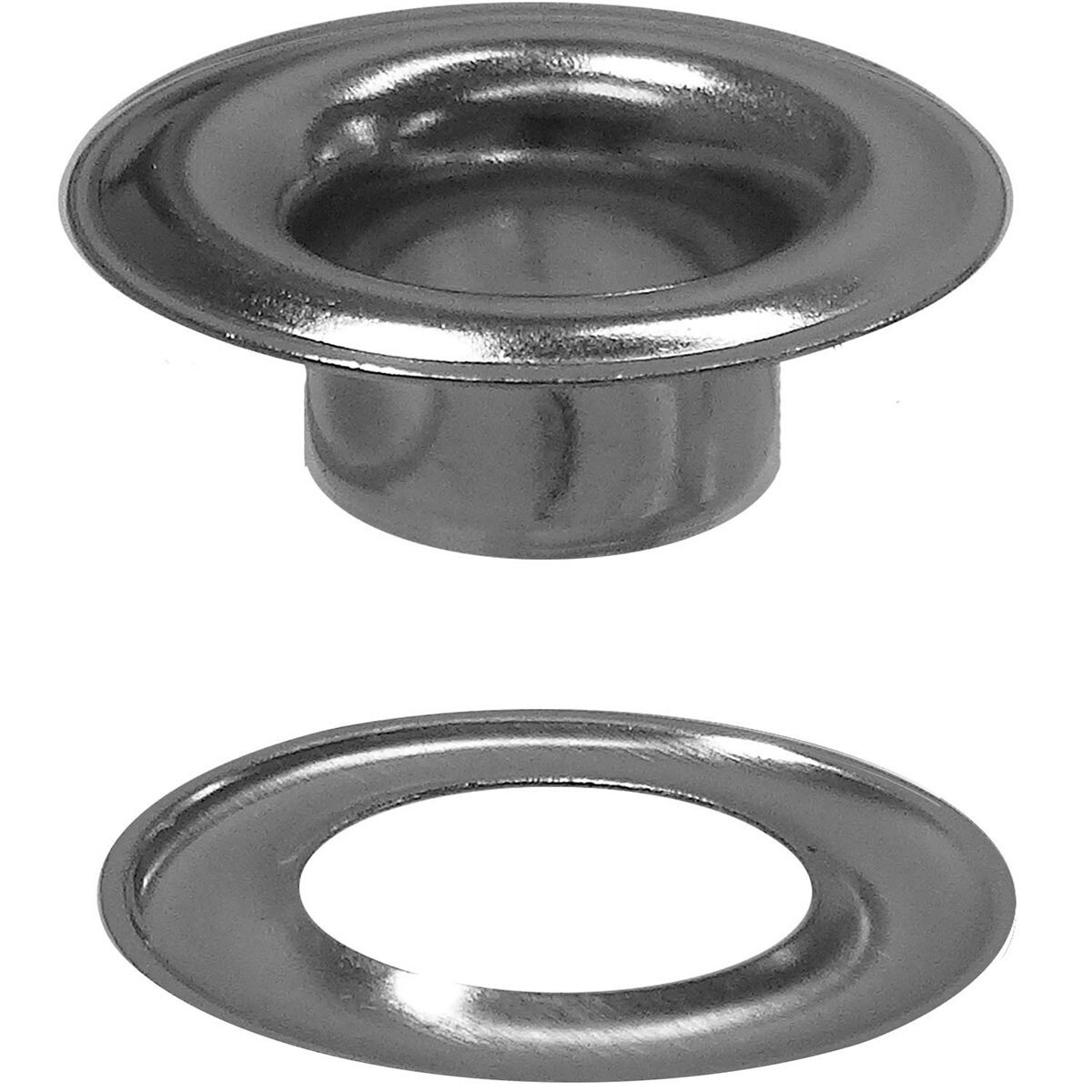

  • Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
This part conforms to the following military specifications: NASM16491, Type I, Class 1 (plain brass), Class 2 (Brass Nickel), Class 3 (Brass Dull Black), Size 0 and NASM20230B10 (Plain Brass)
