#0 SHEET METAL GROMMET and TEETH WASHER BRASS (0GTW)
Details
Stimpson’s #0 brass grommet and teeth washer locks on fabric and other woven materials for a secure setting. The teeth on the washer provide a firmer, tighter grasp while simultaneously preventing the grommet from spinning once set. Available in three finishes, the #0 features a hole size of 1/4”, a length under flange of .175” and a metal thickness of .012”. The inside diameter of the teeth washer is .290”, with an outside diameter of .570”, and a metal thickness of .0115”. This multipurpose grommet and teeth washer combination can be used in a variety of materials and applications including industrial fabrics, canvas, leather, heavy-duty tarps, drapery, curtains, and vinyl banners. In order to set plain grommets with teeth washers, pre-punched holes in material are required unless they are used in conjunction with equipment designed to cut a hole and set the grommet. Manual, semi-automatic and fully-automatic grommet setting machines easily set #0 grommets and teeth washers ensuring installation runs smoothly and efficiently.
- Material: Brass
- Grommet (inches):
- Hole Size: 1/4"
- Flange Diameter: .545"
- Length Under Flange: .175"
- Metal Thickness: .012"
- Washer (inches):
- Inside Diameter: .290"
- Outside Diameter: .570"
- Metal Thickness: .0115"

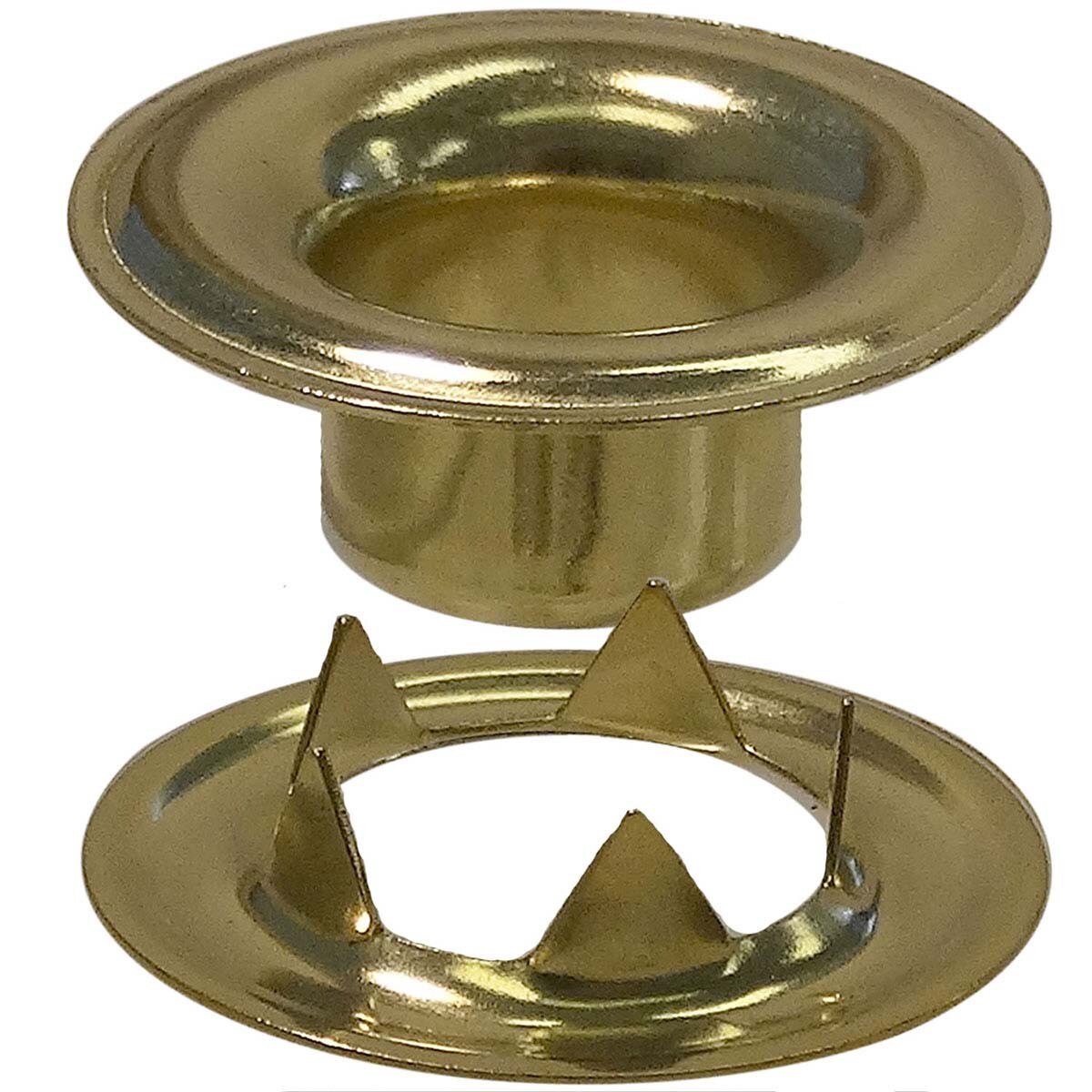

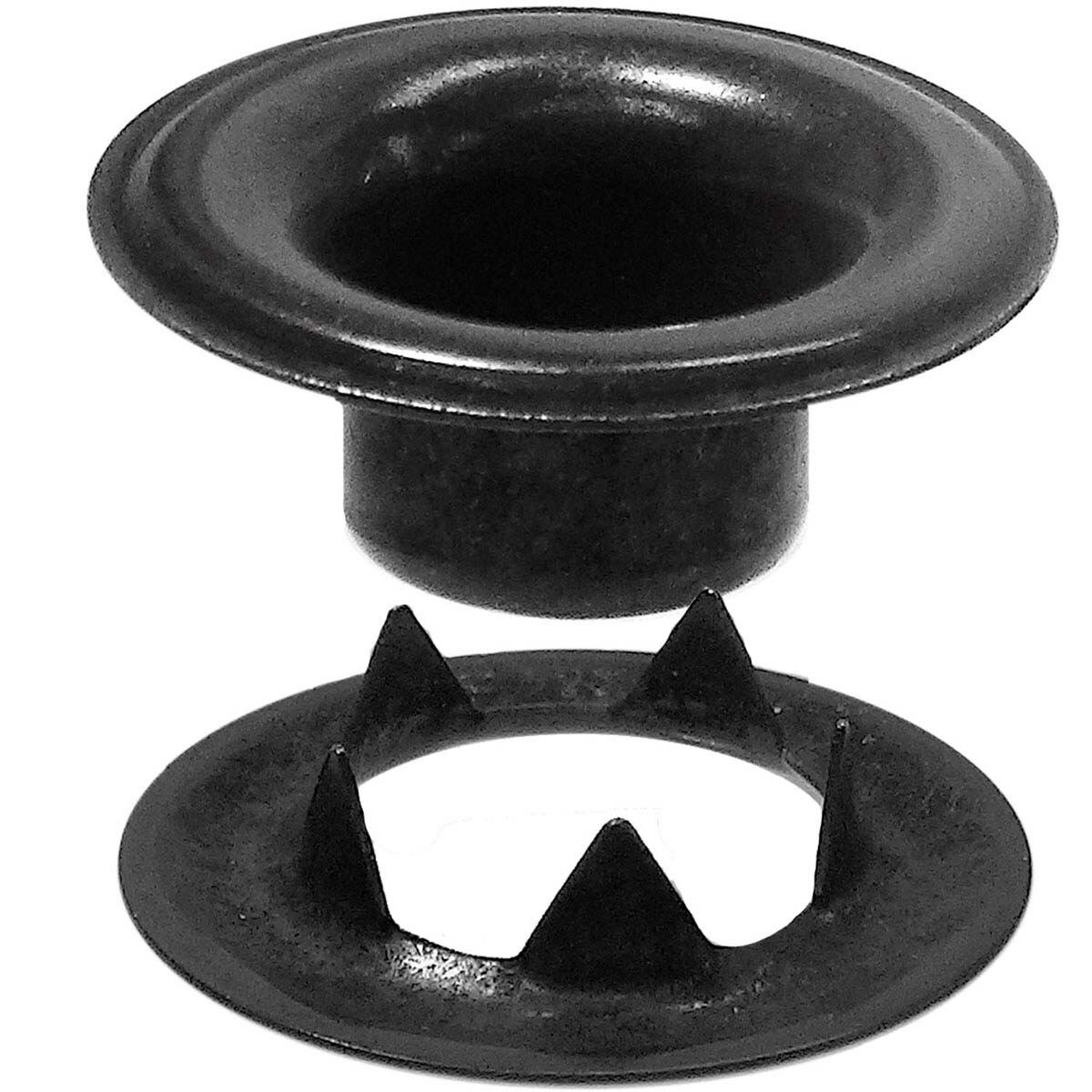

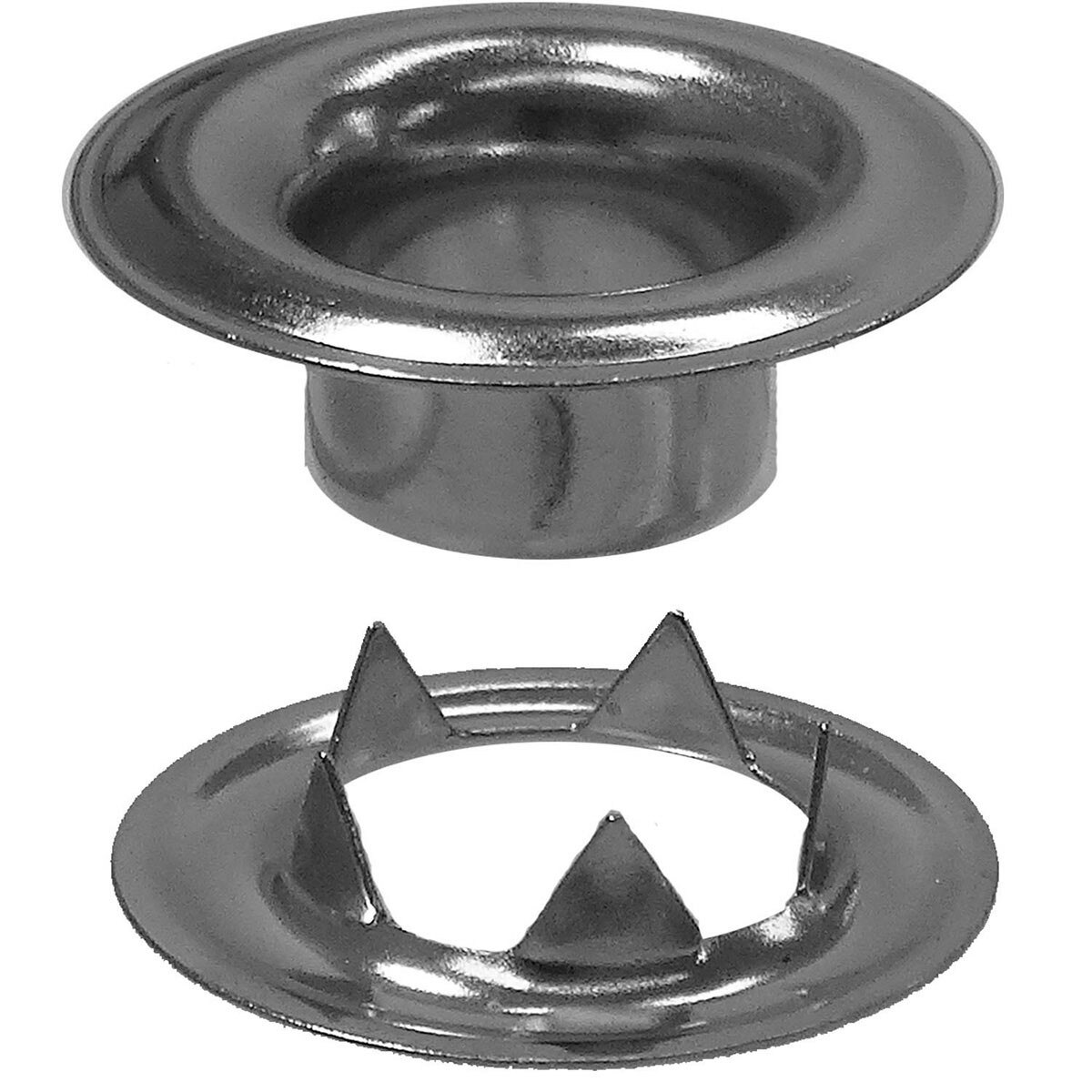

- Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
- Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
