#0 ROLLED RIM GROMMET and SPUR WASHER MARINE GRADE STAINLESS (0RRGSWSSM)

SKU: X-0RRGSWSSM
$20.00 to $588.00
(0) No Reviews yet

Details

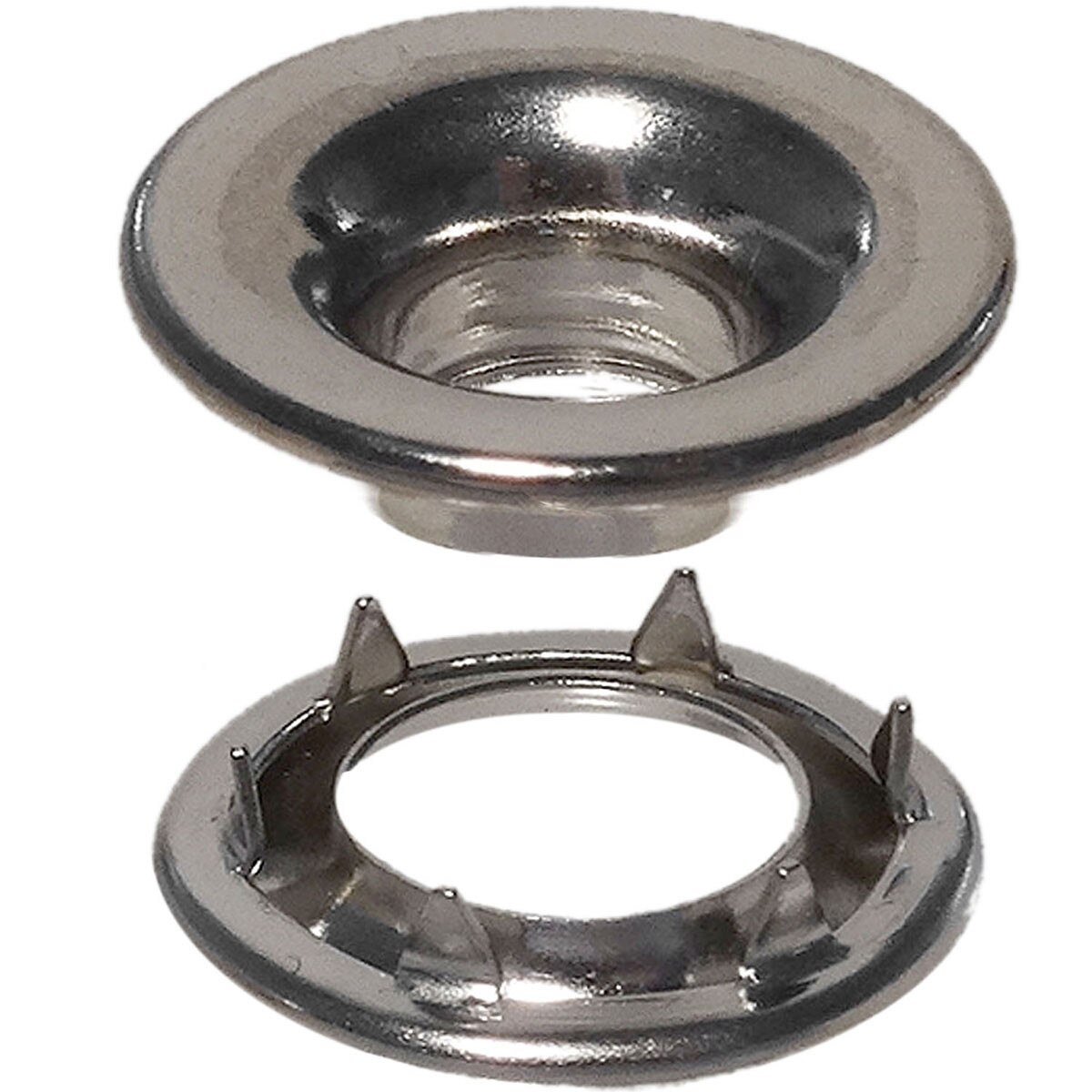

Stimpson’s #0 stainless steel rolled rim grommet and spur washer offers the greatest strength of setting for a variety of applications. The #0 rolled rim grommet features a hole size of 9/32”, a length under flange of .175”, and a metal thickness of .016”. The inside diameter of the spur washer is .345”, with an outside diameter of .645”, and a metal thickness of .016”. Stimpson’s #0 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. This multipurpose marine grade grommet and spur washer combination can be used in a variety of materials including industrial fabrics, marine canvas, boat covers, awnings, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #0 grommets and spur washers ensuring installation runs smoothly and efficiently.

  • Material: Marine Grade Stainless Steel
  • Grommet (inches):
    • Hole Size: 9/32"
    • Flange Diameter: .670"
    • Length Under Flange: .175"
    • Metal Thickness: .016"
  • Washer (inches):
    • Inside Diameter: .345"
    • Outside Diameter: .645"
    • Metal Thickness: .016"
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
  • Technical Note: Setting your stainless rolled rim grommet and spur washer is easy with Stimpson’s corresponding modular hand drive setting tool
