$62.27 to $1,391.53
(0)No Reviews yet

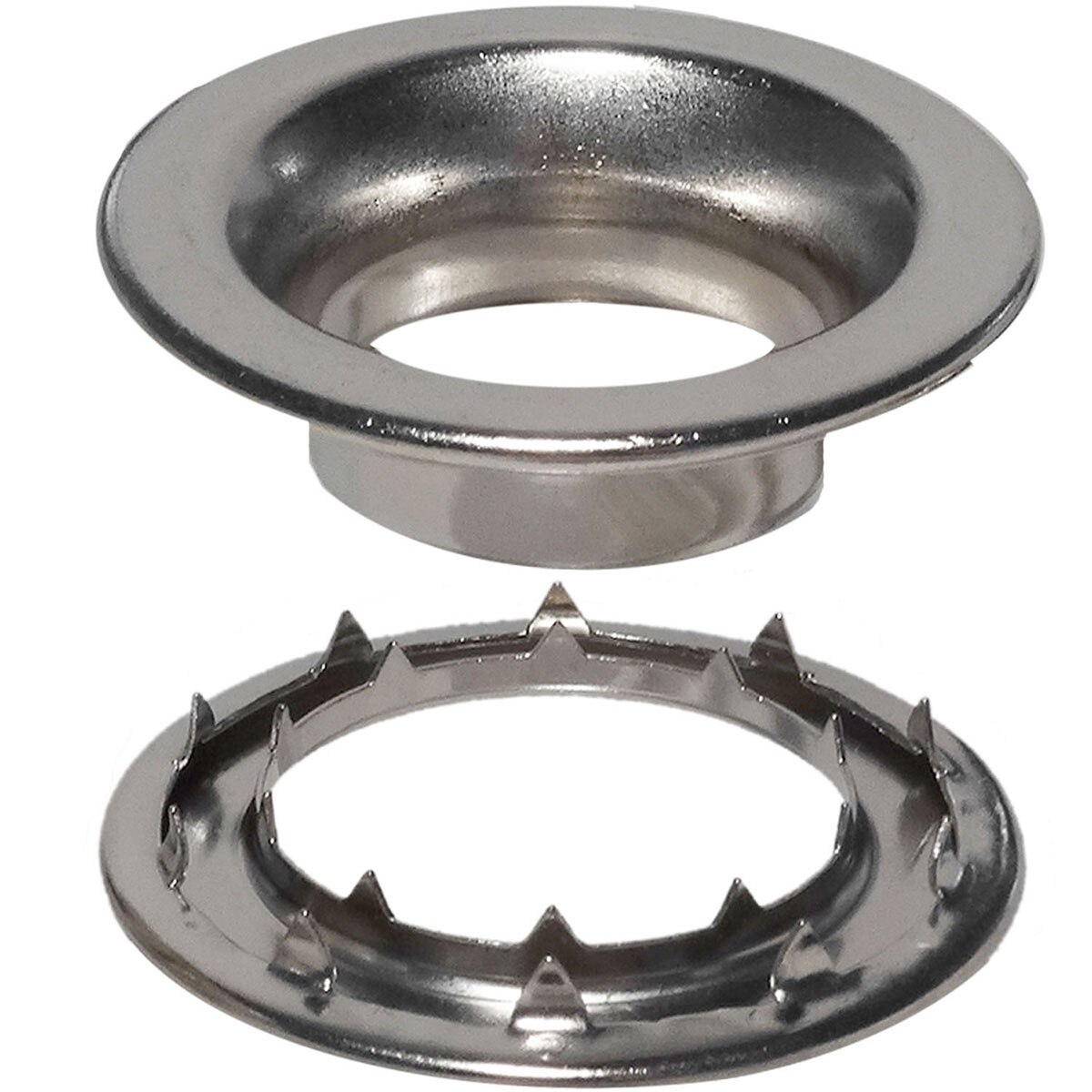

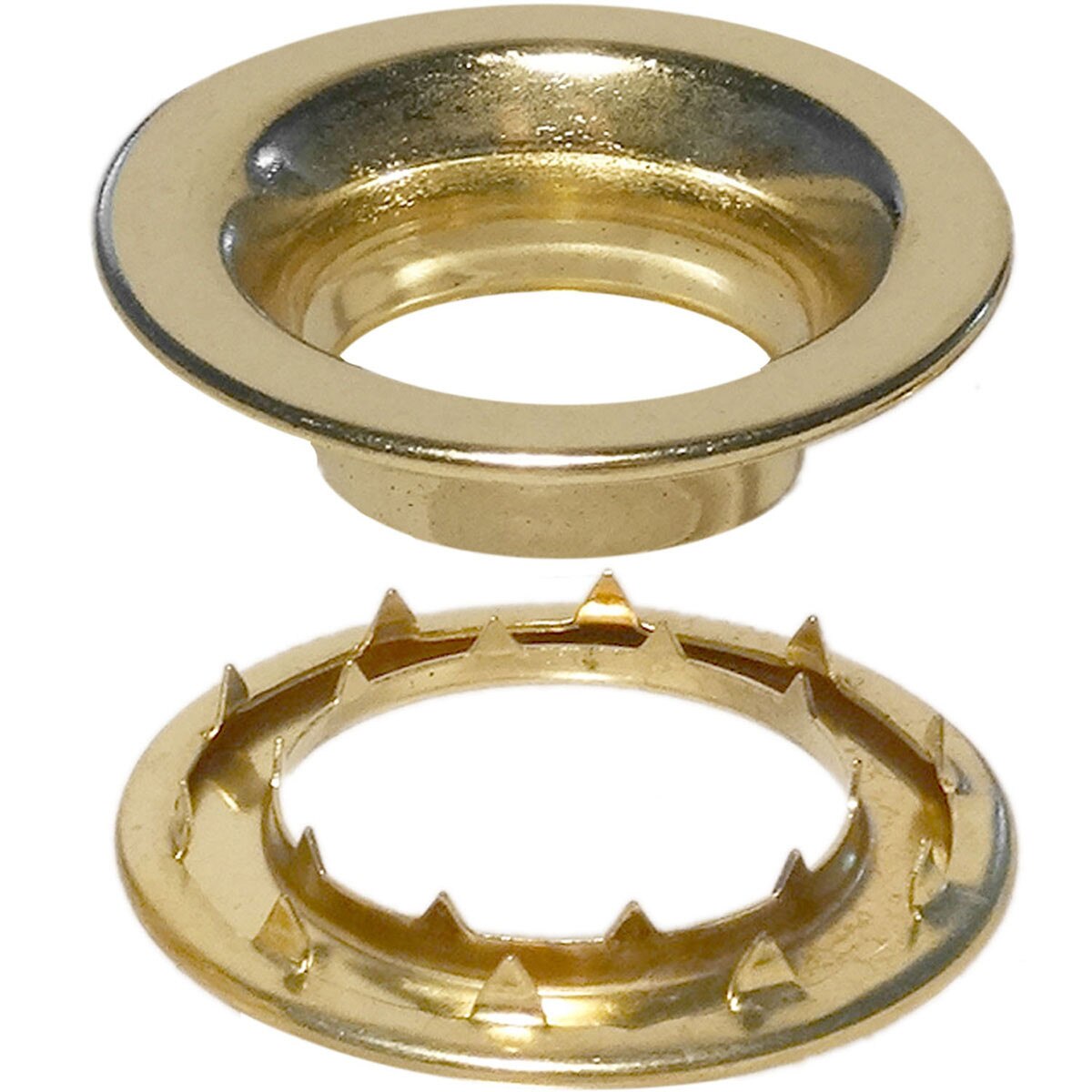

Stimpson’s #8 brass rolled rim grommet and spur washer offers the greatest strength of setting for a variety of applications. Available in three finishes, the #8 rolled rim grommet features a hole size of 1-3/32”, a length under flange of .465”, and a metal thickness of .025”. The inside diameter of the spur washer is 1.195”, with an outside diameter of 1.910”, and a metal thickness of .020”. Stimpson’s #8 rolled rim grommet features a stylish, smooth rolled edge while the circumference of the inside rim of the washer is lined with interlocking spurs that grasp the fabric or material resulting in a rugged and unyielding setting. This multipurpose grommet and washer combination can be used in a variety of materials including industrial fabrics, marine canvas, boat covers, awnings, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic, and fully-automatic grommet setting machines easily set #8 grommets and spur washers ensuring installation runs smoothly and efficiently.
  • Material: Brass
  • Grommet (inches):
    • Hole Size: 1-3/32"
    • Flange Diameter: 1.865"
    • Length Under Flange: .465"
    • Metal Thickness: .025"
  • Washer (inches):
    • Inside Diameter: 1.195"
    • Outside Diameter: 1.910"
    • Metal Thickness: .020"

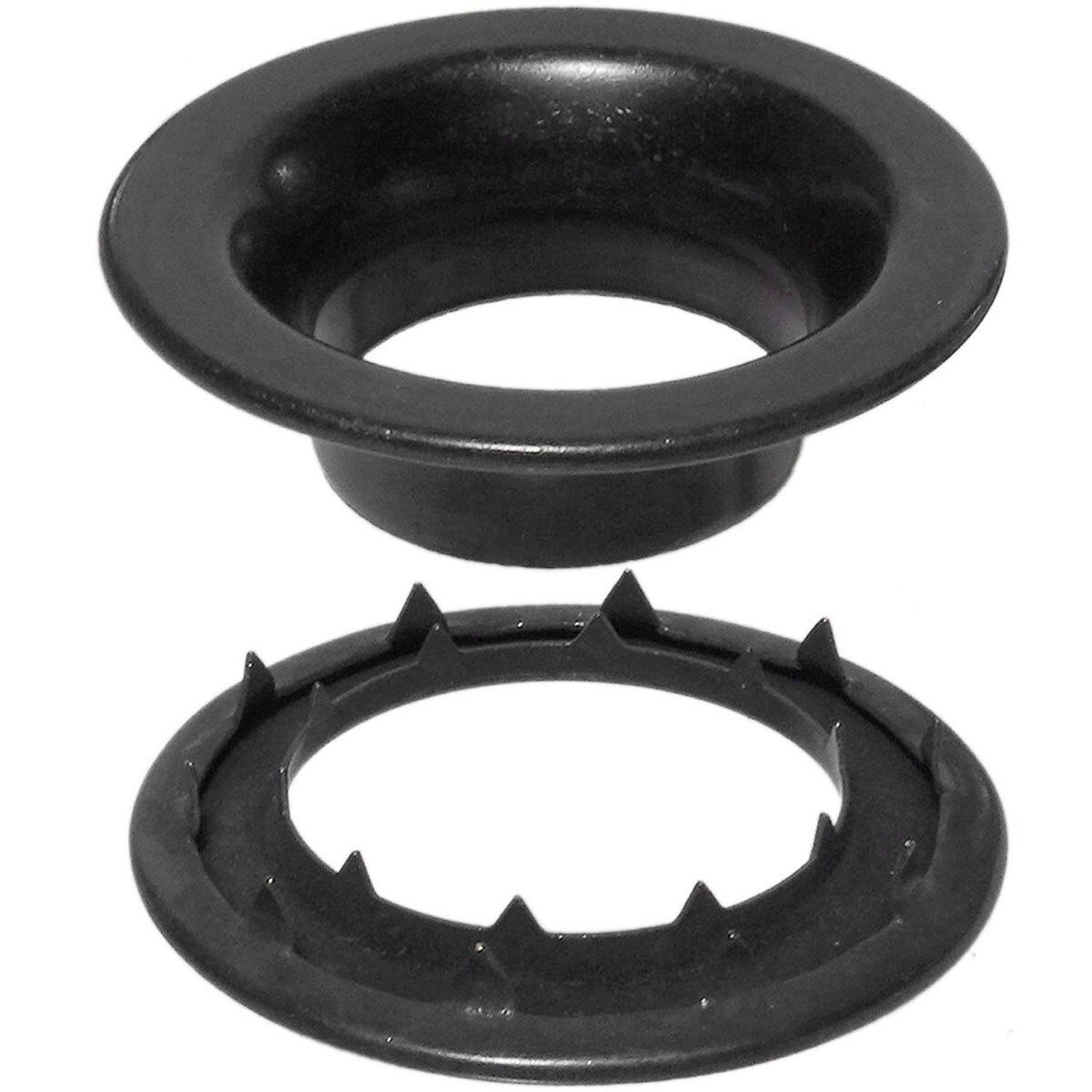

  • Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
  • Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
