Stimpson’s #5 brass grommet and plain washer provide basic hole reinforcement and versatility for a wide variety of applications. Available in three finishes, the #5 grommet features a hole size of 5/8”, a length under flange of .330”, and a metal thickness of .016”. The inside diameter of the plain washer is .740”, with an outside diameter of 1.205”, and a metal thickness of .0135”. This multipurpose brass grommet and washer combination can be used in a variety of materials including industrial fabrics, canvas, leather, signage, and heavy-duty vinyl tarps as long as a hole has been pre-punched in the material. Manual, semi-automatic and fully-automatic grommet setting machines easily set #5 grommets and plain washers ensuring installation runs smoothly and efficiently.
Hole Size: 5/8"
Flange Diameter: 1.220"
Length Under Flange: .330"
Metal Thickness: .016"
Inside Diameter: .740"
Outside Diameter: 1.205"
Metal Thickness: .0135"

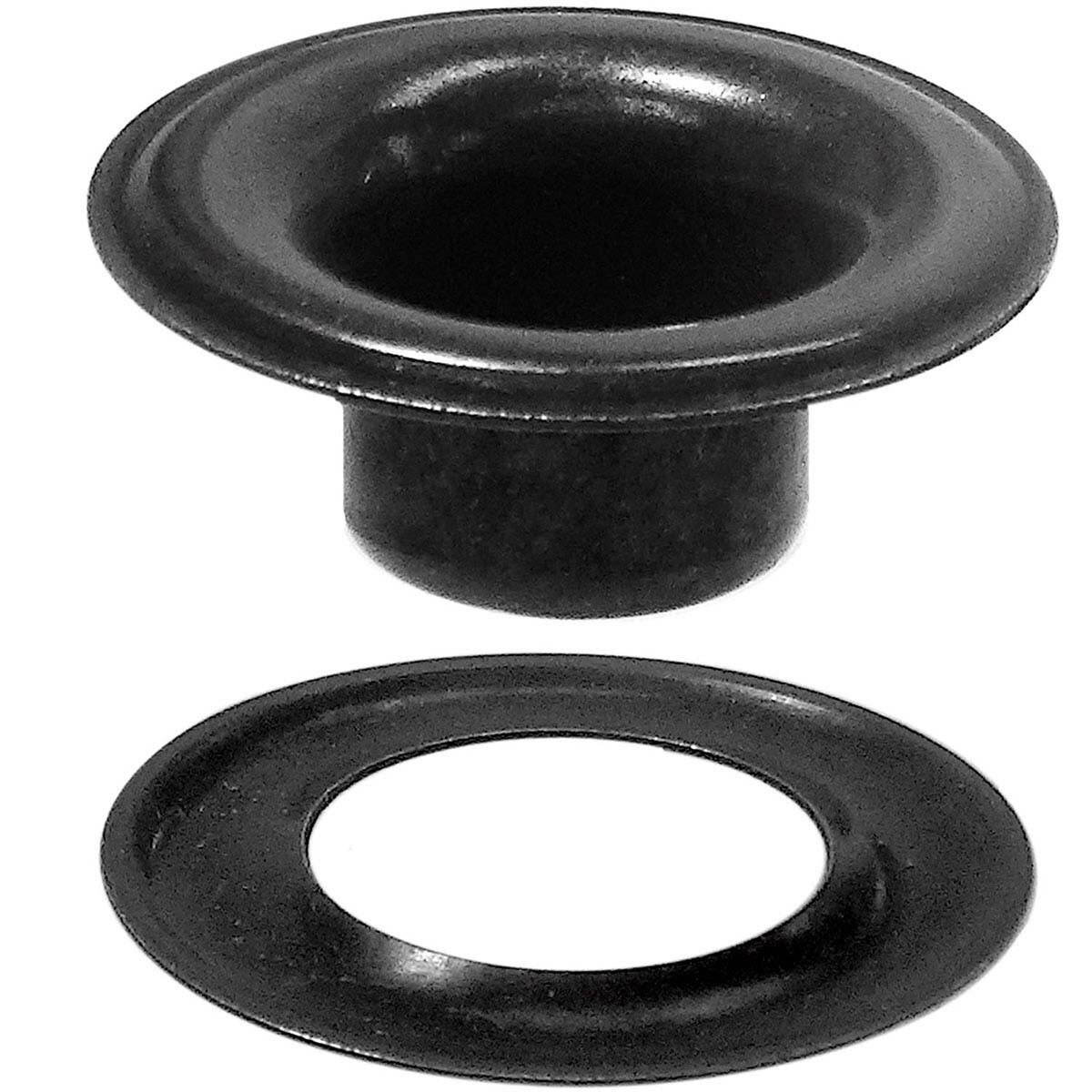

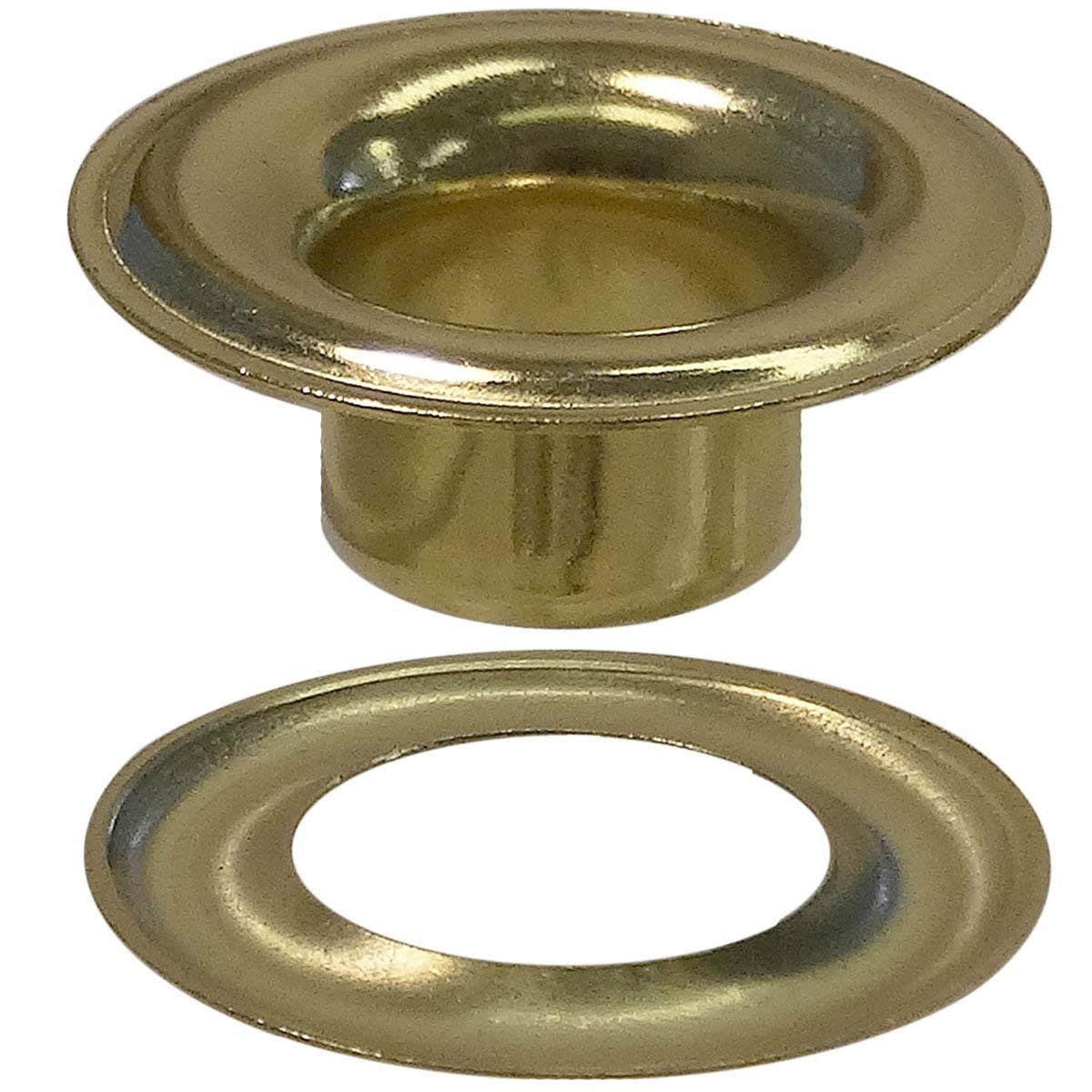

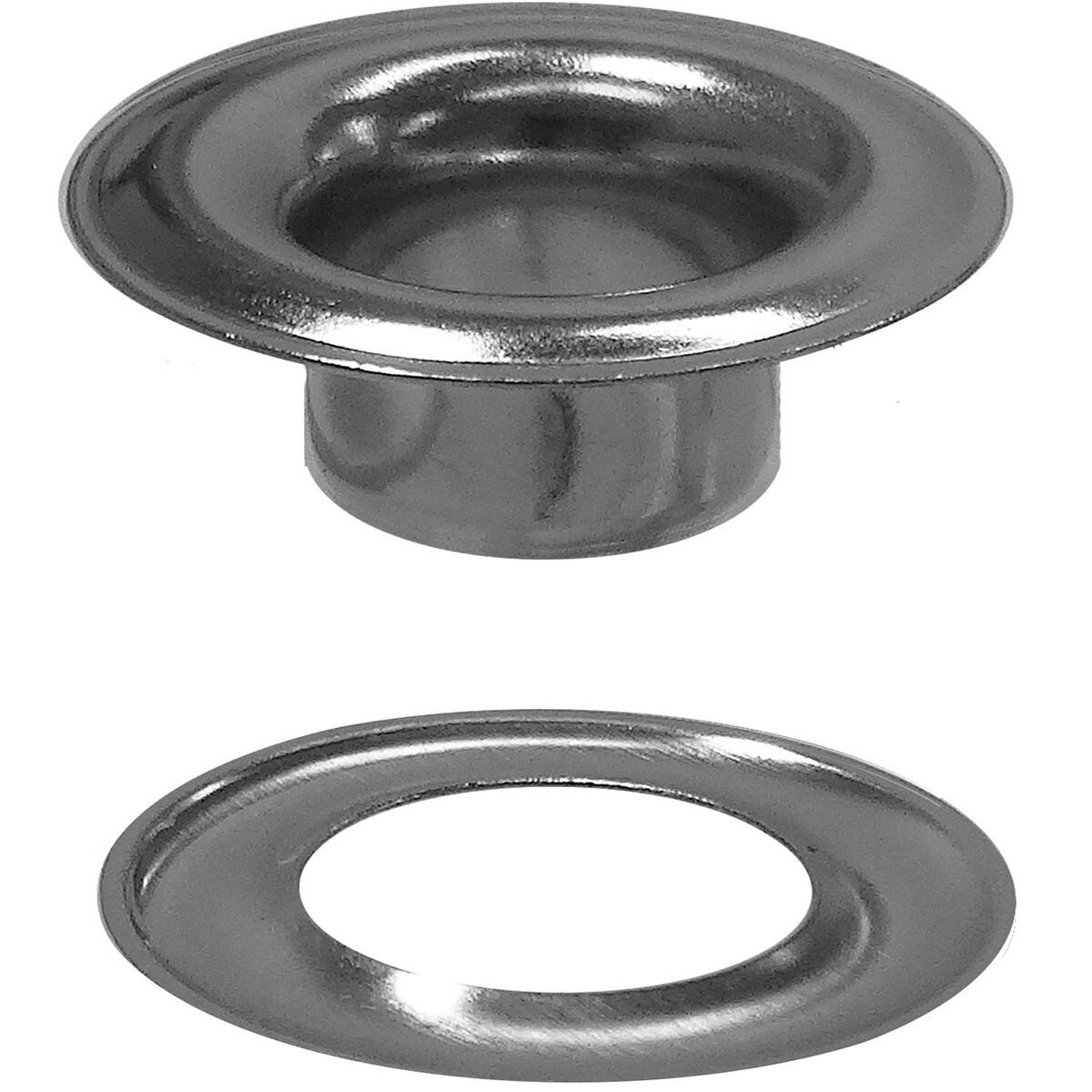

Finishes: Plain Brass, Dull Black Chemical Finish and Nickel Plated
Industries: Industrial Fabrics, Commercial Printing & Signage, Marine, and more
This part conforms to the following military specifications: NASM16491, Type I, Class 1 (Plain Brass), Class 2 (Brass Nickel), Class 3 (Brass Dull Black), Size 5 and NASM20230B5 (Plain Brass)
